DPI Print Quality: Stop Low-Res Reprints
100 DPI is too low for most sharp prints: it can work for large items seen from a distance, while 300 DPI is the usual target for close-viewed products such as invitations and cards. Always follow your printer's specification. Cmsmart Product Designer can set a minimum upload DPI and warn customers before a low-resolution image goes to print.
Cmsmart Ecommerce provides custom ecommerce and WooCommerce development services for web-to-print, product personalization, plugin support and API integration.
Cmsmart Product Designer Plugin Engineer
Builds and supports the Cmsmart Product Designer (NBDesigner) for WooCommerce.
Meet the team →
Top
In short
The invitations arrive, the customer opens the box, and the type is fuzzy. They uploaded a 100 DPI image saved from a phone screen; nobody checked it before it printed. Now you reprint at your own cost, refund, or argue, and the customer remembers your shop for the wrong reason.
DPI print quality is a business problem before a technical one. This guide covers 100 DPI vs 300 DPI in plain terms, then shows how the Cmsmart Product Designer (NBDesigner) on WooCommerce stops low-resolution artwork with upload rules and AI preflight before production, and what Cmsmart builds for stricter, product-specific checks.
What is DPI print quality, and how do 100 DPI vs 300 DPI compare?
DPI means dots per inch: how many printed dots fit along one inch (2.54 cm). More dots give a sharper print, but only if the image really has enough pixels. Cmsmart Product Designer lets you set the DPI you print at and the minimum DPI customers may upload, so the 100 DPI vs 300 DPI gap is decided before the order, not after.
A low-resolution image cannot be rescued by a better printer: the pixels are simply enlarged and edges look soft or jagged. The usual rule of thumb, confirmed by PrintNinja's file-setup guidelines (updated June 2026), which trace the 300 DPI figure to the 150 lines-per-inch halftone screen ruling set out in ISO 12647-2:2013:
100 DPI vs 300 DPI: at the same printed size, a 300 DPI image carries three times the pixels per inch, so edges and text stay crisp; at 100 DPI the same image looks soft. 200 DPI vs 300 DPI: 200 DPI can pass for large formats seen from a distance; for close-up print, ask for 300. General guidelines only; confirm colour profiles with your printer (see the International Color Consortium).
What do low-resolution files cost a print shop?
Low-resolution files cost a print shop three times: staff time to check and chase better files, material and press time for reprints, and refunds or lost repeat customers when a soft print ships. Cmsmart's approach is to move the check to the moment of upload and again before production.
Put your own number on it: orders per month × share with file problems × (cost per reprint or refund + staff minutes per file chase ÷ 60 × hourly cost).
What does a print shop with automatic quality checks look like?
In a print shop with automatic checks, the customer sees a low-resolution warning while designing, AI Preflight scans the order file for resolution, colour mode, bleed, fonts and transparency, and your team approves only files that pass or that they consciously accept. Cmsmart Product Designer 2.17.0 provides each of these steps.
Example scenario
A customer drags their logo onto a flyer at midnight. A notice says the image is too small for a sharp print, so they upload the original file instead. AI Preflight runs automatically on the order, flags a missing bleed; the operator auto-fixes, re-checks and approves. The flyers print once, sharp, and the customer orders again next month.
Want this on your store with your own rules? Talk to an ecommerce expert.
How does Cmsmart stop low-resolution artwork before it prints?

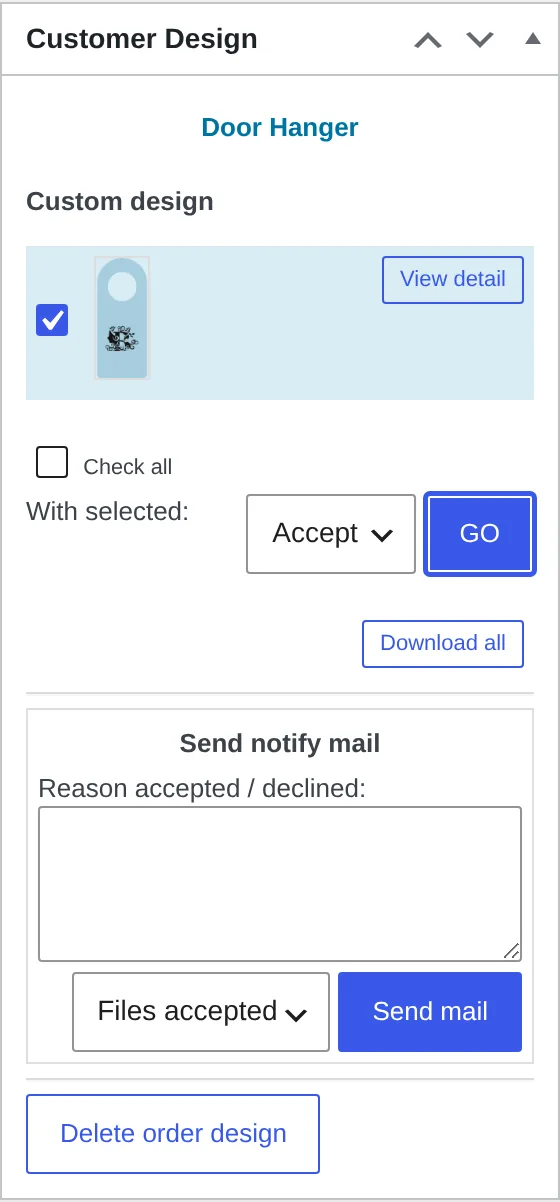

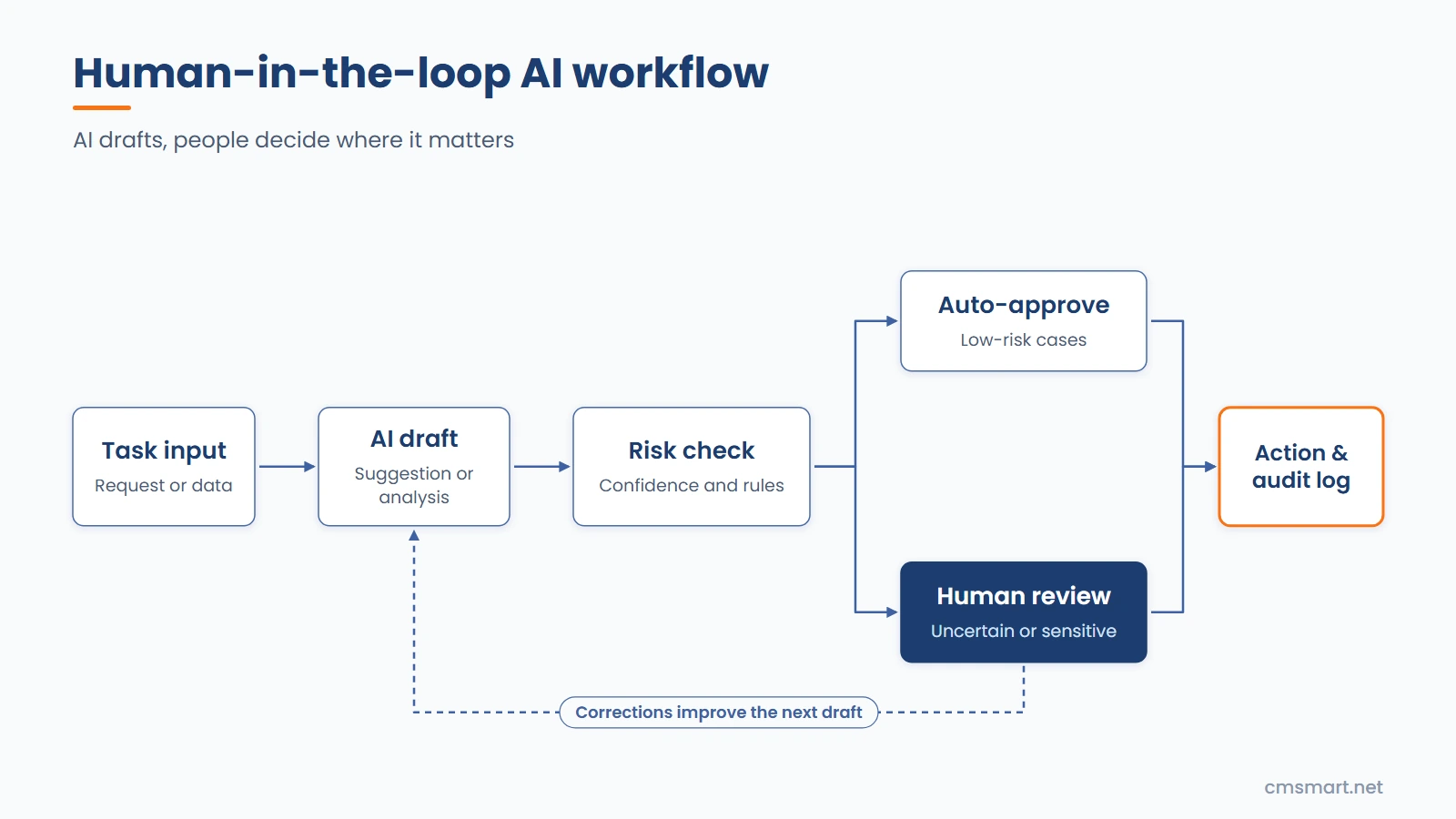

Cmsmart stops bad artwork in three layers: upload rules that block or warn on low DPI, AI Preflight in Cmsmart Cloud that scans order files and can auto-fix issues, and a human approval step in Cmsmart › Orders. AI drafts, people decide where it matters.
What is preflight? Preflight is the check a print file goes through before production: resolution, colour mode, bleed, fonts and transparency. Cmsmart's AI Preflight automates it and records the result on the order.

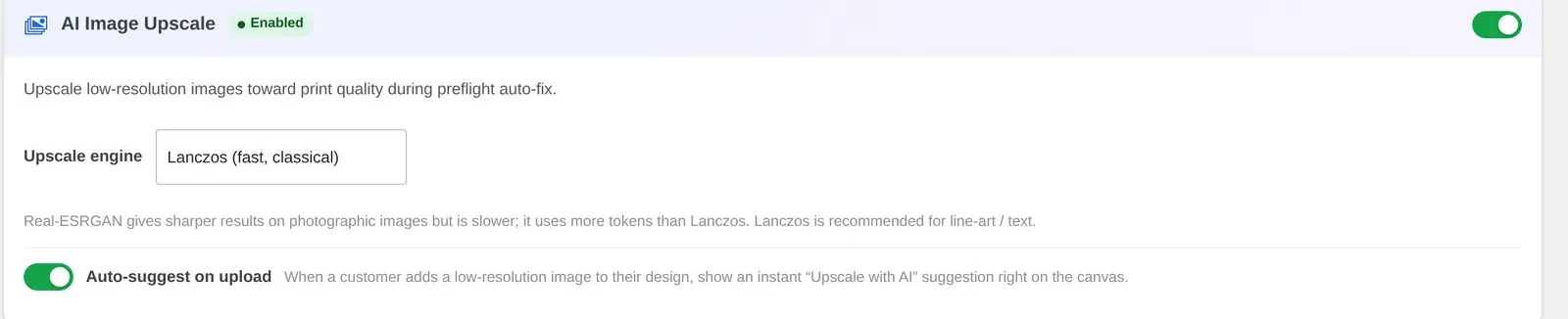

The upload warning sits one step earlier, in Cmsmart Cloud › AI Tools › AI Image Upscale: with Auto-suggest on upload on, an image under roughly 700 px — Cmsmart's low-resolution threshold — gets an instant “Upscale with AI” suggestion on the canvas, the same nudge AI Preflight repeats later on the order file. Since 2.17.0 it skips uploaded PDF layers, so a vector file is never swapped for an upscaled raster copy.

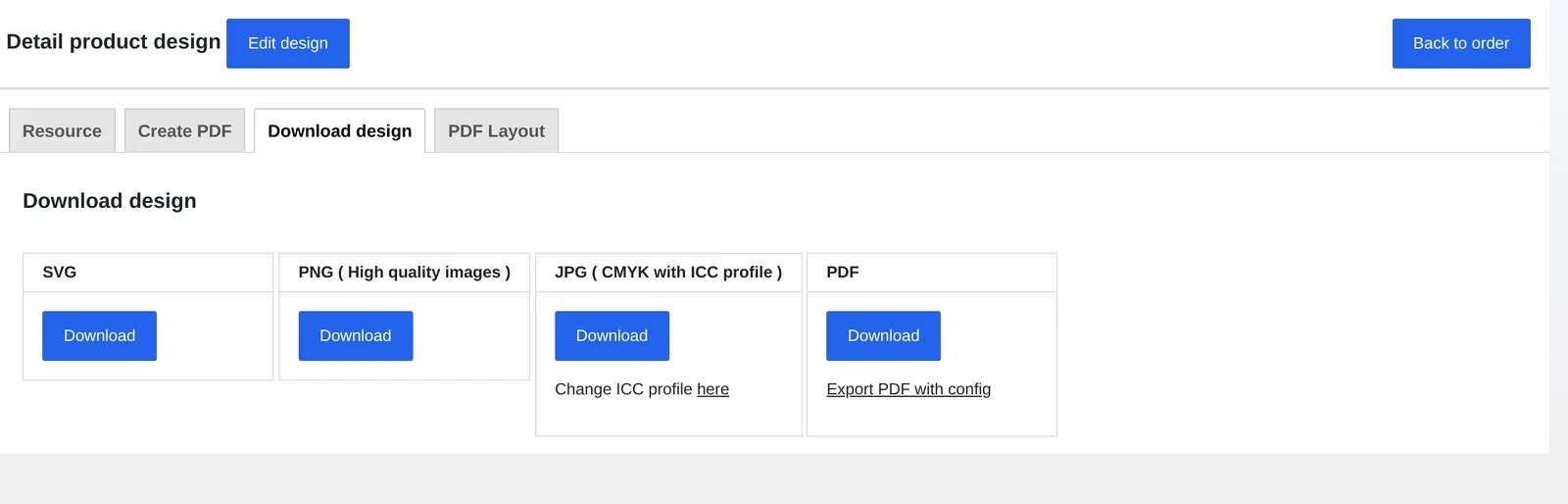

The resolution check is only half the job: once a design clears preflight, the order still needs production-ready files in the right colour space. The Download design tab already covers that today, no custom build required:
Cmsmart insight

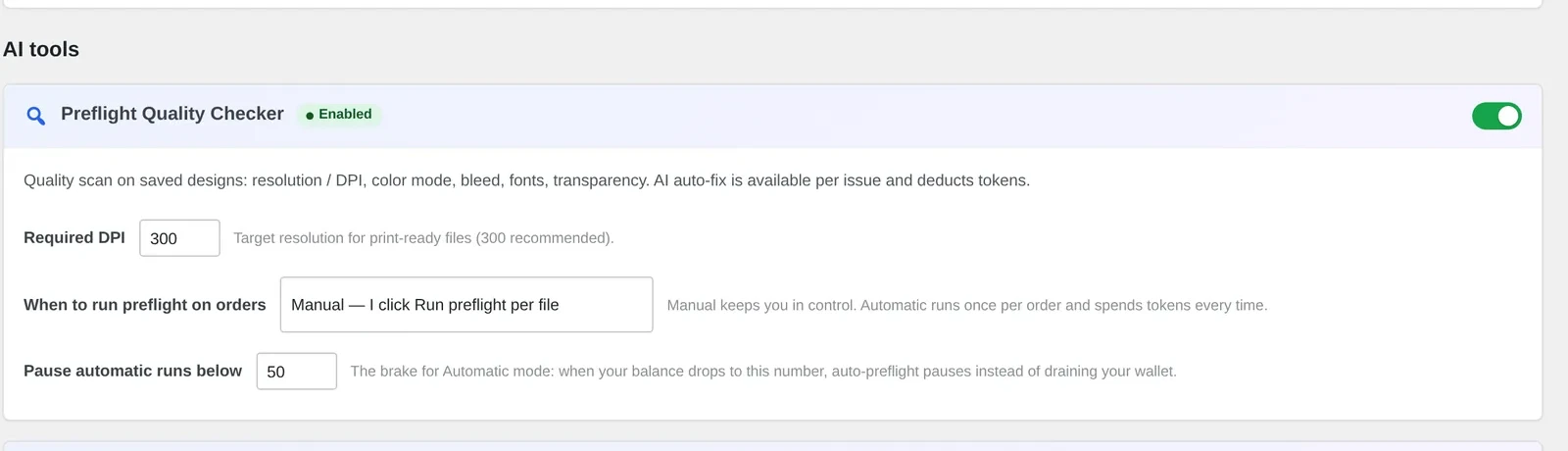

Start AI Preflight in manual mode on your highest-value products and read the reports for a few weeks before switching to automatic, which spends tokens on every order; set Pause automatic runs below as a brake on your balance.
What is the business value of preflight and DPI rules?

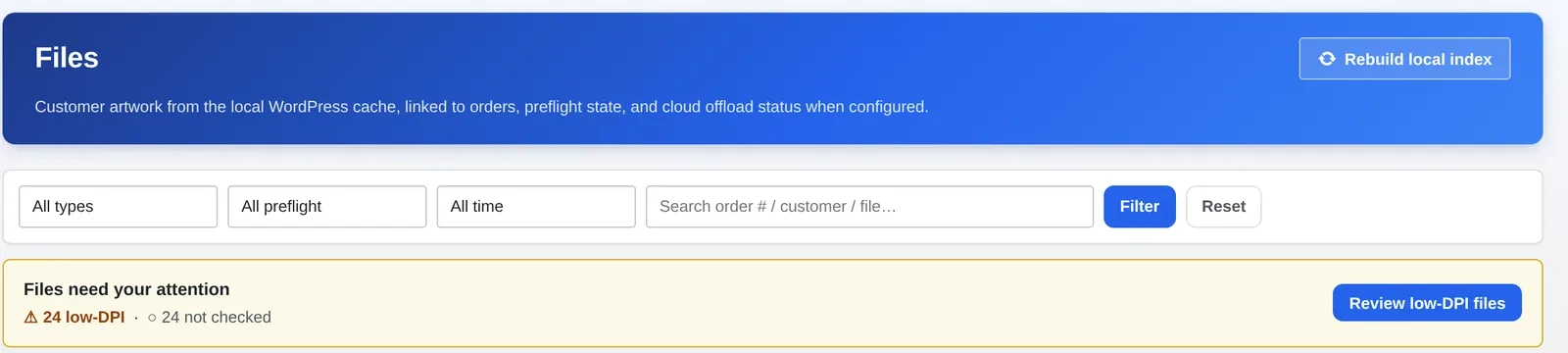

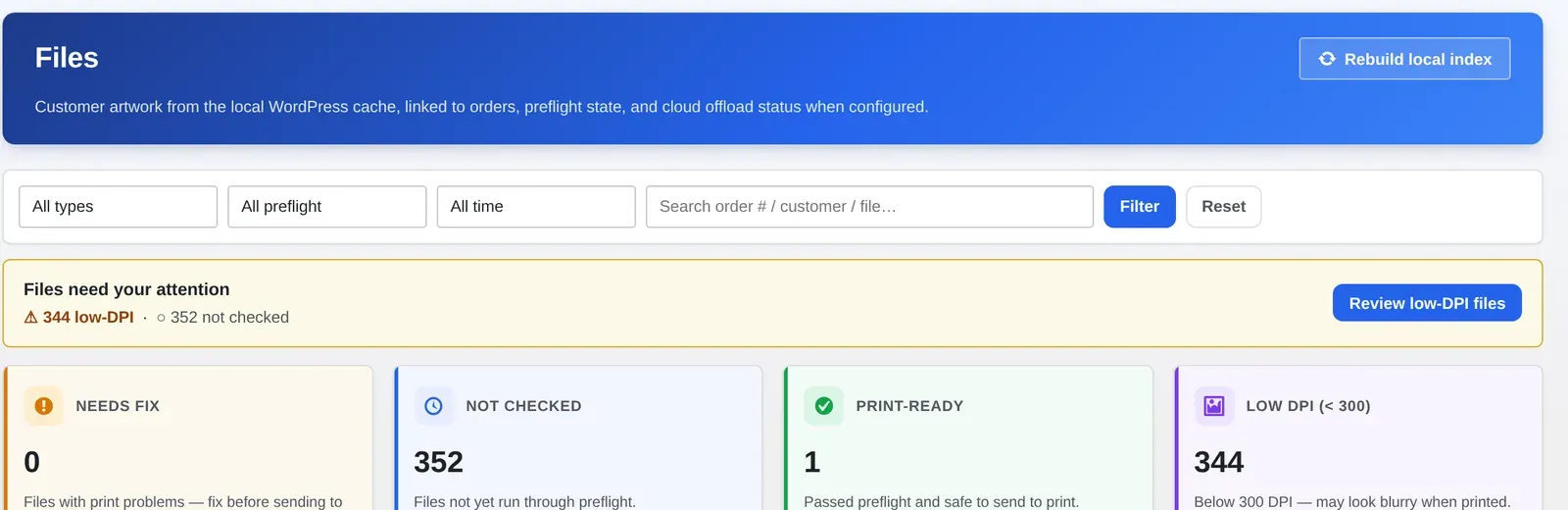

Preflight and DPI rules pay back by preventing reprints and refunds, and cutting manual file checks and hold time. Cmsmart Product Designer's own Files screen shows the low-DPI files it caught before production, so the checks are visible, not just assumed.
ROI worksheet. Monthly saving = reprints avoided × cost per reprint + refunds avoided × average refund + file checks avoided × minutes per check ÷ 60 × hourly cost. Subtract the AI Preflight token spend for the same month to get the net figure.
How do I set up DPI rules and AI Preflight in Cmsmart Product Designer?

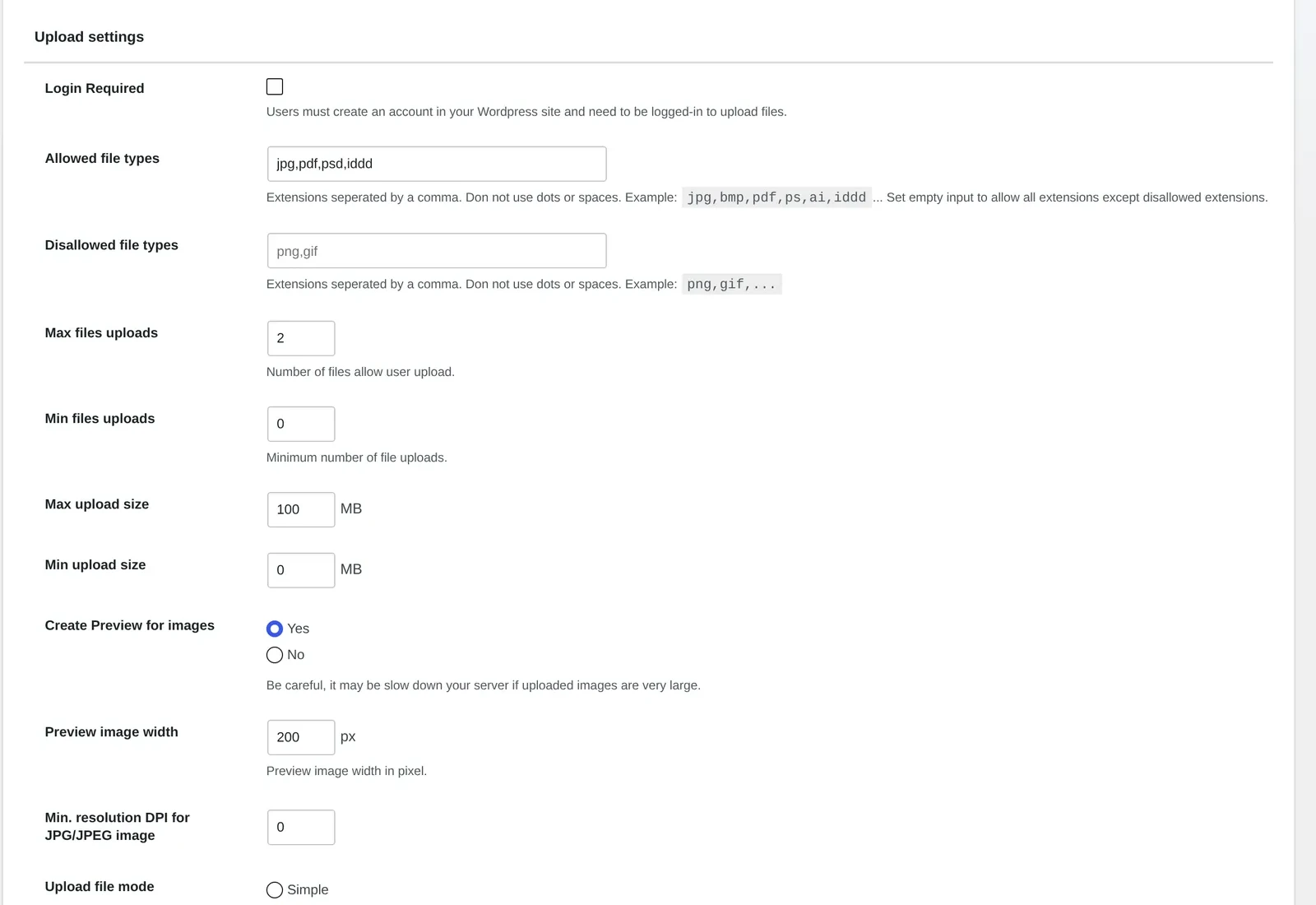

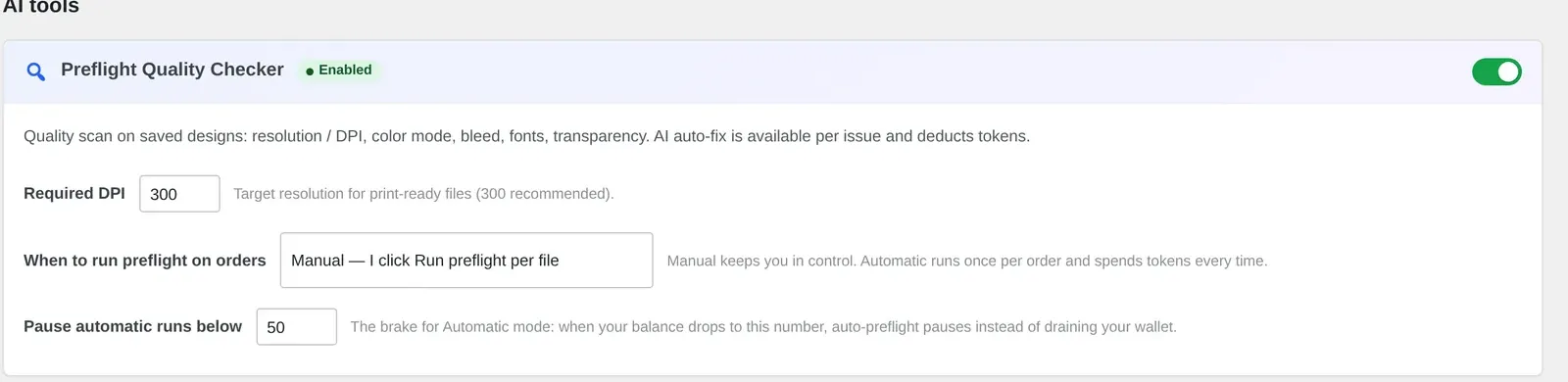

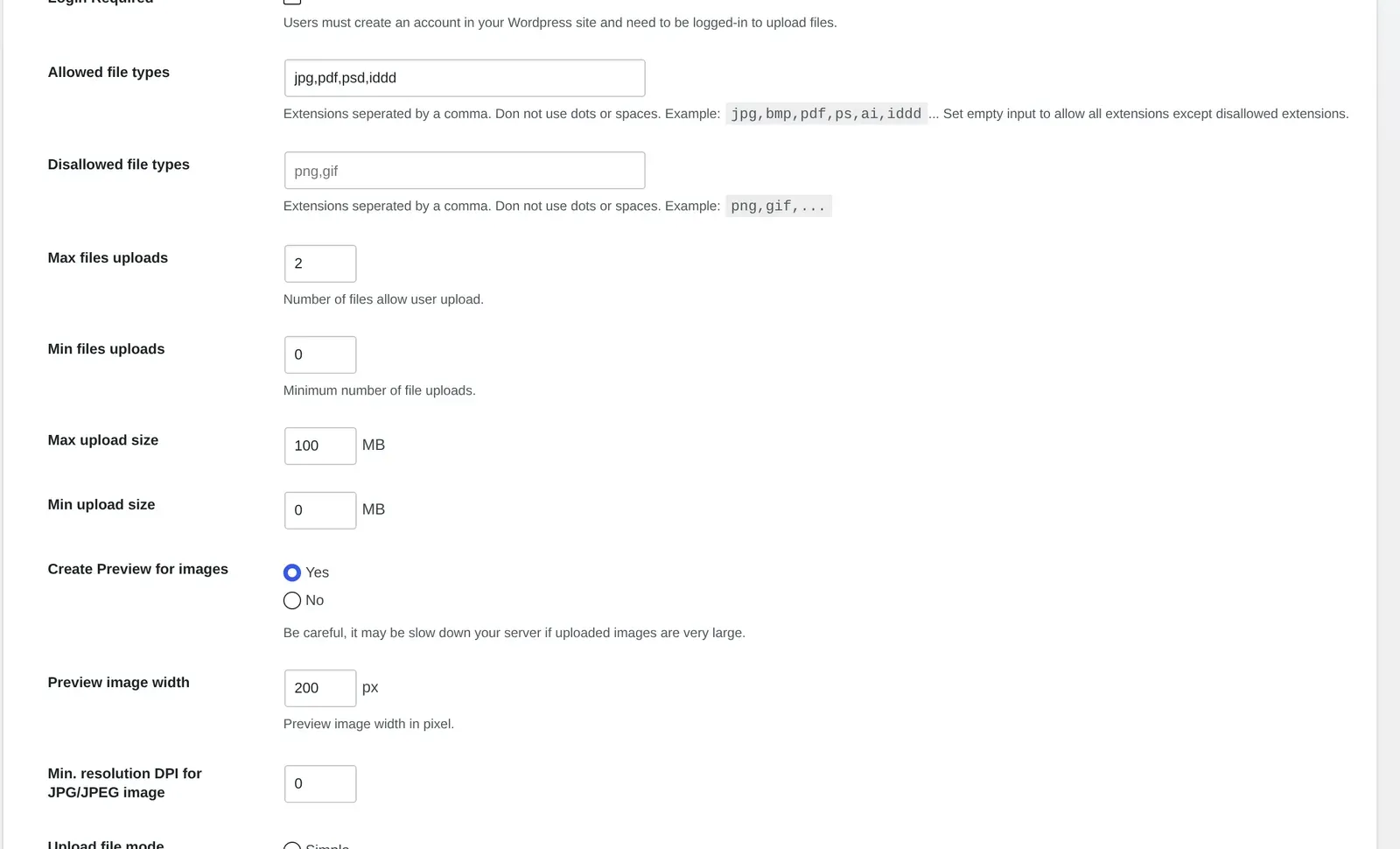

Set the output DPI globally and per product, add a minimum upload DPI with a low-resolution warning, then turn on AI Preflight in Cmsmart Cloud with a required DPI and run mode. These 2.17.0 settings take about one working session.

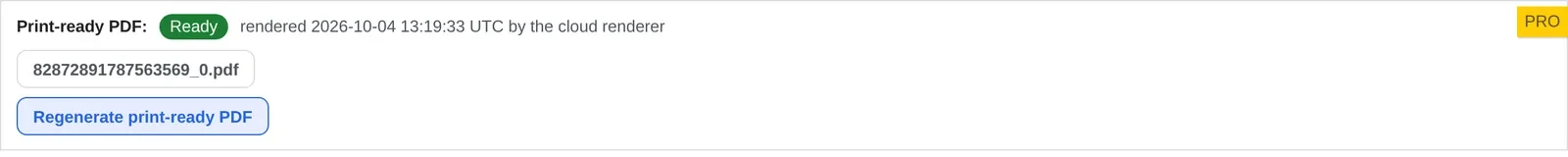

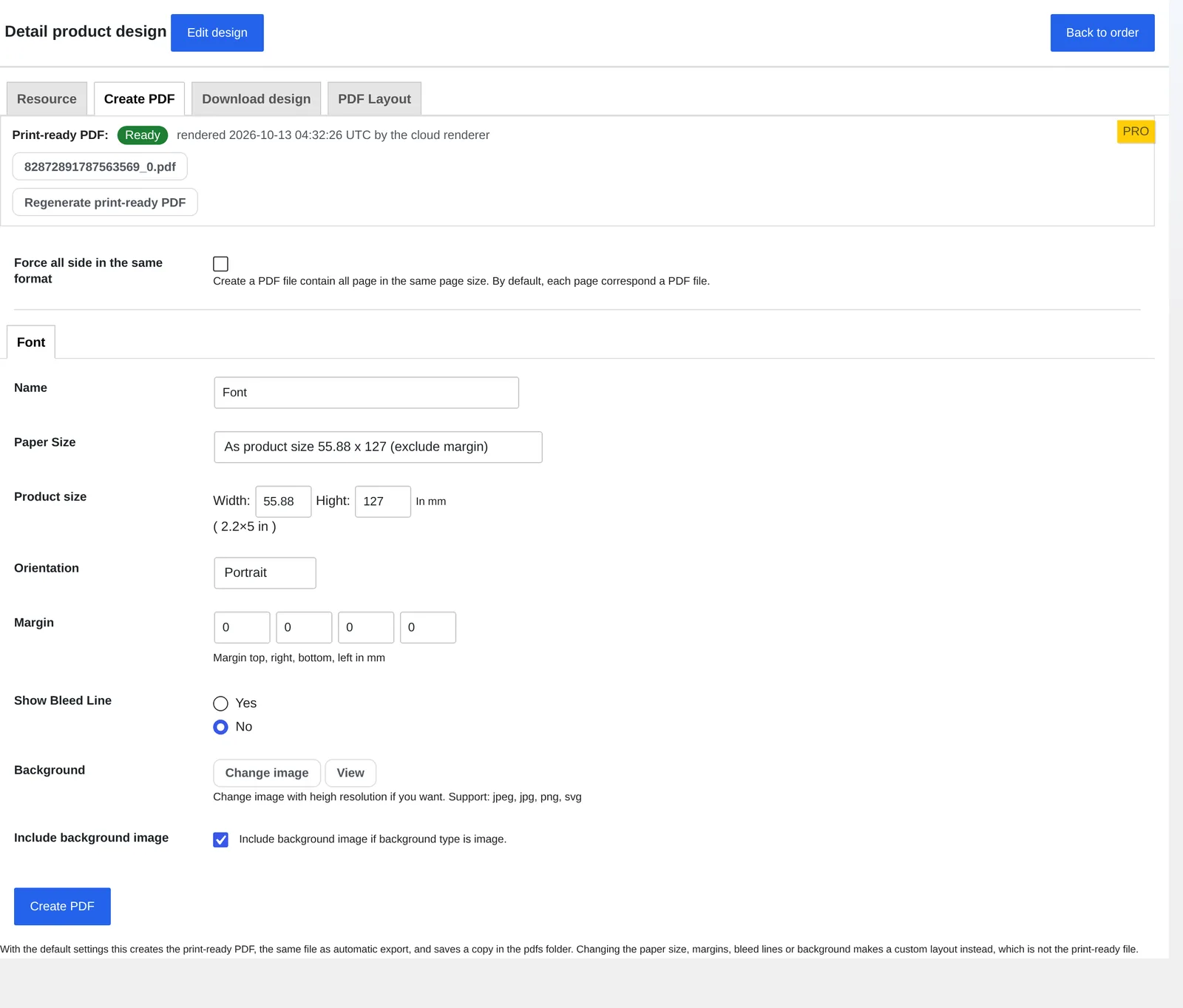

Print-ready PDFs now match custom sizes too (2.17). A buyer's own width and height used to fall back to the product template's stock size for the print file; Create PDF, the order screen and automatic export now all read the same custom geometry.
PDF uploads. Since 2.15.1 an uploaded PDF is placed at its real physical size and previewed at up to 300 DPI, and the AI "low-resolution, upscale it" suggestion no longer fires on a PDF layer, so a vector PDF is never replaced by an upscaled copy. Related guides: WooCommerce product customizer and NBDesigner back-end settings.
Going further: what can Cmsmart custom-build for stricter quality control?
When standard rules are not enough, Cmsmart builds product-specific preflight profiles, checkout gates, customer re-upload flows and MIS hold rules on top of AI Preflight. Each is delivered as a custom project with discovery, solution design, sprints, QA, launch and support.
How we deliver: see the ecommerce project delivery model, AI for ecommerce at Cmsmart and product designer customization services.
Plan DPI rules and AI preflight for my shop
Why Cmsmart for DPI rules and print quality?
Cmsmart develops the Cmsmart Product Designer and its AI Preflight, and has built ecommerce and web-to-print stores since 2012 as a division of Netbase JSC, so quality rules are set by the team that builds the editor and the checks.
Our records count 6,300+ client projects and 500+ custom development projects in 80+ countries (WorkSuite project records, Sep 2026); Cmsmart rates 4.2 on Trustpilot (404 reviews). Trustpilot reviewer "Web Developer" (UK, 5 stars): "It is wonderful to see their commitment to continuous development, with new features being added frequently to keep the software current and highly capable" (review). Related work: online ordering for print and design services and personalized invitations and business cards.
Frequently asked questions
100 DPI vs 300 DPI: which should I use for print?

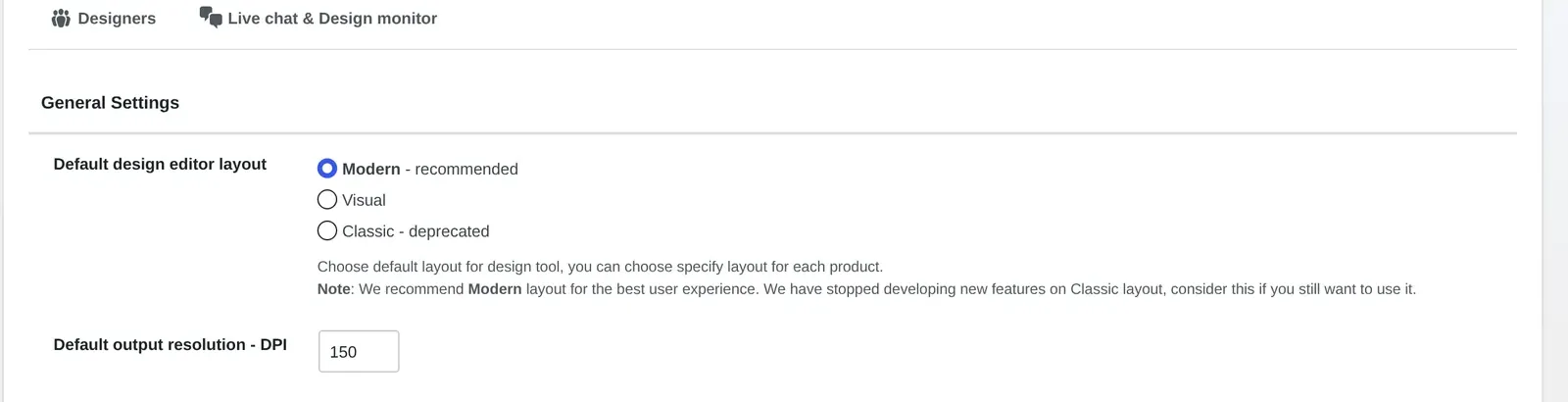

300 DPI for most close-up print such as cards, flyers and photos. 100 DPI looks soft once it is held in the hand. The plugin default output is 150 DPI, so raise it if your products are viewed up close.
Is 100 DPI enough for printing?
Rarely. 100 DPI looks soft on anything held in the hand; it can work only for very large formats seen from a distance.
What does AI Preflight check?
Resolution and DPI, colour mode, bleed, fonts and transparency, against the Required DPI you set (300 recommended). Each scan uses Cmsmart Cloud tokens.
Can AI fix a bad file automatically?
Auto-fix is available per issue and currently adds missing bleed to the order PDF; re-run preflight to confirm. Low-resolution images still need a better source file or AI Image Upscale.
Will the plugin upscale an image without asking?
No. It can suggest AI upscaling for a small raster image, never does it silently, and skips PDF layers.
Where does the customer see the warning?
In the designer, as a notice, when an image is below the minimum resolution you configured.
How do I check the DPI of an image before printing?
Divide the image's width in pixels by the planned print width in inches. The result is the effective DPI at that size. Changing the DPI value in an editor without adding pixels does not add detail, so check the pixel dimensions against the print size, not the DPI field stored in the file.
Does a 100 DPI image look bad on every product?
No. Viewing distance matters. A 100 DPI image on a banner or poster seen from across a room can look acceptable, while the same resolution on a business card, invitation or mug looks soft or pixelated. Set DPI rules per product type and confirm the minimum with your printer.
Does increasing an image's DPI improve its print quality?
No. Changing the DPI setting without adding pixels only changes the print size, and normal resampling invents pixels without adding real detail. Quality improves only with a larger original or a good upscale. In Cmsmart Product Designer, the automatic fix for buyers is a 2x AI upscale of the lowest-resolution image, started with one click.
