Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 · Updated October 2026. Covers the Printing Options "Product builder fields" (Component, Text, Image) — a WooCommerce product builder for multi-part, build-your-own products.

In short

  • Cmsmart's Product Builder fields let a shopper assemble a product from several priced components instead of filling out a quote form or emailing you a spec sheet.
  • Admins build the picker in Cmsmart → Printing Options, using Component, Text and Image fields plus a price matrix, and attach it to any product — no code.
  • It takes an afternoon to configure a first component set; a true 3D, drag-and-drop or inventory-synced configurator is custom development on top of the same order and print pipeline.

A customer who wants a tote bag with a choice of handle, lining and an add-on pocket should not have to email you for a quote: a WooCommerce product builder turns that choice into an on-page picker with a live price, using Cmsmart's Product Builder fields built entirely inside the plugin's Printing Options screen.

Why does selling a multi-part product still mean manual quoting?

Cmsmart Product Designer removes manual quoting for configurable products by letting you define each part as a priced "Component" field in Printing Options, so the storefront shows a price the moment a shopper picks a combination, instead of a contact form.

Print shops and merchandise sellers that offer anything built from parts — a tote bag with a handle and lining option, a sign with a choice of post and mount, a gift set with swappable inserts — run into the same wall once volume grows:

  • Every combination needs a quote. Without a pricing rule per component, staff manually price each inbound request before the customer can even add it to cart.
  • Spreadsheet price lists drift out of date. A material cost change means editing a shared sheet and hoping everyone who quotes uses the new version.
  • Checkout friction kills the sale. Shoppers who cannot see a price immediately tend to leave: the average documented cart abandonment rate across 50 studies is 70.22% (Baymard Institute, 2025), and asking a shopper to email you for a price is one of the easiest ways to add that friction.
  • Support time goes to pricing questions, not production. Each message asking what a build would cost with one part swapped for another is a few minutes a staff member is not spending on an order that is already paid for.

What would a build-your-own product store look like?

With Cmsmart's Product Builder fields, a shopper opens a product, picks a component from each group you defined — material, add-on, finish — watches the total update, and adds it to cart with no back-and-forth, while you keep full control of what each choice costs.

Picture the order desk on a Monday morning: no inbox full of weekend messages asking for a different color or how much an extra part would cost. Every configurable order that came in already has its components, its price and its print-ready file attached, because the pricing decision was made by the picker, not by a person.

Example scenario: a stationery shop sells a gift box builder — base box, a choice of liner, and an optional foil-stamped tag. Each option is a Component field with its own price delta in the matrix. A shopper who adds the foil tag sees the total rise by exactly the configured amount before they reach checkout, and the order lands in production with the selected components recorded against the order item, not typed into a note field.

Setting this up is also the moment to talk to an ecommerce expert if your product is closer to a true configurator — rotating 3D previews, components that depend on each other, or a live inventory check — since that layer sits on top of, not inside, the standard picker.

How does Cmsmart's WooCommerce product builder solution turn components into a sellable product?

Cmsmart's solution is a field type library inside Printing Options: a Component field (plus Text and Image fields for labels and swatches) that an admin attaches to a product, prices in a matrix, and the storefront renders as a picker — while the online designer, order pipeline and print-ready output stay exactly the same.

Everything else a configurable product needs — checkout, the order record, the print-ready PDF, artwork approval — is the same pipeline every Cmsmart product already uses. Only the front-end picker changes, and it is a different model from a native WooCommerce variable product, where each variation carries one fixed price instead of a matrix computed from several components:

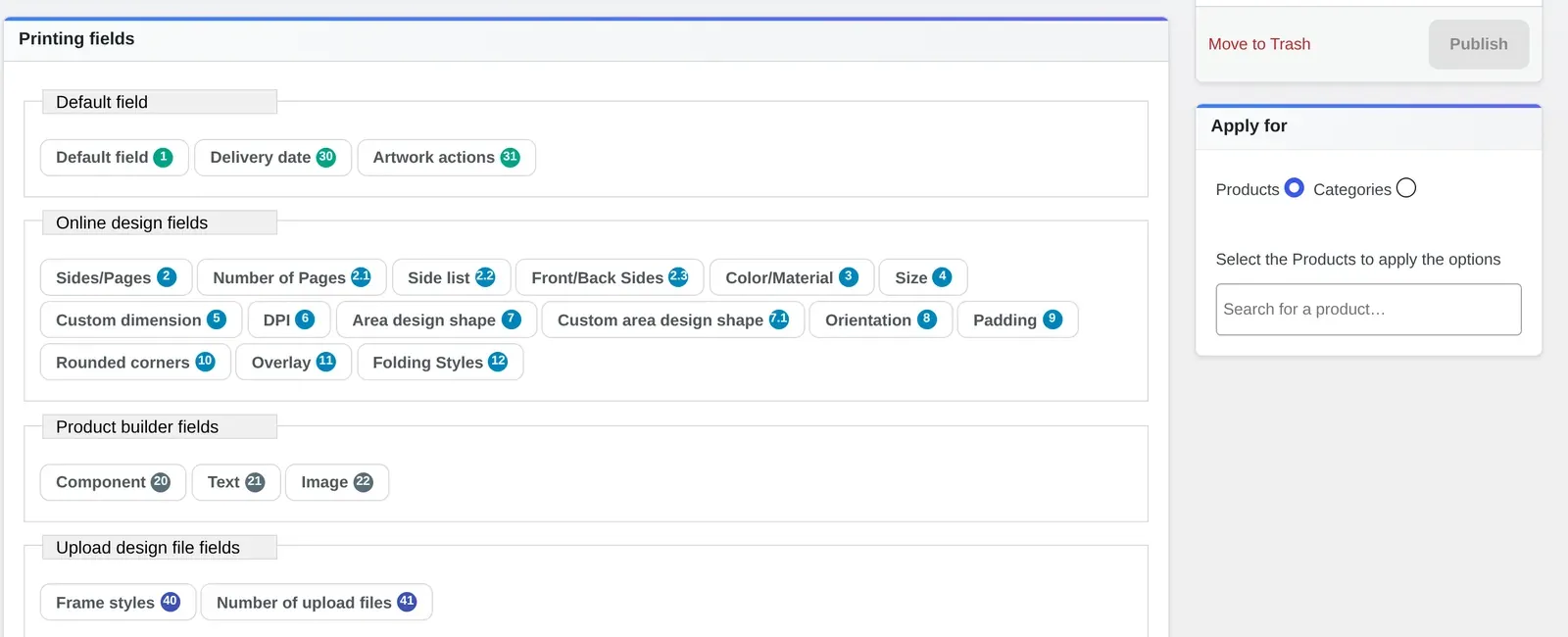

Printing option editor showing the Product builder fields group: Component, Text and Image field types
The Printing Options field library groups fields by purpose — Online design fields for the canvas, and a dedicated Product builder fields group (Component, Text, Image) for picker-based products.
  • Storefront picker (in the plugin): Component, Text and Image fields rendered on the product page, built from Printing Options.
  • Price matrix (in the plugin): each component carries its own price rule — fixed, percentage or formula — set once in the option editor.
  • Order and fulfillment pipeline (in the plugin): the same order detail, Customer Design approval, Create PDF and Files screens every Cmsmart order uses, whatever built the line item.
  • Cross-component rules, live 3D preview, ERP-synced stock per component (custom development): Cmsmart builds these for stores whose configurator needs to go further than a priced picker.
CapabilityIn Cmsmart Product Designer todayNeeds custom development
Pick a component with its own priceYes — Component field + price matrix—
Label and swatch/image per choiceYes — Text and Image fields—
Price by quantity breaksYes — Printing Options quantity rules—
Components that disable incompatible choices—Yes — rule logic built for your catalog
Rotating 3D preview of the assembled product—Yes — 3D product setup project
Per-component stock synced from an ERP/MIS—Yes — integration project

Cmsmart insight: in projects where a small component picker grew into dozens of combinations, the price matrix is usually easier to maintain than the rule logic — keep the number of components a buyer chooses from small, and push anything that depends on another choice into a custom rule rather than more matrix rows.

What's the ROI of a multi-component product builder?

Cmsmart's Product Builder pays for its setup time by cutting the minutes staff spend quoting each configurable order and by showing a price before checkout, which is the single biggest lever against the industry-wide cart abandonment rate cited above.

BenefitHow it shows up in your businessKPI to track
No manual quote per combinationStaff stop pricing inbound what-if requests by handQuote/support messages per 100 orders
Price shown before checkoutFewer shoppers abandon at the quote-request stepAdd-to-cart rate on configurable products
Components recorded on the orderProduction reads the exact spec instead of a note fieldReprints caused by spec mix-ups
One price matrix to maintainA cost change updates every future order at onceTime to update pricing after a cost change

Back-of-envelope worksheet: (configurable orders per month) × (minutes a staff member used to spend quoting each one) × (fully loaded hourly cost ÷ 60) = monthly quoting time saved. Add (configurable orders per month) × (your current abandonment rate on quote-gated products − your expected abandonment rate once price shows instantly) × (average order value) for the revenue side. Both variables are yours — the worksheet only works with your own numbers, not a promised percentage.

How do you set up a component-based product in Cmsmart Product Designer?

You set up Product Builder fields entirely from Cmsmart → Printing Options: add a Component field per choice, price each one in the matrix, attach the option set to a product, and the storefront picker is live — no theme or code changes needed.

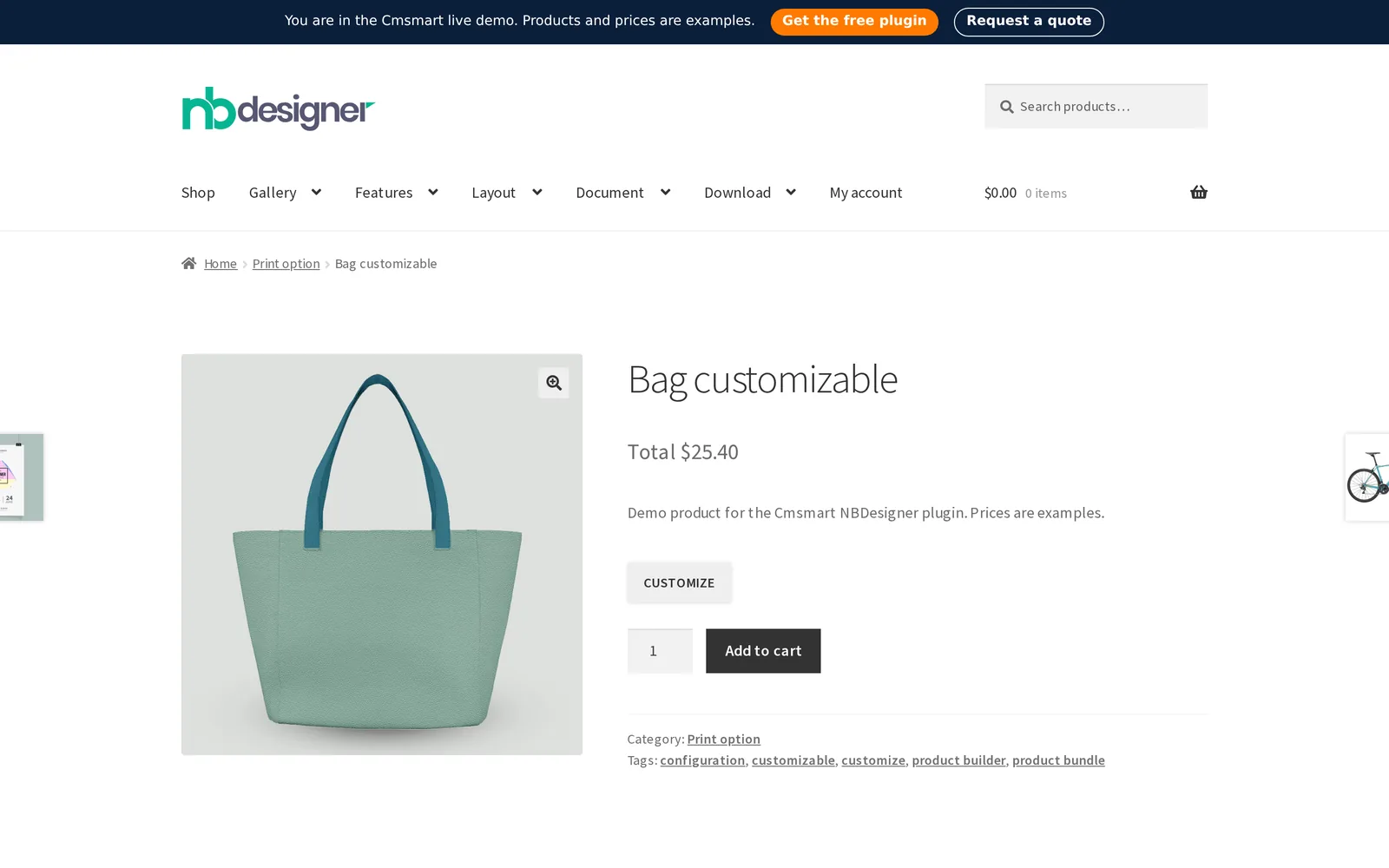

WooCommerce product builder demo: Bag customizable product page with a Customize button instead of a canvas
A component-based product shows a Customize button that opens the picker, not the canvas designer — this demo product is tagged "product builder, product bundle."
  1. Go to Cmsmart → Products (Manager Products) and open the product you want to turn into a build-your-own item, or create a new one.
  2. Open Cmsmart → Printing Options → Add new to create the option set that will hold your components.
  3. Under Printing fields → Product builder fields, add a Component field for each choice the buyer makes (material, add-on, finish). Add Text fields for free-form labels and Image fields where a swatch or thumbnail helps the buyer decide.
  4. Give each component its options (for example, Canvas / Vinyl / Leather handle) and set a price rule — fixed amount, percentage or formula — for each one in the price matrix.
  5. Set quantity breaks if you offer a bulk discount, and choose a display type (default, swatch or table) under Appearance.
  6. Under Apply for, attach the option set to the product (or a whole category) and set its priority if more than one option set could match.
  7. Open the product's own configuration screen and confirm the Production specs (material, bleed, resolution, color profile) match what this component combination actually prints on.
  8. Preview the product on the storefront, pick a few combinations and confirm the price and the design/print area update as expected before publishing.
  9. Place a test order and check that the order detail shows every chosen component so production never has to guess the spec.

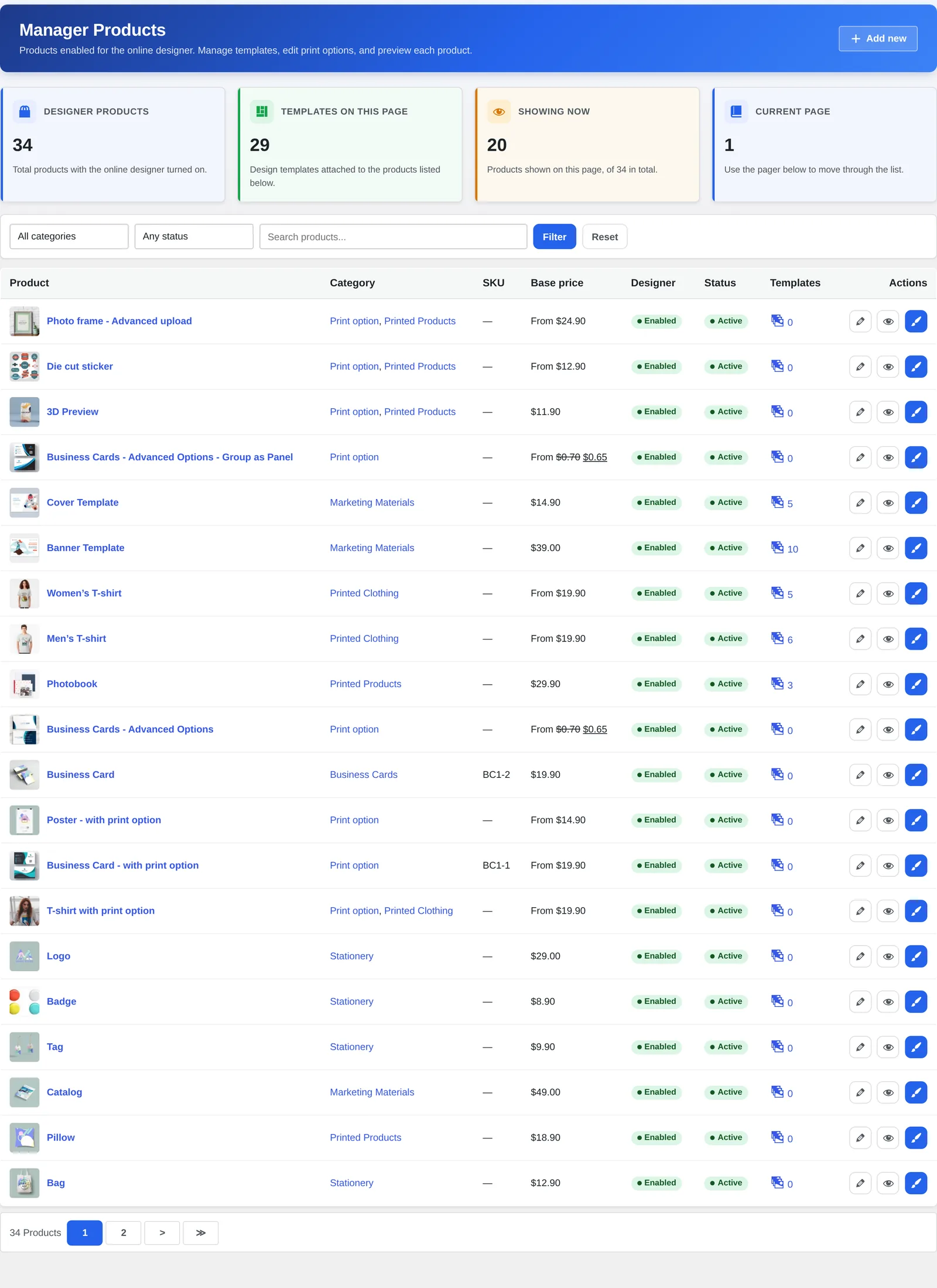

Manager Products screen listing designer-enabled products with base price, status and templates
Manager Products lists every designer-enabled product with its base price and template count — the place to find the product you're turning into a builder.

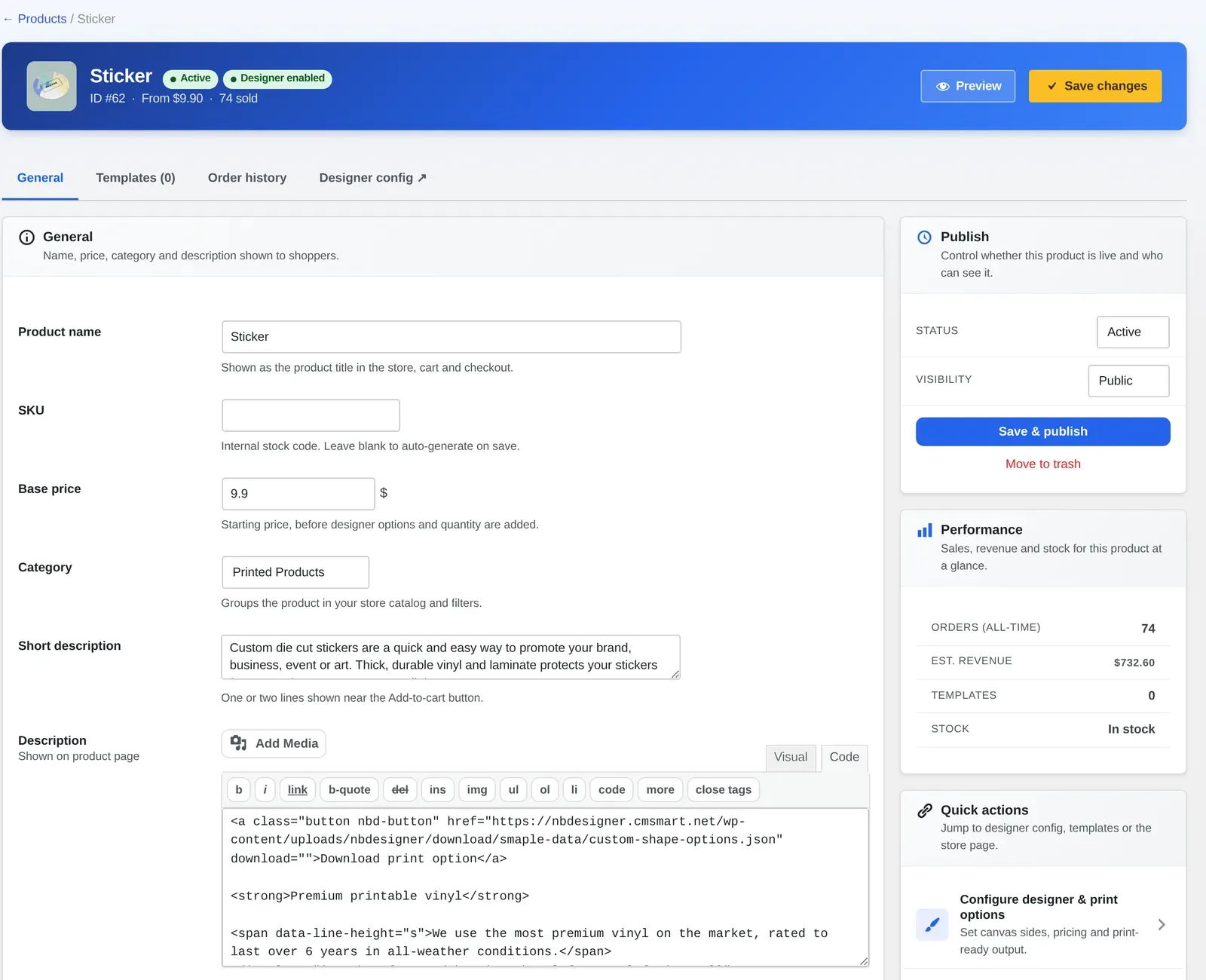

Product configuration screen with production specs and the Configure designer and print options quick action
Each product's configuration screen holds the production specs — material, bleed, resolution, color profile — that should match the components you price in Printing Options.

Once an order comes in, it runs through the same pipeline as every other Cmsmart order: the order detail screen shows the production timeline, the Cmsmart Product Designer plugin queues the print-ready PDF, and — since 2.17.0 — that automatic PDF uses the same page geometry as a manual "Create PDF," including any custom size, so what production opens matches what the designer showed.

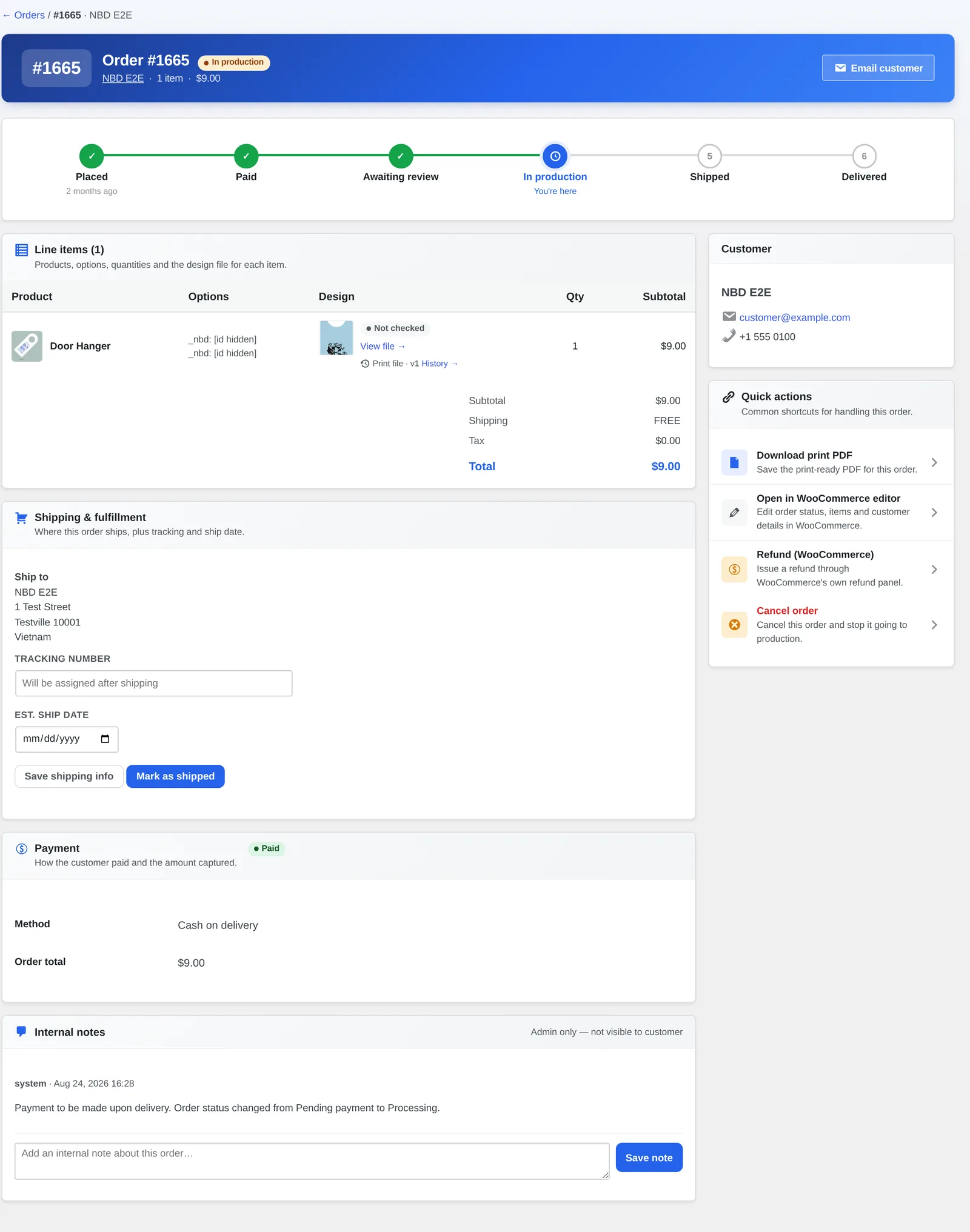

Order detail screen showing the production timeline and line item for a custom order
Every order — built from a canvas design, an upload or a component picker — lands on the same order detail screen with its production timeline.

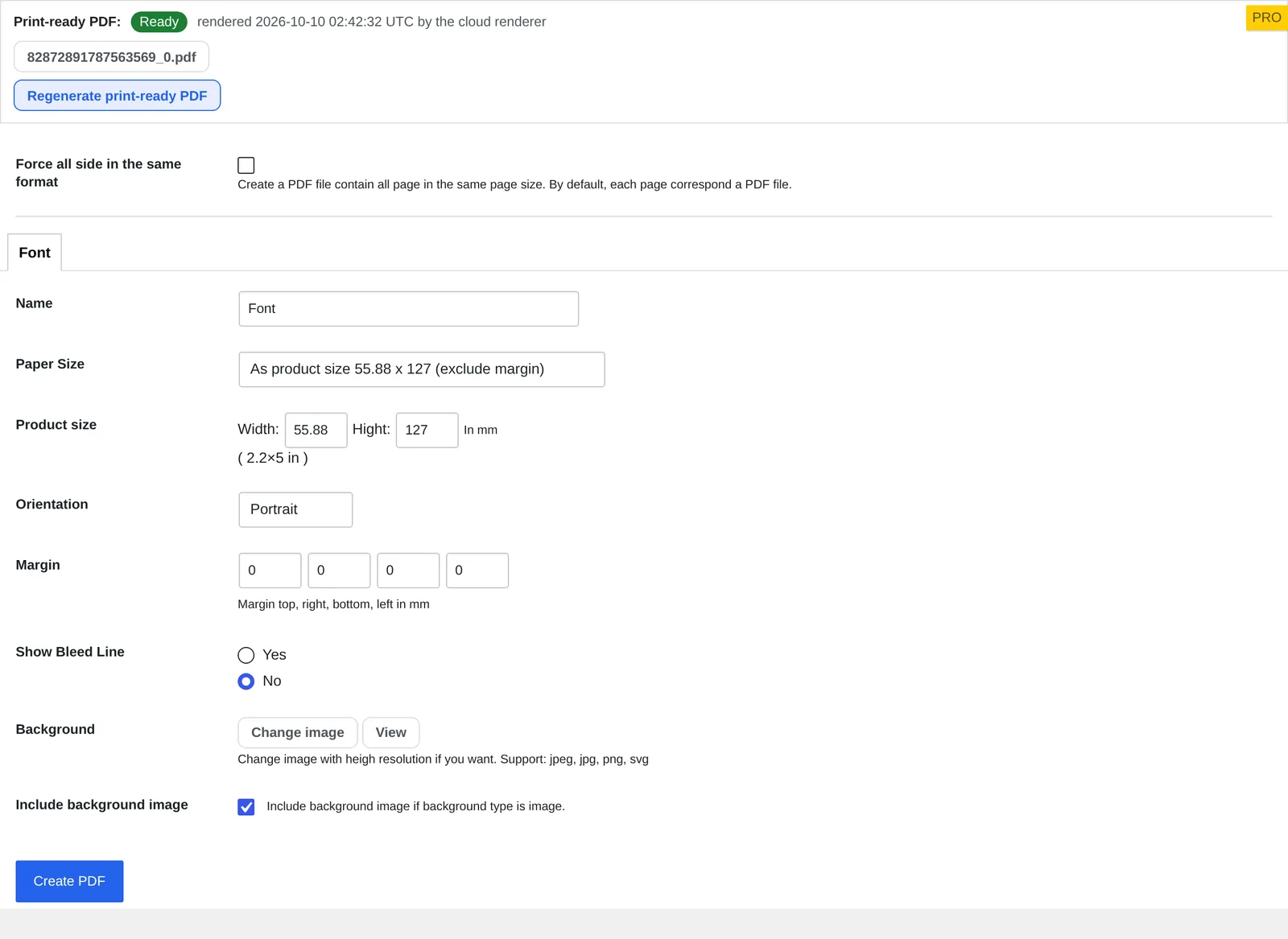

Print-ready PDF status showing Ready, rendered by the cloud renderer, matching the order's custom size
Print-ready PDF status on the order: rendered by the cloud renderer and, since 2.17.0, sized to match the order rather than a generic template.

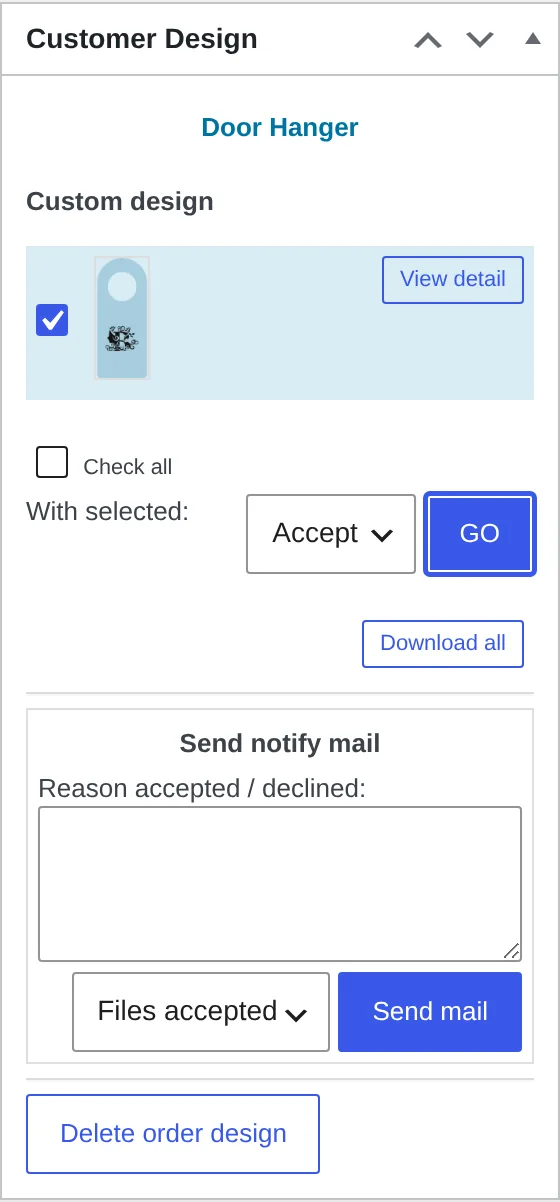

Customer Design box with accept or decline controls before an order goes to production
The Customer Design box lets you accept or decline the artwork before production; since 2.17.0 an approved design is locked against further edits on the server.
Video thumbnail: How to create a Component in Product Builder of NBDesigner
Video: How to create a Component in Product Builder of NBDesigner (Cmsmart on YouTube).

For deeper settings — upload file types, minimum DPI, PDF and ICC/CMYK output — see the product configuration guide, and for the pricing grid itself, the price matrix tutorial covers multi-attribute tables in more depth than fits here.

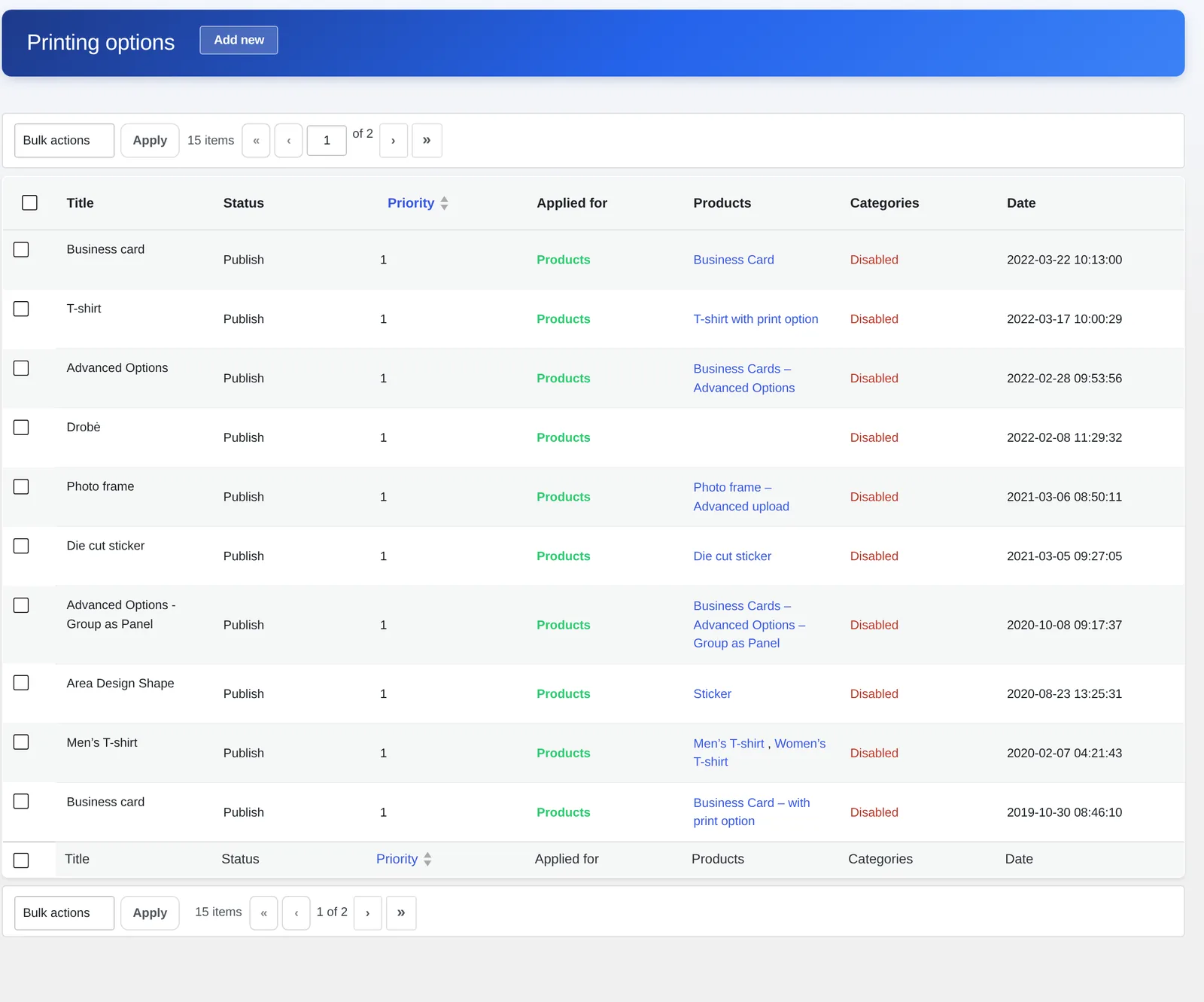

Cmsmart Printing Options list showing option sets applied to different products
Printing Options lists every option set you've built, which product(s) or categories it applies to, and its priority.

Going further: what can Cmsmart custom-build on top of Product Builder?

Cmsmart builds the layer above the standard picker — dependent components, a rotating 3D preview, live inventory or ERP-synced stock per component, and saved configurations for repeat B2B buyers — as custom development on top of your existing Product Builder setup, not a replacement for it.

  • Business reason: a wrong combination ships. Cmsmart builds compatibility rules so picking one component disables or re-prices incompatible choices, instead of relying on buyers to read a note.
  • Business reason: buyers want to see it before they buy it. Cmsmart builds a 3D or 360° preview of the assembled product, wired to the same component choices, as a project on top of the product designer customization service.
  • Business reason: a component is a physical part you can run out of. Cmsmart builds a live stock or ERP/MIS sync per component so the picker hides or re-prices a part the moment it's unavailable.
  • Business reason: the same B2B buyer reorders the same build monthly. Cmsmart builds saved configurations and reorder-in-one-click for repeat component combinations.
  • Business reason: production needs more than a price per component. Cmsmart builds AI preflight checks tuned to a multi-part product's print files before they reach the press.

Every custom project follows the same delivery model: discovery, solution design, sprints, QA and launch, with support after — see how that runs in practice on Cmsmart's ecommerce project delivery page.

Get a custom product builder quote

Why work with Cmsmart on your product builder?

Cmsmart has shipped WooCommerce product customization since 2012 as a Netbase JSC division, with over 6,300 client projects delivered and a 4.2-star Trustpilot rating, so a component picker you configure yourself can become a fully custom 3D configurator without switching vendors.

Cmsmart (a Netbase JSC division, netbasejsc.com) has built WooCommerce product customization tools since 2012: 6,300+ client projects and 4,600+ projects delivered, with 1,800+ stores live on the platform across 80+ countries. Reviews are public on Trustpilot, currently rated 4.2 from 404 reviews.

Cmsmart insight: "We have had the NB Designer plugin installed for three years and have experienced absolutely no problems during that time. It is wonderful to see their commitment to continuous development, with new features being added frequently to keep the software current and highly capable." — Web Developer, Trustpilot review, GB.

See related delivery work on the web-to-print solutions hub, or browse the Cmsmart Product Designer plugin page to try Printing Options yourself.

Frequently asked questions

What's the difference between the online designer and Product Builder fields?

The online designer is a canvas where a buyer places text, images and cliparts freely. Product Builder fields (Component, Text, Image) are a picker: the buyer selects from options you defined, each with its own price, and never touches a canvas. A product can use either, and some stores offer the picker to choose a base product, then the canvas to decorate it.

How many components can one product have?

There's no hard cap in the plugin; practically, keep the number of Component fields a buyer must fill in small. Every extra choice is a chance to abandon, and the price matrix gets harder to maintain as components multiply — see the insight above on when to move dependency logic into a custom rule instead of more matrix rows.

Does the price matrix support quantity discounts?

Yes. Printing Options includes a quantity-breaks table (percentage or fixed discount per break) alongside the component price matrix, both set from the same option editor screen.

Can components affect the print-ready file, not just the price?

Within the plugin, a component's price and label are configurable; production specs (bleed, resolution, color profile, paper size) that feed the print-ready PDF/X-style file are set per product, not per component choice. If different components genuinely need different print geometry or files, that routing is custom development — talk to Cmsmart about your specific component set.

Can Cmsmart connect our component stock to our inventory system?

Not out of the box. Live stock or ERP/MIS sync per component is a custom integration project — see "Going further" above — built on top of your existing Printing Options setup, so nothing you configure today is wasted.

How long does a custom product builder project take?

It depends on scope: a compatibility-rules project is smaller than a full 3D configurator with inventory sync. Cmsmart scopes every project through discovery and solution design before sprints start — request a quote to get a timeline for your specific build.
