Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 · Updated October 2026. A DTF gang sheet builder is custom development that Cmsmart builds on top of the plugin; it is not a built-in 2.17.0 setting.

In short

  • The outcome: a DTF gang sheet builder lets customers fill a whole transfer sheet with their own designs online and pay by the sheet, so your shop prints full sheets instead of arranging small jobs by hand.
  • How it works: Cmsmart builds the sheet layout tool (presets, copies, spacing, auto-pack, sheet preview) on top of the Cmsmart Product Designer, which already gives you custom sizes, uploads, a price matrix, AI image tools and a print-ready PDF that matches the order.
  • What it takes: your film widths and RIP file spec, your pricing rules, and a scoped custom project with Cmsmart.

Moving that layout online is what a DTF gang sheet builder WooCommerce store adds: the customer uploads, sets sizes and copies, sees the full sheet and pays; your shop receives a sheet that is ready for the RIP, not a folder of loose files. This guide makes the business case for this kind of DTF gang sheet builder software, shows what the Cmsmart Product Designer (NBDesigner) already gives you on WooCommerce today, and explains how Cmsmart's web-to-print team builds the gang sheet layer as custom development.

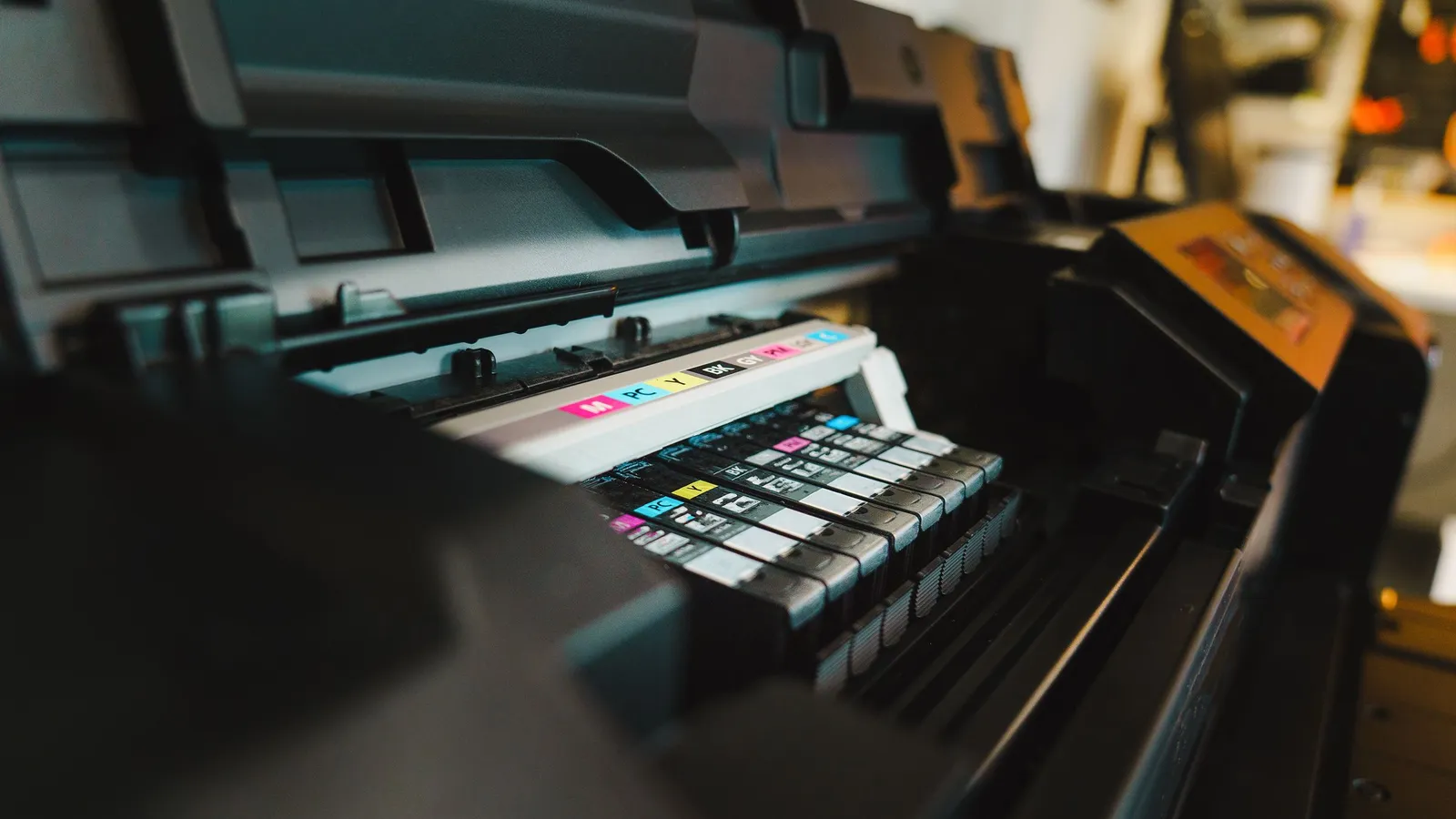

DTF gang sheet builder WooCommerce concept: wide-format printer cartridges loading for a full transfer sheet run
A gang sheet builder keeps a wide-format printer running on full sheets instead of small, hand-arranged jobs.

What Does Manual Gang Sheet Layout Cost Your Print Shop?

Manual gang sheet layout is a hidden labor cost: staff arrange every order by hand, sheets go to print half full, and quotes are guesswork. Cmsmart builds a self-service layout tool so your team only handles exceptions, not every order.

Without a builder, the costs show up in a few familiar ways:

  • Manual layout time. Staff arrange each customer's designs on a sheet, often for small orders with thin margins.
  • Wasted film. Sheets go to print half-empty because nobody had time to pack them tightly.
  • Proof loops. Customers cannot see the sheet until you send a proof, so changes arrive late and reprints follow.
  • Mispriced orders. Quoting by "number of logos" ignores how much film a job actually uses.
  • Rejected files. Low-resolution images and stray backgrounds surface only after the sheet has printed.

Put a number on it with your own data: sheets per month × staff minutes of layout per sheet × hourly cost, plus unused film per sheet × film cost, plus reprints per month × cost per reprint. Demand for this kind of self-service transfer printing keeps growing: the global print-on-demand market reached $11.38 billion in 2025 and is projected to grow to $61.79 billion by 2034, a 20.06% CAGR (IMARC Group, 2025), and direct-to-film transfer printing is expanding alongside it, projected to grow by $4.46 billion by 2032 (360iResearch, 2026). Film and ink are the largest recurring cost inside that growth too: DTF inks alone account for roughly 32% of global DTF printing revenue in 2025 (Deep Market Insights, 2025) — exactly the spend a tightly packed, auto-packed sheet protects.

What Would a DTF Gang Sheet Builder Software Store Look Like?

In a self-service DTF gang sheet store, the customer picks a sheet size, uploads designs, sets sizes and copies, lets the builder pack the sheet, previews it and pays by the sheet. Cmsmart builds this flow on the Cmsmart Product Designer so the order arrives with a sheet file your RIP accepts.

Example scenario

A small apparel brand logs in late in the evening, picks a wide transfer sheet, uploads five logos and asks for forty copies of the chest logo. The builder warns that one image is too small to print sharply and offers to remove the background from another. Auto-pack fills the sheet, the price shows by sheet length, and they check out. In the morning your operator opens one order with one print-ready sheet file and sends it straight to the printer.

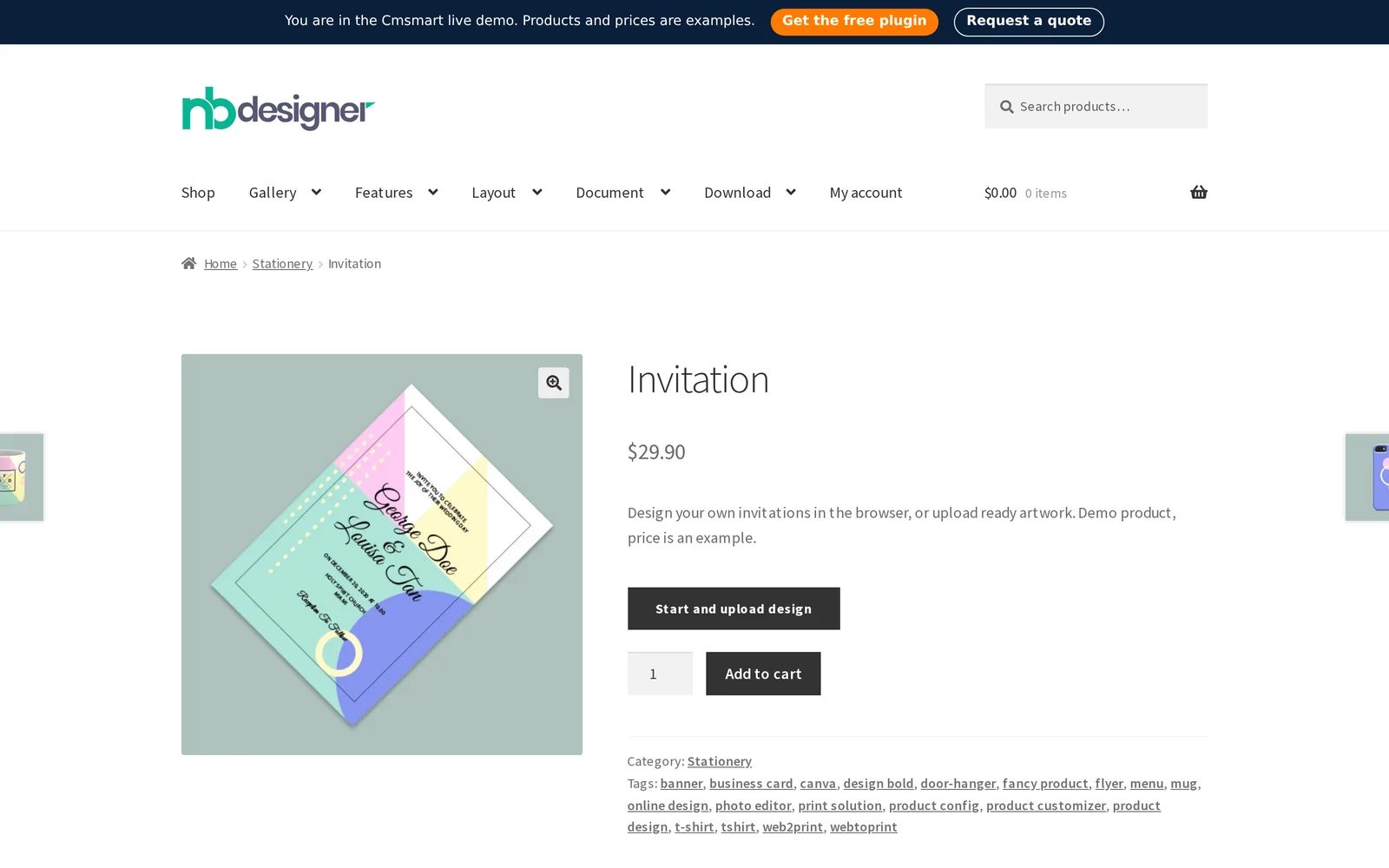

NBDesigner storefront product page today with the Start and upload design button, the entry point a DTF gang sheet builder software project extends
Today, the buyer path starts on the product page with Start and upload design. A gang sheet builder reuses this same entry point for a sheet product.

That is the experience DTF buyers increasingly expect from a transfer supplier. To see how it fits your film widths and pricing, talk to an ecommerce expert.

How Does Cmsmart Build a DTF Gang Sheet Builder WooCommerce Store?

Cmsmart builds the gang sheet builder as a custom module on the Cmsmart Product Designer: the plugin already supplies custom sizes, uploads, a price matrix, AI image tools and a print-ready PDF, and the custom module adds sheet layout, copies, auto-pack and a sheet preview tuned to your printer.

Building blockIn the plugin today (2.17.0)Built as custom development
Sheet sizeCustom dimension field in Printing Options, with the min and max you setPreset sheet widths and lengths per film
Customer artworkEnable Upload Design, allowed file types and a cap on files per uploadMultiple files packed onto one sheet, with copies per design
LayoutArea design shape field and manual placement on the online canvasAuto-pack with gap, rotation and margin rules

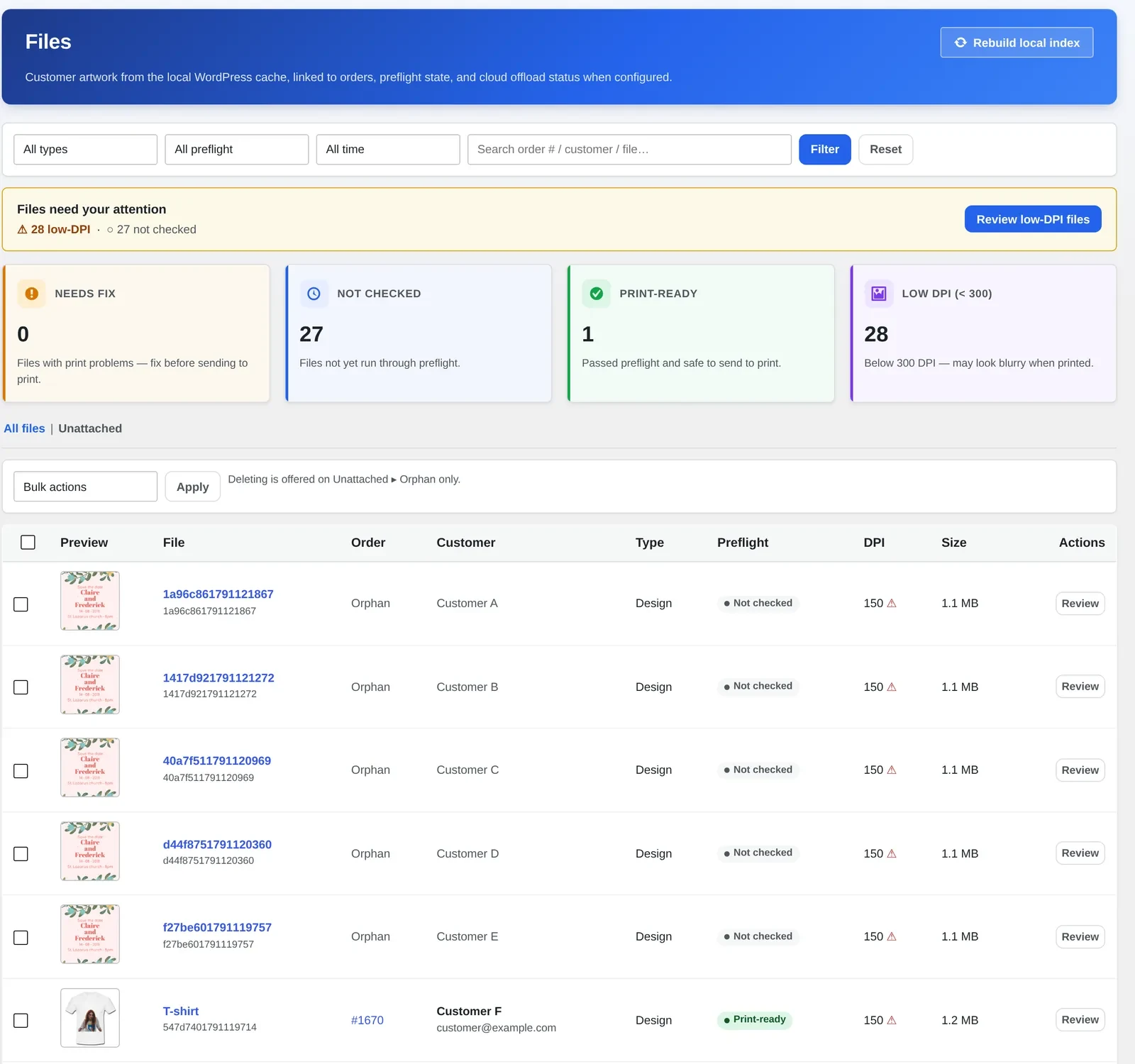

Image qualityMin. resolution DPI for uploads, a low-DPI flag in Cmsmart > Files, buyer-facing AI Background Remover/Upscale, and an admin-side Preflight Quality Checker with per-issue AI auto-fixSheet-level quality gate before checkout
PricingPrice matrix and percentage-based quantity breaks in Printing OptionsPrice by sheet length, plus rush and volume rules

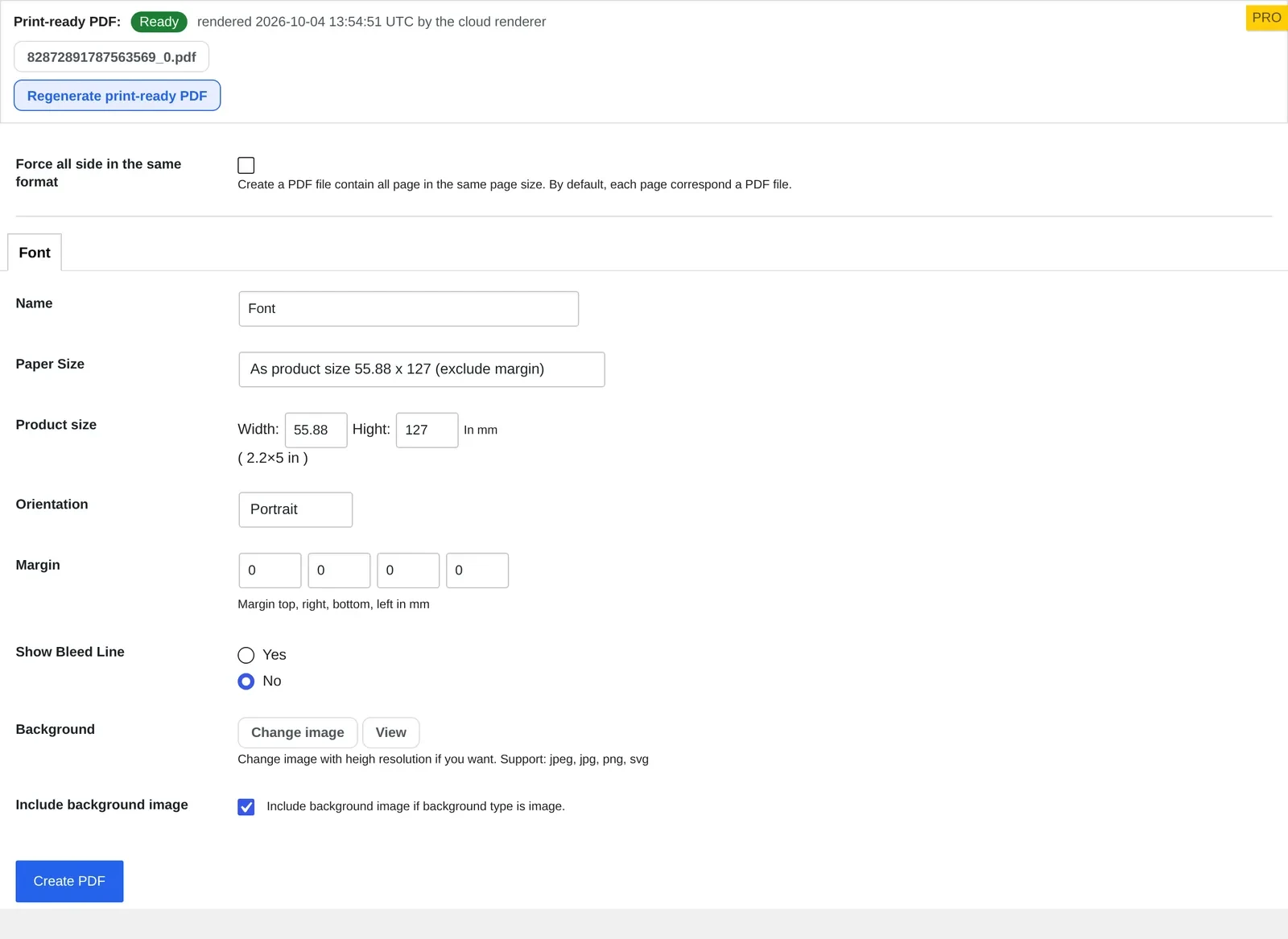

OutputPrint-ready PDF that matches the order, rendered on Process, with status and Regenerate on the orderOne sheet file per order in your RIP's format and naming

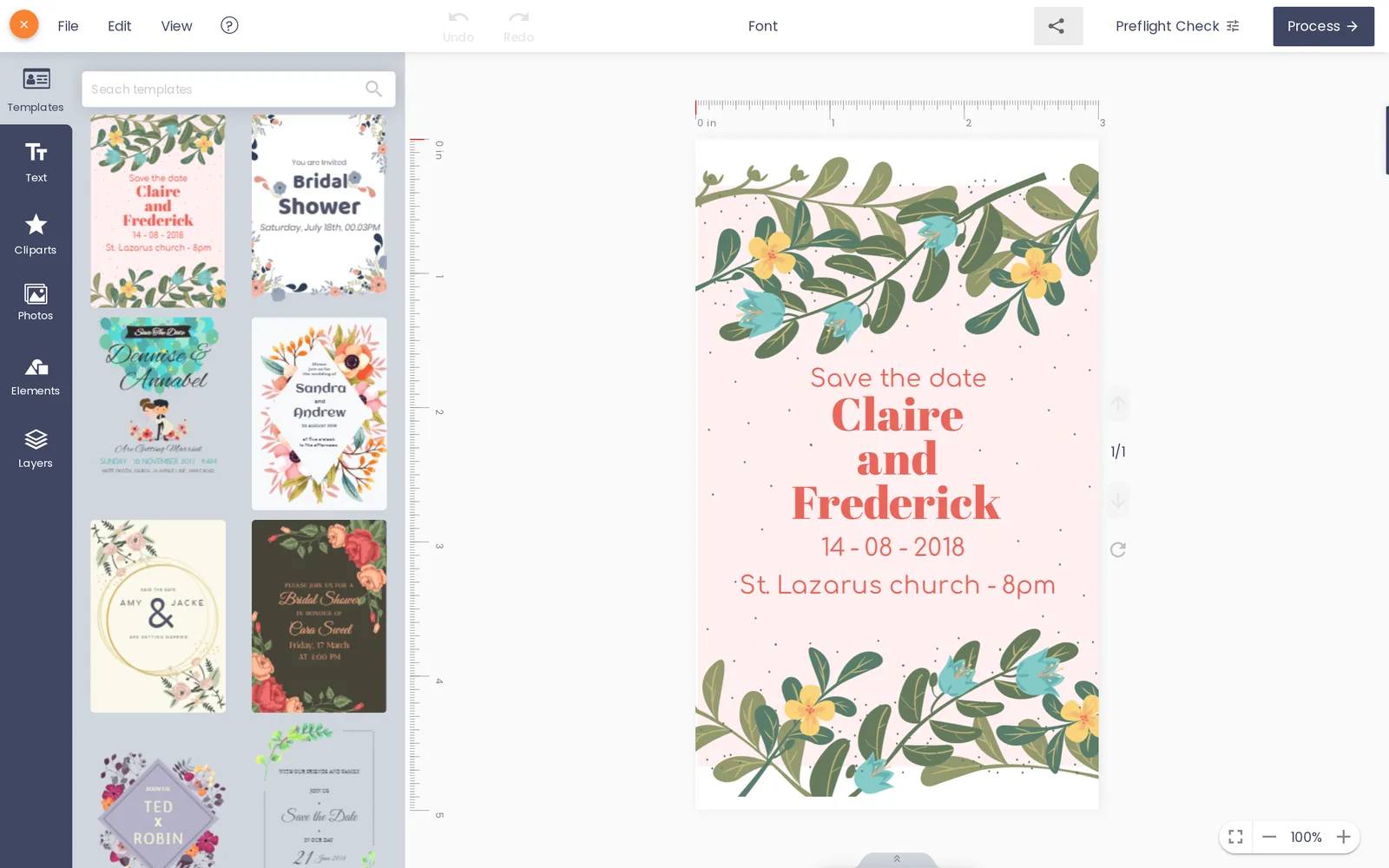

Cmsmart Product Designer online editor today, the base a DTF gang sheet builder software module extends
The designer today: templates, text and layers on the canvas, with Process generating the print-ready PDF. A gang sheet builder adds sheet-level packing on top of this editor.

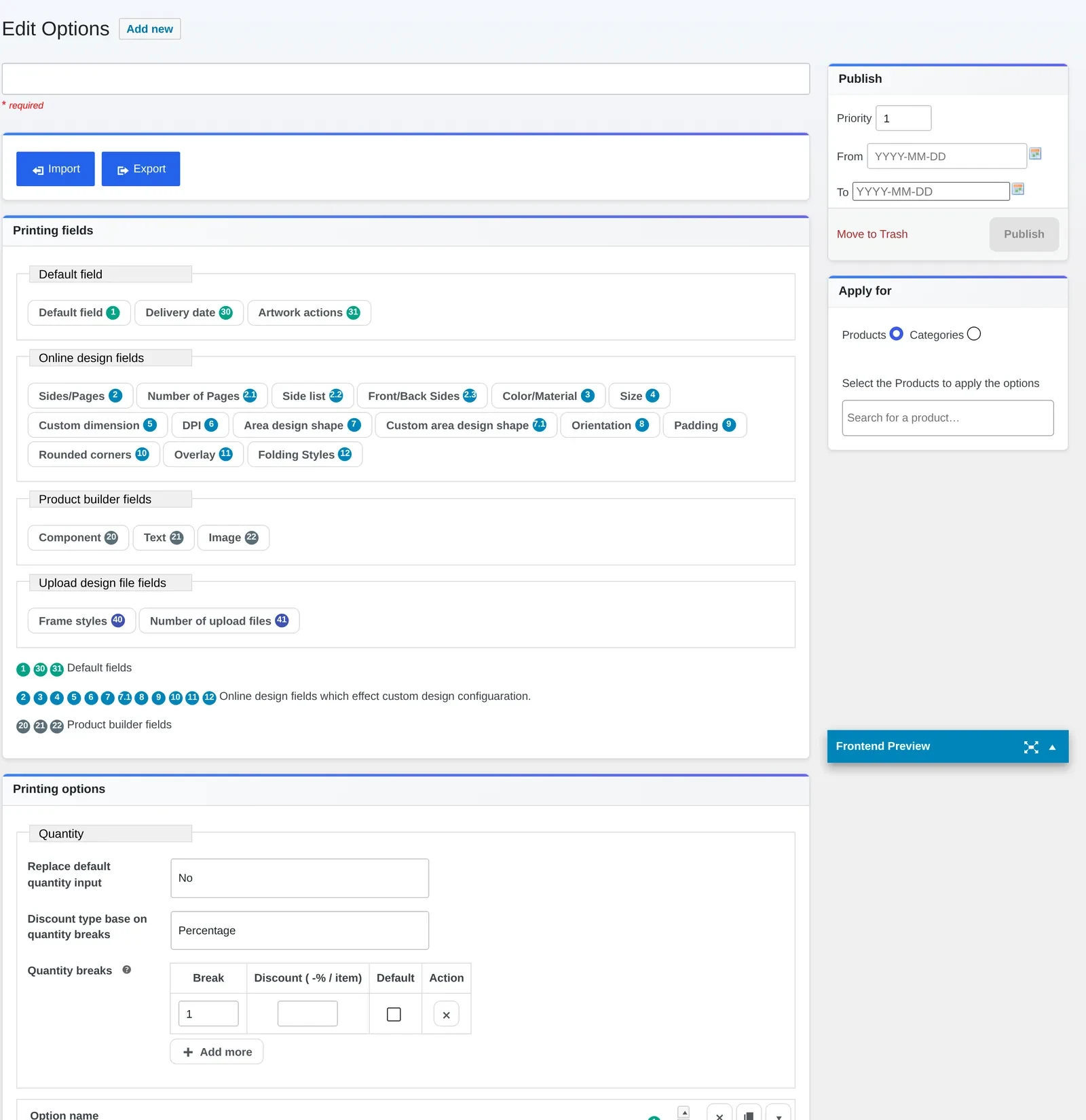

Printing Options editor showing the Custom dimension and Area design shape fields plus quantity-break pricing
Printing Options today: Custom dimension and Area design shape fields, plus quantity-break pricing — the same framework a gang sheet price-by-length rule builds on.

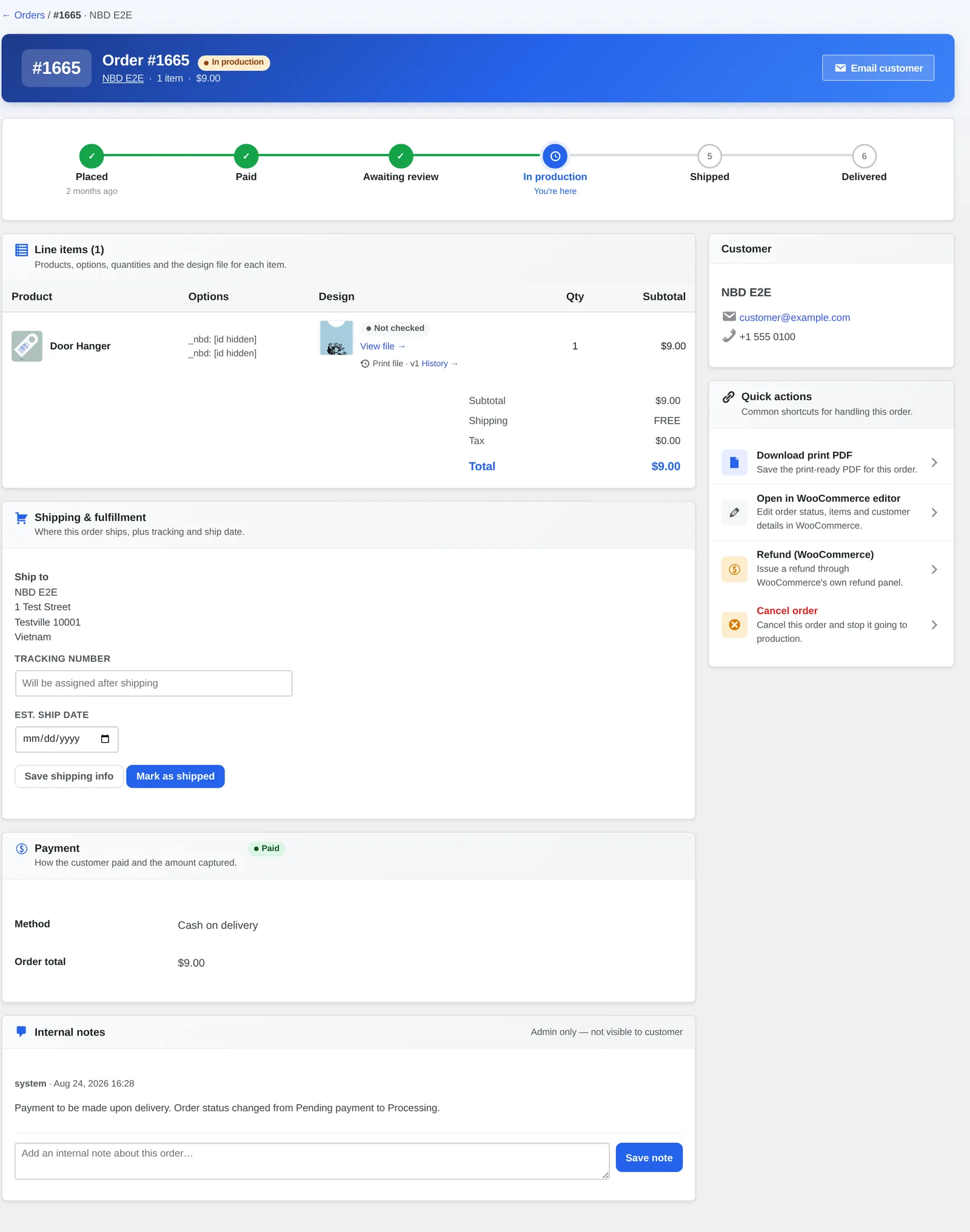

Cmsmart order detail today showing the production timeline and a Download print PDF quick action
Order detail today: the production timeline (Placed → Paid → Awaiting review → In production → Shipped → Delivered) and a Download print PDF quick action — the output a gang sheet module turns into one file per sheet.

Cmsmart insight: agree the sheet output file with your printer before scoping a builder: format, maximum length, margins, and whether white underbase is handled by the RIP or the file. Packing rules are easy to change later; a sheet file your RIP rejects is not.

What's the Business Value of a Gang Sheet Builder?

A gang sheet builder turns layout from staff work into customer self-service, fills sheets more completely, and prices by the film a job actually uses. Cmsmart recommends tracking layout minutes per sheet, film usage per sheet, reprint rate and order value before and after launch.

BenefitHow it shows up in your businessKPI to track
Layout off your payrollCustomers build the sheet; staff handle exceptionsStaff layout minutes per sheet
Less wasted filmAuto-pack fills sheets before they printUsed area per sheet
Fair, instant pricingPrice follows sheet length instead of a guessOrders placed without a manual quote
Fewer rejected jobsResolution and background issues caught before checkoutReprints per month
Bigger basketsCustomers fill the space they are paying forDesigns per order; average order value

ROI worksheet. Monthly saving = sheets per month × layout minutes saved per sheet ÷ 60 × hourly rate + film saved per month × film cost per sheet + reprints avoided per month × cost per reprint. Payback in months = project cost ÷ monthly saving. Plug in your own shop's numbers before you scope the project.

How Do You Set Up Your Store Today, Before Adding a Gang Sheet Builder?

Start with what the Cmsmart Product Designer does today: sell transfers by size with a Custom dimension field, collect uploads under your rules, catch quality issues before production, and receive a print-ready PDF that matches the order. Then scope the gang sheet module around five decisions: printer and film, customer inputs, pricing, output file and approval.

  1. Sell by size today. In a Printing Options group, add the Custom dimension field and the Area design shape field, set a price matrix with quantity breaks, then enable the online designer and uploads on the product.

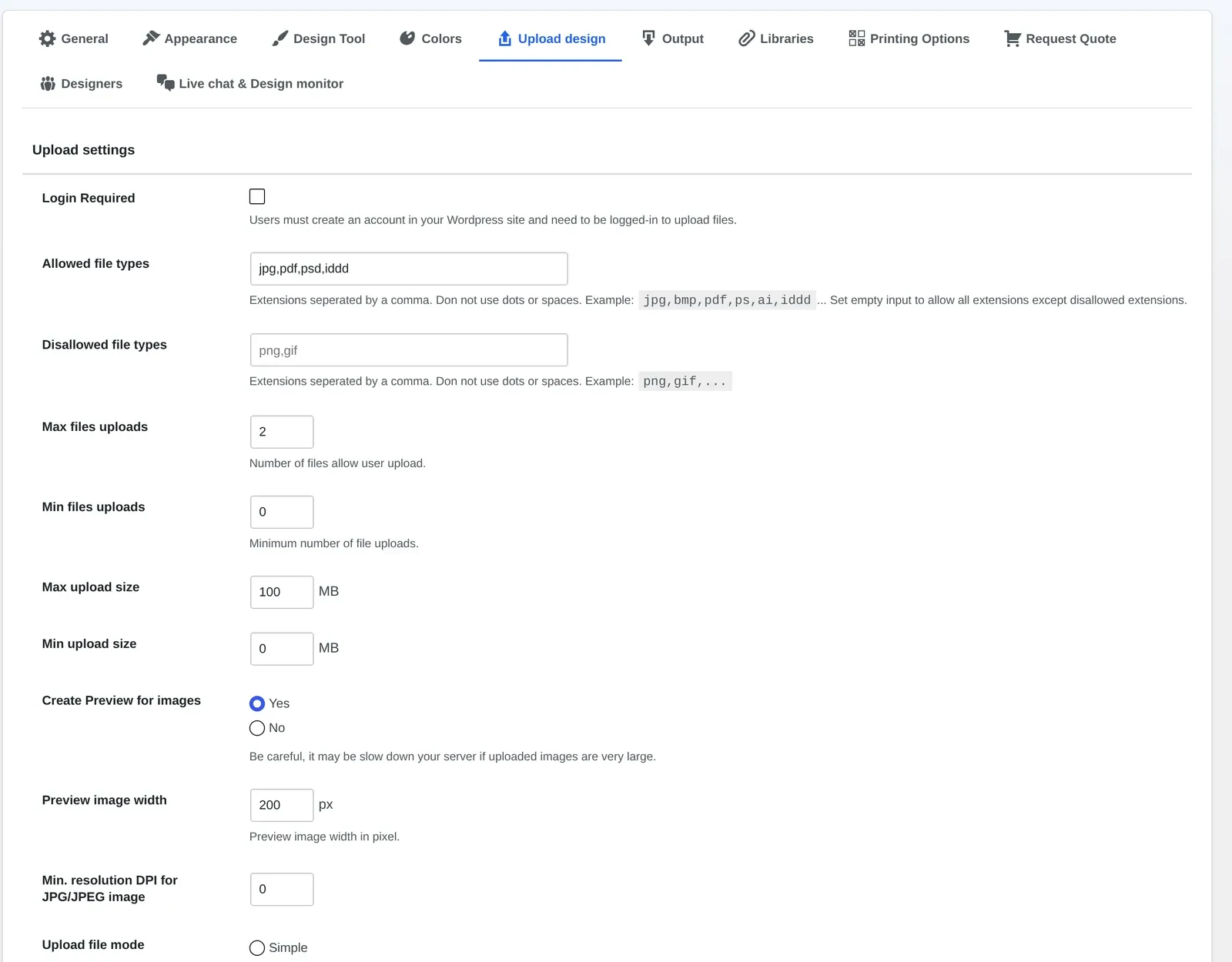

  2. Set upload rules. In Settings > Upload design, set allowed/disallowed file types, a max/min upload size, and Min. resolution DPI for JPG/JPEG image (0 by default — raise it so a thin logo is rejected at upload, not on the printed sheet).

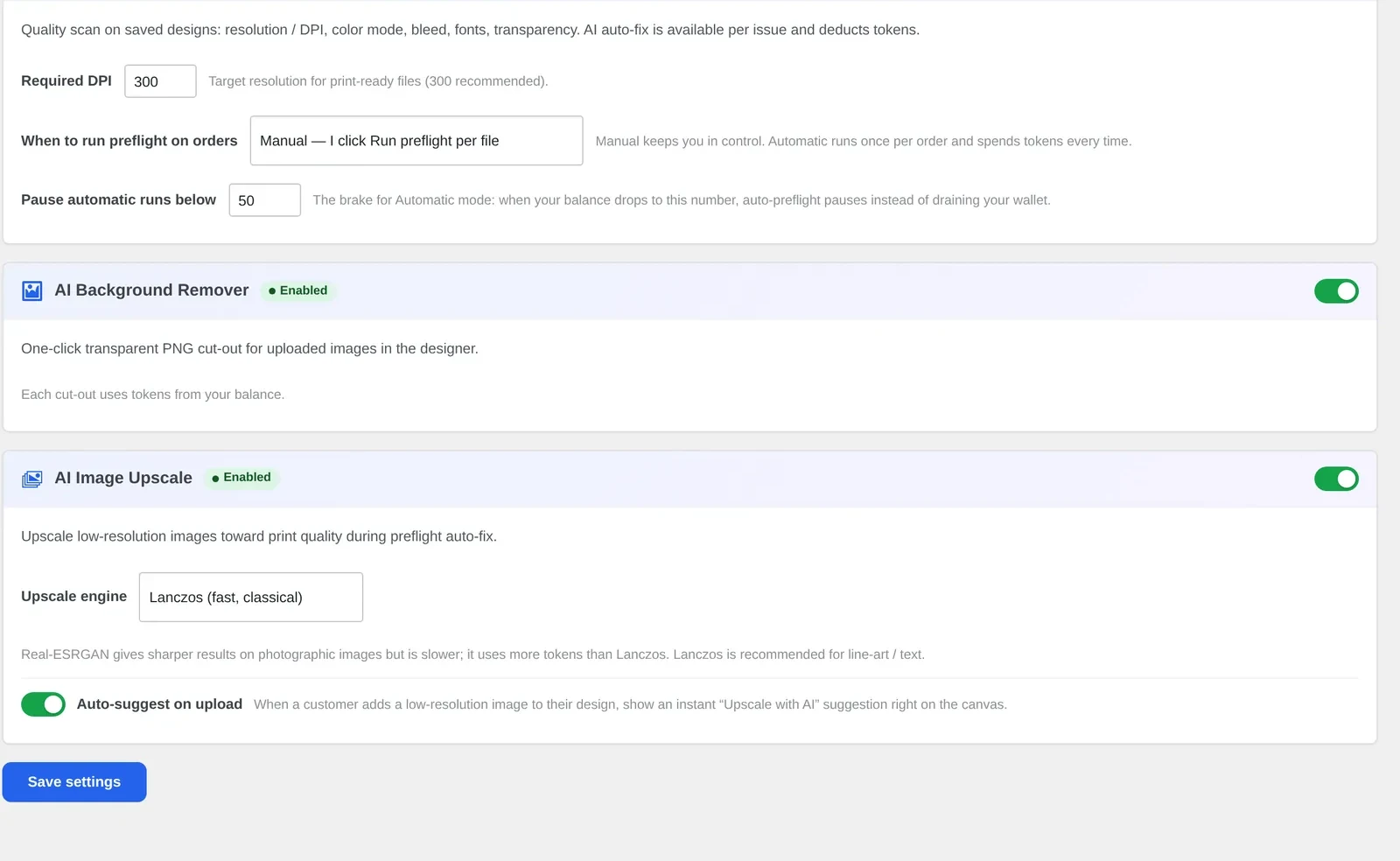

  3. Turn on the AI tools your buyers may use. In Cmsmart Cloud > AI Tools, under "AI for customers", enable AI Background Remover (one-click transparent cut-out) and AI Image Upscale for the design tool, with your own audience and daily usage limits.
  4. Turn on preflight on the admin side. In the same screen, Preflight Quality Checker scans saved designs for resolution/DPI, color mode, bleed, fonts and transparency; set a Required DPI and run it Manual (per file) or Automatic (per order). Each flagged issue can be AI auto-fixed individually, which spends tokens — this auto-fix is a wp-admin step on the order's saved design, not a buyer-facing feature.
  5. Receive the print-ready file. Turn on automatic print PDF export; since 2.17.0 the automatic PDF for custom-size products matches the size the buyer entered, and the order screen shows a print-ready status with a Regenerate button.
  6. Write down your printer spec. Sheet widths, maximum length, margins and the file format your RIP expects.
  7. Define customer inputs for the module. Upload limits, minimum DPI, copies, gaps, rotation, auto-pack or manual placement, saved sheets.
  8. Agree the approval step. Preflight and approve the artwork in Cmsmart > Orders before a sheet is released to print. Since 2.17.0, saving over a design whose order item is already approved is refused with a clear message, so an approved sheet cannot be overwritten by accident — a gang sheet approval step sits on the same lock.
  9. Walk the buyer path yourself. Open a product, click Start and upload design, finish a design, confirm it saves as "Your artwork" next to Add to cart, check the cart line item carries a preview, and step through checkout (stop before payment) — exactly what to scope the gang sheet version against.

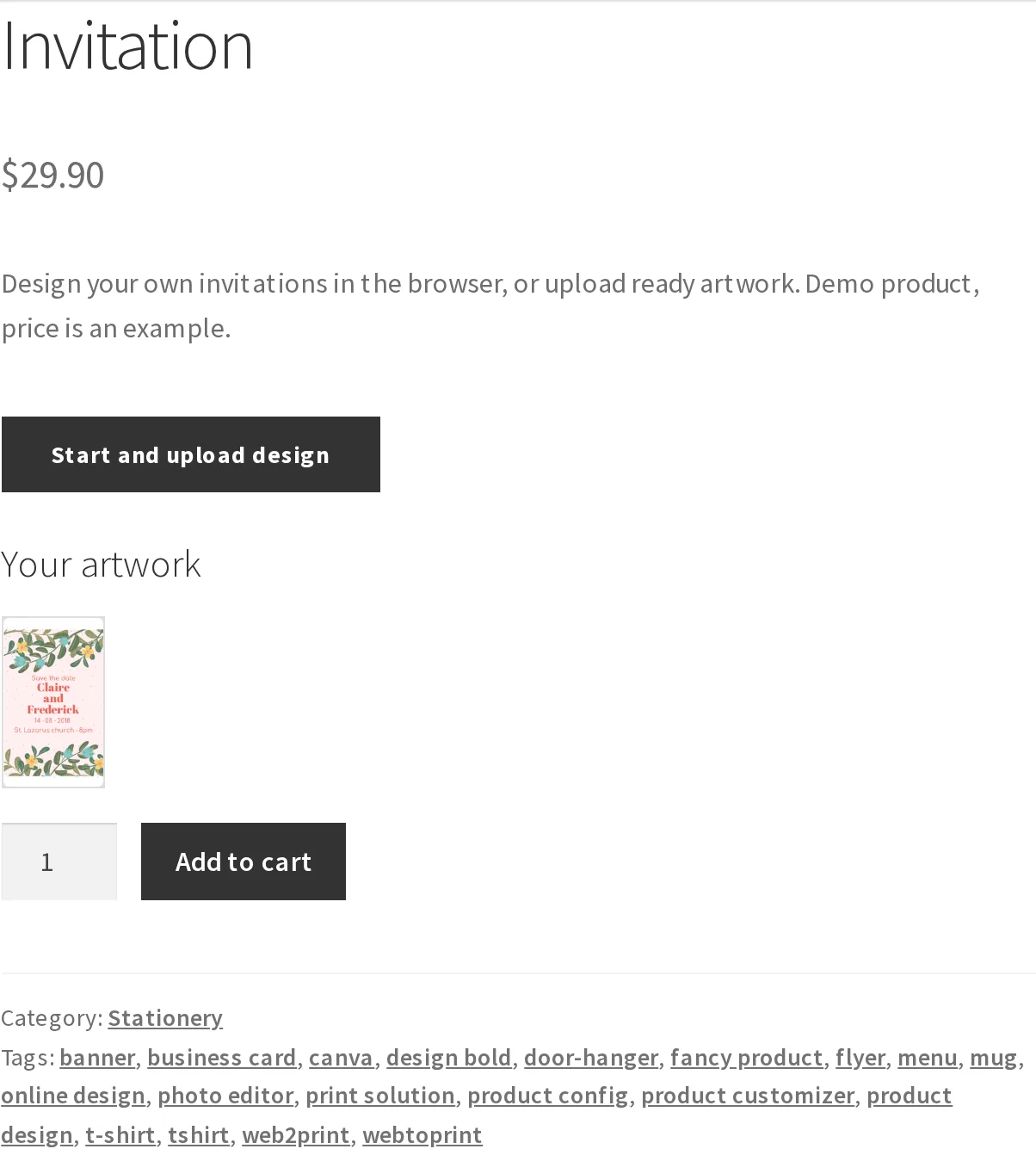

NBDesigner Your artwork confirmation after Process, next to Add to cart, on a DTF gang sheet builder software candidate product
After Process, the design saves as "Your artwork" next to Add to cart — the same confirmation moment a gang sheet checkout reuses per sheet.

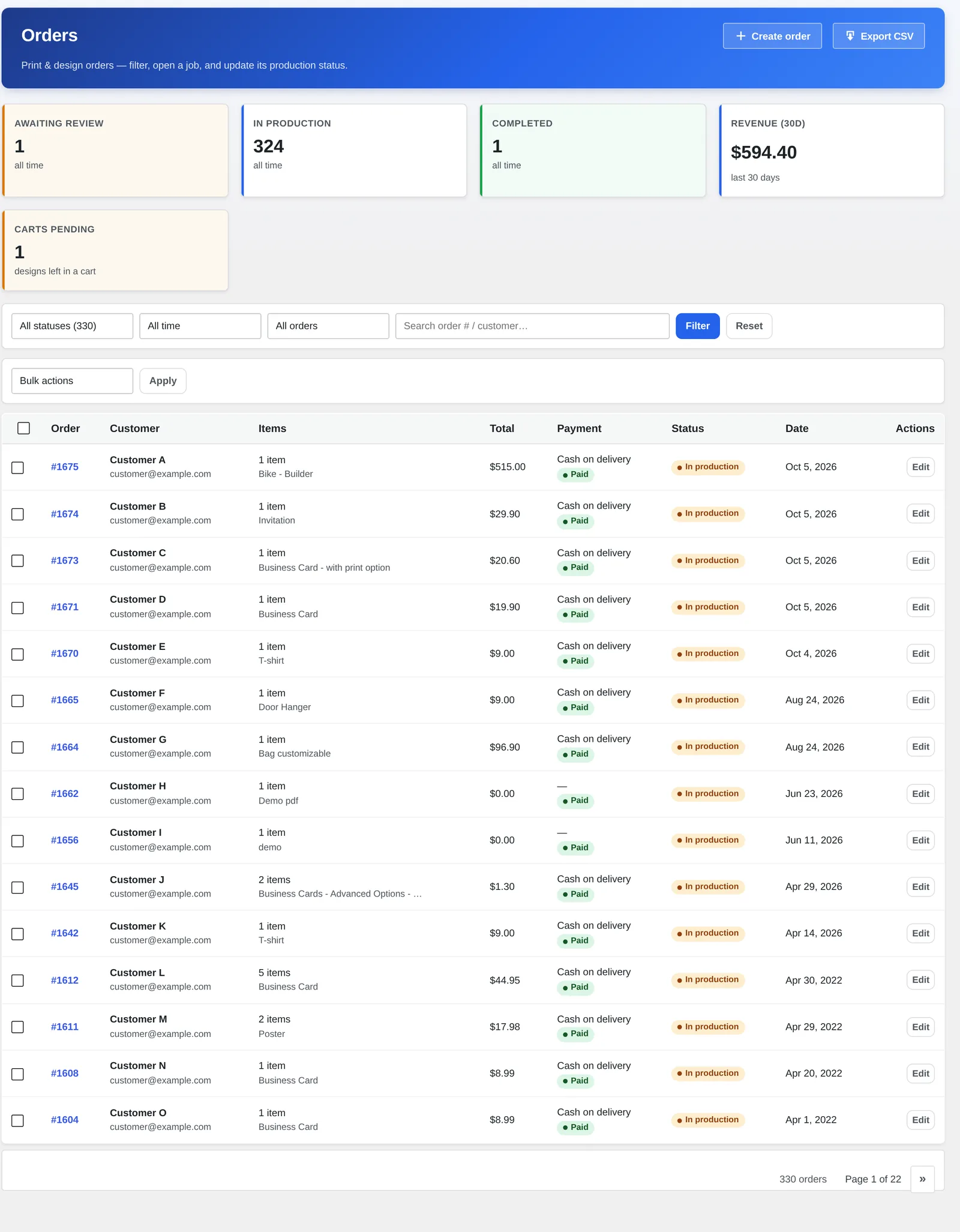

Cmsmart Orders dashboard today showing production status counts and the order list a gang sheet shop manages the same way
Cmsmart > Orders today: status counts and the order list your team already works from — a gang sheet order is one more row here, not a new screen.

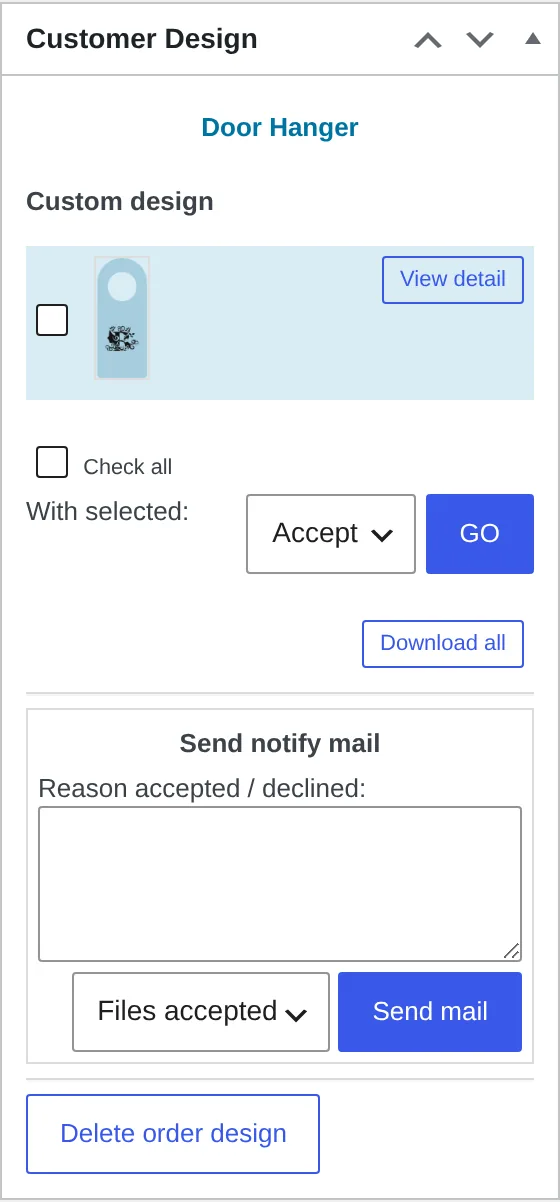

Customer Design box on the order screen with Accept, Download all and Send notify mail controls for approving artwork
The Customer Design box on the order screen today: accept or decline the artwork, download the file and notify the customer — the approval step a gang sheet release gate extends.

Related guides: the DPI and print quality guide and the price matrix guide.

Video thumbnail: how to use the WooCommerce product designer in the front end
Video: How to use WooCommerce product designer in front end (Cmsmart on YouTube) — the editor a gang sheet module extends.

Cmsmart insight: turn on the minimum upload resolution rule before a gang sheet project starts. Shops that skip it usually find out a logo was too small to print only after the sheet is already full.

Going Further: What Custom Development Can Cmsmart Add for DTF Shops?

Beyond the sheet builder, Cmsmart builds the pieces that let a DTF or transfer business scale online: sheet layout and pricing, a RIP hand-off, and a reorder portal for repeat apparel brands. Each ships as a project with discovery, solution design, sprints, QA, launch and support.

  • Gang sheet builder. Business reason: self-service layout instead of staff hours. We build sheet presets, copies, spacing, auto-pack, a sheet preview and save-and-reopen.
  • RIP hand-off. Business reason: no file handling by staff. We deliver sheet files by folder sync or API, in your naming scheme.
  • Sheet pricing rules. Business reason: fair, instant quotes. We build price-by-sheet-length, rush fees and volume pricing on top of the existing price matrix.
  • Reorder portal. Business reason: repeat revenue from brands. We let returning customers reorder a saved sheet in a few clicks.

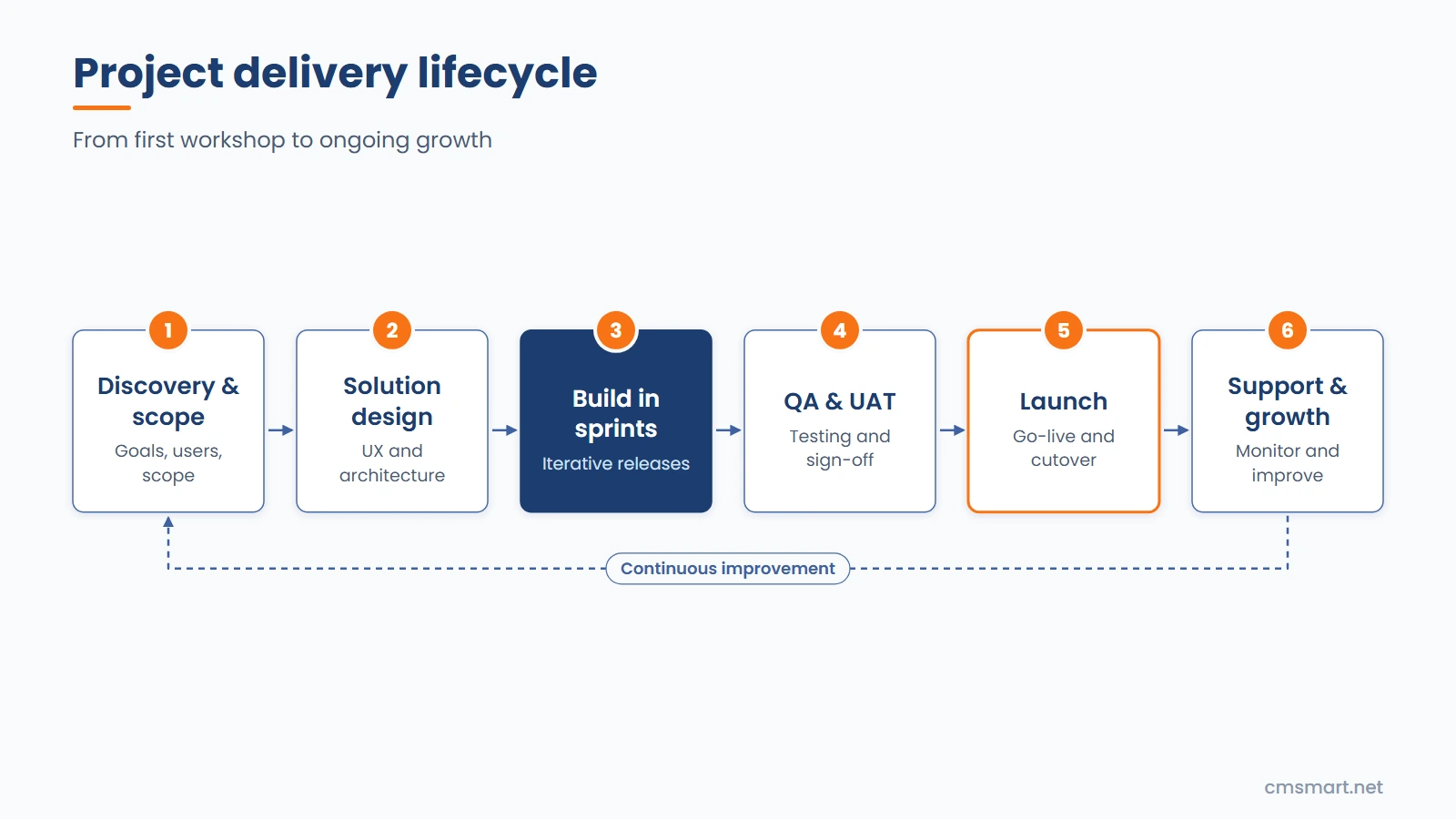

Cmsmart project delivery lifecycle for a custom DTF gang sheet builder software project
How Cmsmart delivers a custom gang sheet builder, from the first workshop through ongoing support.

See the ecommerce project delivery model for how discovery, solution design and sprints work in practice. Related delivery work: Custom print ordering experience and efficient custom product ordering for a printing client.

Get a gang sheet builder quote See product designer customization

Why Work With Cmsmart on a DTF Gang Sheet Build?

Cmsmart develops the Cmsmart Product Designer and has built ecommerce and web-to-print stores since 2012 as a division of Netbase JSC, so your gang sheet module is built by the team that owns the editor and the print-ready PDF pipeline it extends.

Our own records count 6,300+ client projects and 500+ custom development projects in 80+ countries (WorkSuite project records, Sep 2026), and Cmsmart is rated 4.2 on Trustpilot (404 reviews).

Frequently asked questions

Is a gang sheet builder included in Cmsmart Product Designer 2.17.0?

No. The plugin has the editor, Custom dimension fields, uploads, a price matrix and a print-ready PDF that matches the order; the sheet layout tool is built by Cmsmart as custom development.

Can I sell DTF transfers by size with the standard plugin today?

Yes. Use a Custom dimension field with a price matrix and quantity breaks, then receive the print-ready PDF after the customer clicks Process.

Can the builder clean up customer images automatically?

In the design tool, shoppers get one-click AI Background Remover and AI Image Upscale, with per-tool toggles and usage limits you control. Color, bleed and font checks — and their AI auto-fix — run only in wp-admin, on saved order designs, through Preflight Quality Checker. Wiring the upload-step tools into a gang sheet step is part of the custom build.

Does Cmsmart auto-fix color, bleed or font problems before printing?

On the admin side, yes: Preflight Quality Checker in Cmsmart Cloud > AI Tools scans saved designs (resolution, color mode, bleed, fonts, transparency) and can AI auto-fix each flagged issue, spending tokens. This is a wp-admin print-file check, not something a buyer triggers at checkout.

What file does my printer receive today, and what changes with a gang sheet builder?

Today, a print-ready PDF per design, with a Regenerate option on the order if it needs to be re-rendered. With a gang sheet module, Cmsmart delivers one sheet file per order in the format and naming your RIP expects.

How long does a gang sheet builder take to build?

It depends on your sheet presets, packing rules and pricing. Cmsmart gives a scoped plan and timeline after discovery with your printer spec.

Can returning customers reorder a saved sheet?

Not in the base plugin today. A reorder portal for saved sheets is one of the custom extensions Cmsmart can add alongside the gang sheet builder.
