Print-Ready PDF Orientation in Cmsmart Product Designer

Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 · Updated October 2026. Every screen below is captured from the live demo at nbdesigner.cmsmart.net. The Orientation field lives inside the order-level Create PDF tool, not the buyer-facing online designer — a distinction this guide exists to clear up.

In short

  • Orientation is a field inside Cmsmart Product Designer's Create PDF tool that sets whether a generated print file is Portrait or Landscape, separate from the automatic print-ready PDF every order already receives.
  • Since 2.17.0, that automatic print-ready PDF already reads the product's real width, height and orientation together, so staff only touch the Orientation field when a press or vendor needs a different layout.
  • Fixing or overriding it takes about two minutes on an existing order: open the design, open Create PDF, check Orientation, Paper Size and Margin, then generate.

Why does print-ready PDF orientation turn into a reprint problem?

A print file built in the wrong orientation prints a design sideways, oversized, or cropped against the bleed, and a shop usually finds out after the sheet has already run. Cmsmart Product Designer avoids that by locking an order's automatic print-ready PDF to the product's real page geometry, portrait or landscape, by default.

Most print and personalisation shops carry this cost quietly rather than as a line item:

  • Reprints. A door hanger, bookmark or long banner printed at the wrong orientation is unusable stock, plus the courier cost of sending a replacement.
  • Staff time re-exporting files. Someone has to notice the file is wrong, open the order, rebuild the PDF and re-upload it to the press — minutes per job that add up across dozens of daily orders.
  • Stale files on reorders. A reorder that copies the previous job's print file forward can ship a corrected design under the old, wrong-orientation artwork.
  • Vendor rejections. A print partner that expects a specific page direction for imposition will bounce a job back rather than rotate it for you.

The category is not shrinking: the global print-on-demand market was worth an estimated $10.8 billion in 2025 and is projected to reach $57.5 billion by 2033, a 23.6% compound annual growth rate, according to Grand View Research (2025). Shops adding personalised SKUs at that pace cannot afford to re-run a job because a PDF opened sideways.

Cmsmart insight: most "wrong orientation" tickets we see are not a bug in the print file at all — they are a product whose design area shape was set up landscape when the physical item is portrait (or the reverse). Check the product's design area before touching Create PDF; fixing the product fixes every future order, while fixing one PDF only fixes that order.

What does a correctly oriented order look like in practice?

In Cmsmart Product Designer, a buyer's canvas opens in the product's real proportions, the design they finish stays at that size and orientation through checkout, and the print-ready PDF that lands on the order matches it exactly — with no admin step required unless the shop wants a different layout.

Example scenario. A shopper opens a door hanger product on a phone, picks "Design here online," adds their text and artwork, and checks out. The product's design area is already portrait (2.2 × 5 in), so the canvas, the cart thumbnail and the print-ready PDF all stay portrait without anyone touching a setting. Mobile matters here: mobile commerce revenue is on track to reach roughly $2.5 trillion in 2025 and grow to 63% of total retail ecommerce by 2029, per Statista, so a design tool that keeps proportions correct on a small screen is covering most of tomorrow's orders, not an edge case.

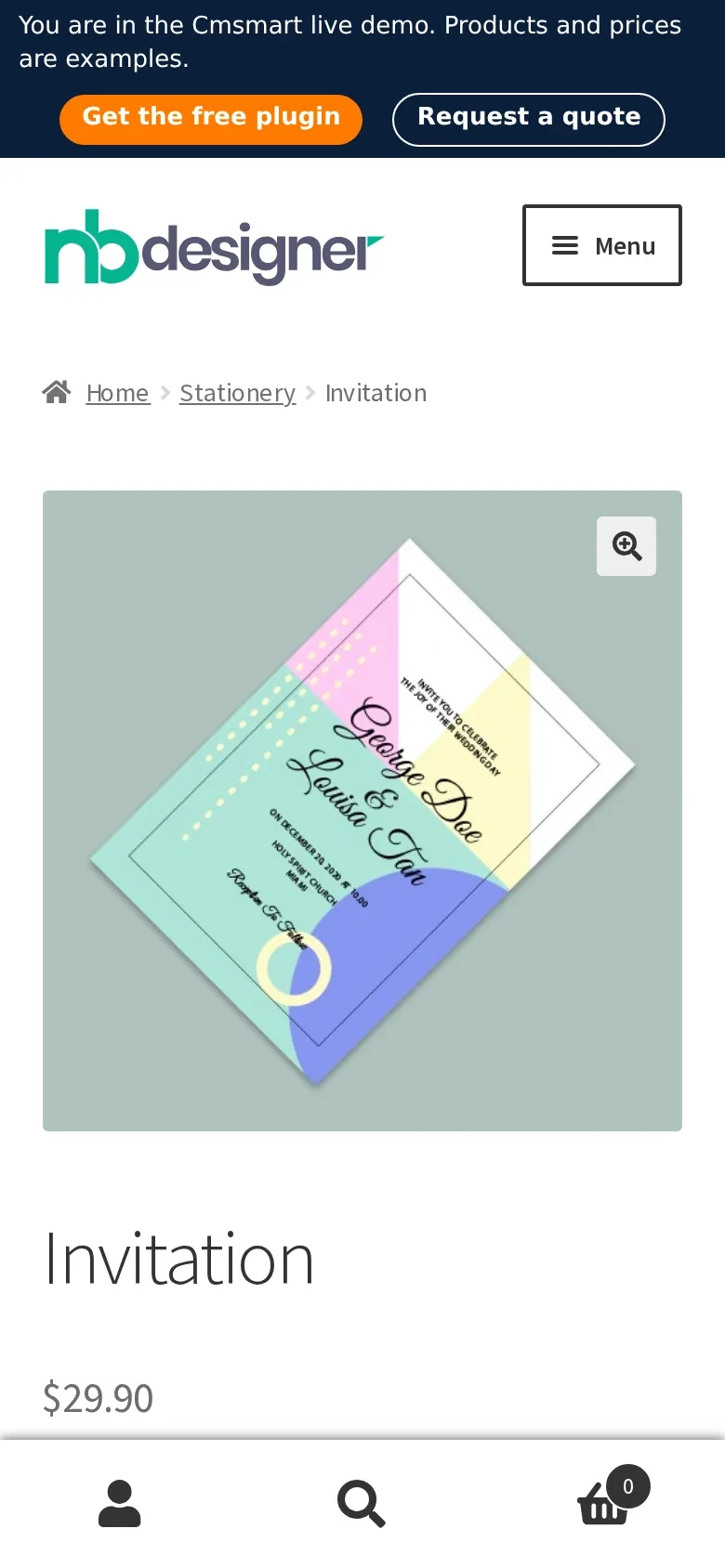

NBDesigner product page on a mobile phone showing a portrait invitation product
The mobile product page keeps the product's real orientation before the buyer even opens the designer.

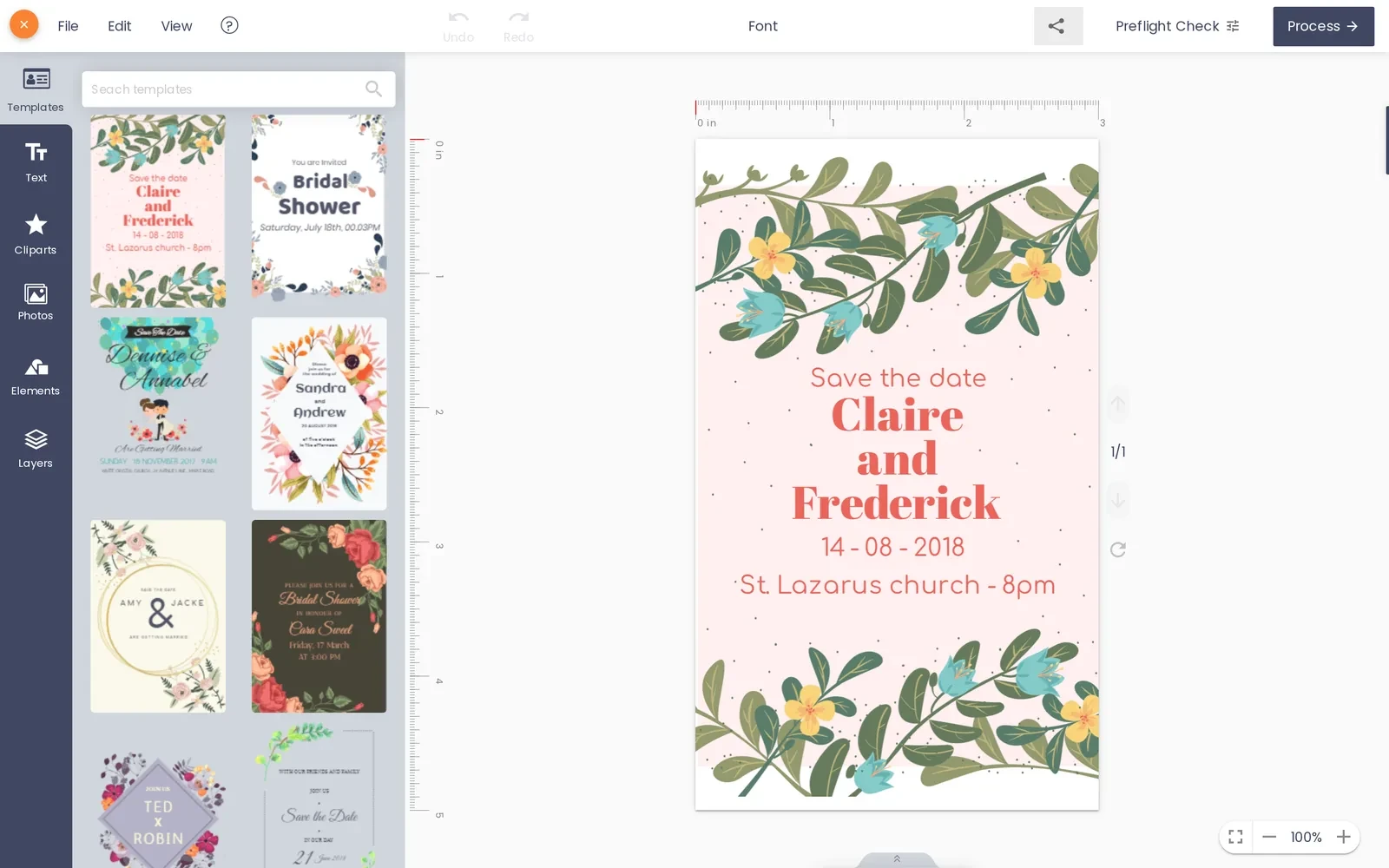

Online designer canvas open on a portrait invitation design with a ruler showing inches
The online designer canvas opens at the product's real width and height, ruler included.

How does Cmsmart control orientation from product to print file?

Cmsmart Product Designer carries a product's width, height and orientation from the design area through the online designer, the automatic export, and the order's Create PDF tool, so the same geometry shows up at every stage — and the Orientation field only needs attention when a shop deliberately wants a different layout.

Five building blocks carry orientation through an order, in this order:

  • Design area (product setup). Width, height and shape are set once per product and define its natural orientation.
  • Online designer canvas (buyer side). The buyer's stage opens to that geometry; since 2.17.0 a tablet rotation or a window resize keeps the artwork at its saved scale instead of stretching or shrinking it when the device flips between portrait and landscape.
  • Automatic export (Process / order status). With Output → Auto export design to PDF on, the print-ready PDF renders in the background and the order status re-checks it, rendering again only if the file is missing or out of date.
  • Create PDF (order screen). Default settings reproduce the same print-ready file; changing Paper Size, Orientation, Margin or Background builds a separate custom layout instead.
  • Download design. SVG, PNG, high-resolution JPG with CMYK/ICC profile, and PDF are all available once a print-ready or custom file exists.

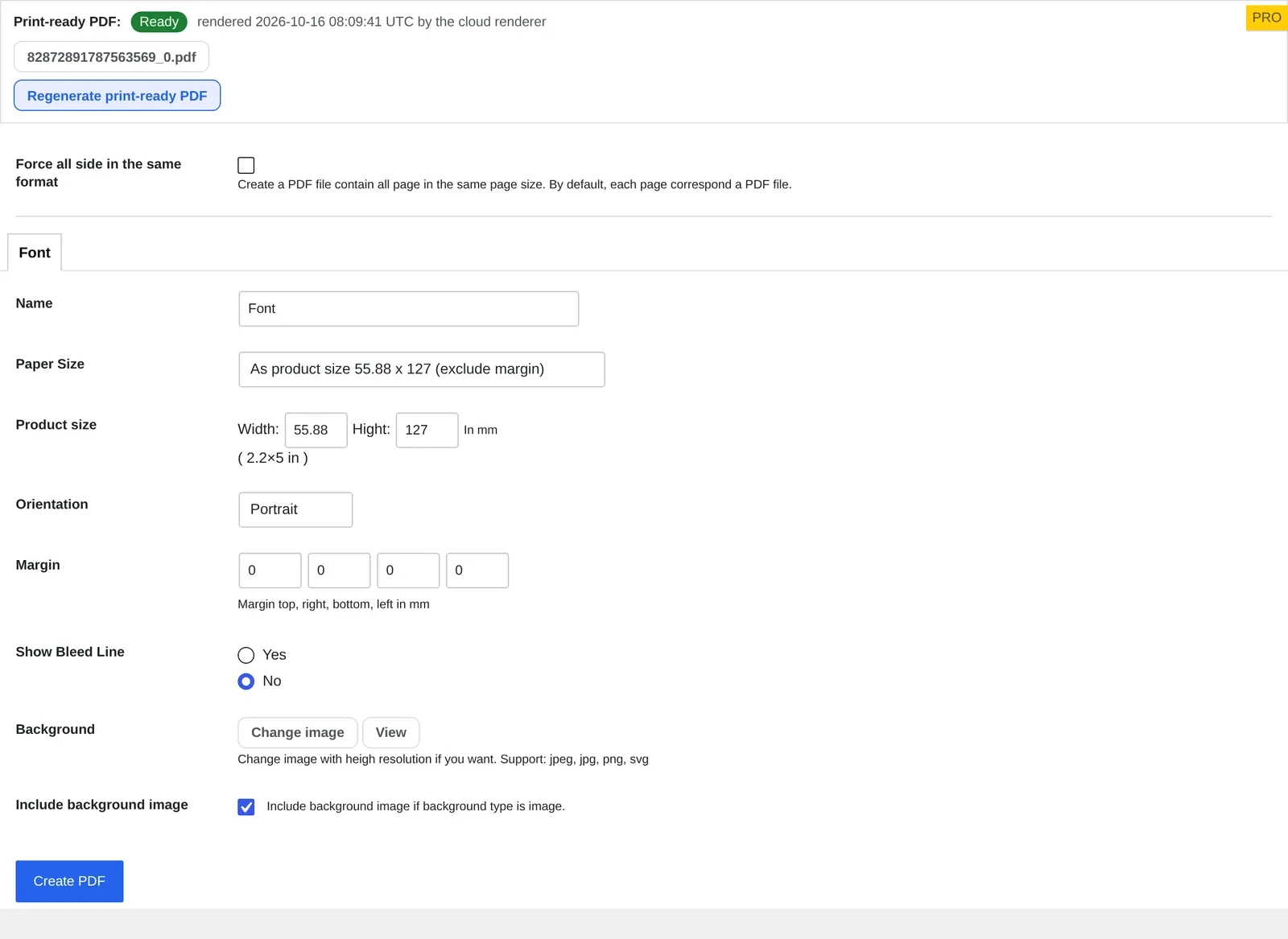

Print-ready PDF orientation field set to Portrait in the Create PDF panel of Cmsmart Product Designer
The Create PDF tool on an order's design: Paper Size, Product size, Orientation and Margin, with the print-ready PDF status above.

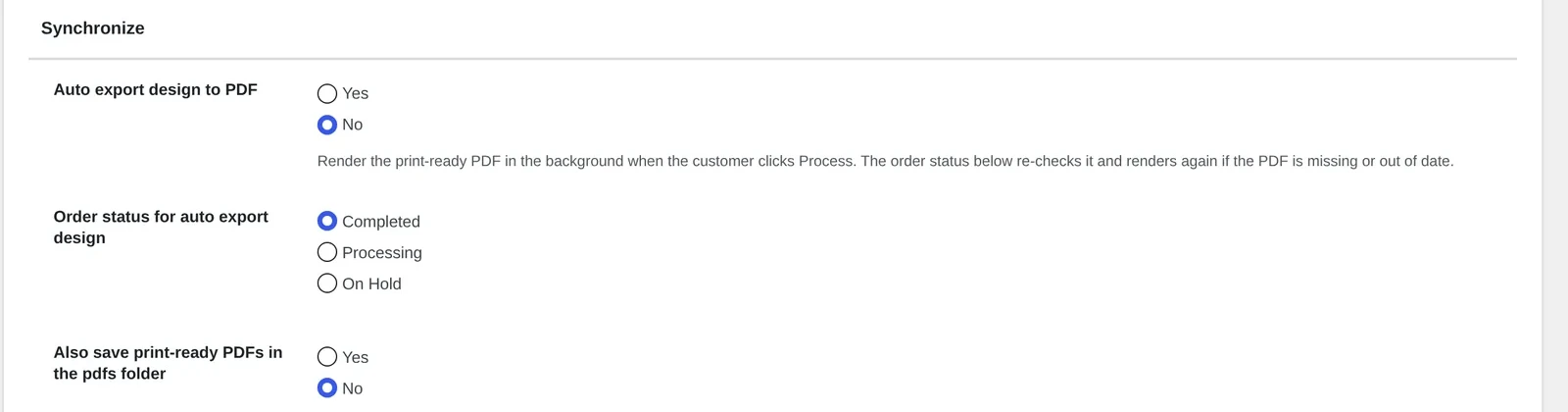

WooCommerce Cmsmart Output settings showing Auto export design to PDF and order status options
Output → Synchronize controls when the automatic print-ready PDF renders, independently of any custom layout made in Create PDF.
Manual PDF proofingCmsmart Product Designer
Staff rebuild a layout file by hand for every custom orderThe print-ready PDF renders automatically and matches the order's real geometry
Orientation mistakes surface after the sheet has printedA Ready / Rendering / Failed / Not rendered status shows on the order before anyone downloads a file
A reorder can quietly reuse the previous, possibly wrong, PDFA reorder always queues a fresh render instead of copying the old file forward
A different press needs a one-off request to the design teamCreate PDF lets staff set Paper Size, Orientation and Margin for that one job in minutes

What's the business value of getting print file orientation right?

For a WooCommerce print shop, matching orientation automatically turns into fewer reprints, less staff time per order and a print-ready PDF a press can trust without a manual check — three business outcomes that compound as a store adds more personalised, print-on-demand SKUs.

BenefitHow it shows up in your businessKPI to track
Fewer reprintsPress runs match the ordered item the first timeReprint rate (reprints ÷ orders shipped)
Less staff time per orderStaff open Create PDF only for genuine exceptions, not every orderMinutes spent per order in the design/print queue
Fewer vendor rejectionsA press gets the Paper Size and Orientation it asked for on the first fileJobs returned by a print partner per month
Confidence on mobileA design started on a phone ships at the same proportions it was built inShare of orders placed on mobile that need a manual fix

Quick worksheet. Multiply your own numbers: (orders per month) × (current reprint rate) × (cost per reprint, including stock and shipping) gives a rough monthly cost of orientation and sizing mistakes today. Compare it against the minutes a designer or admin spends per order checking Create PDF manually, at your fully loaded hourly rate.

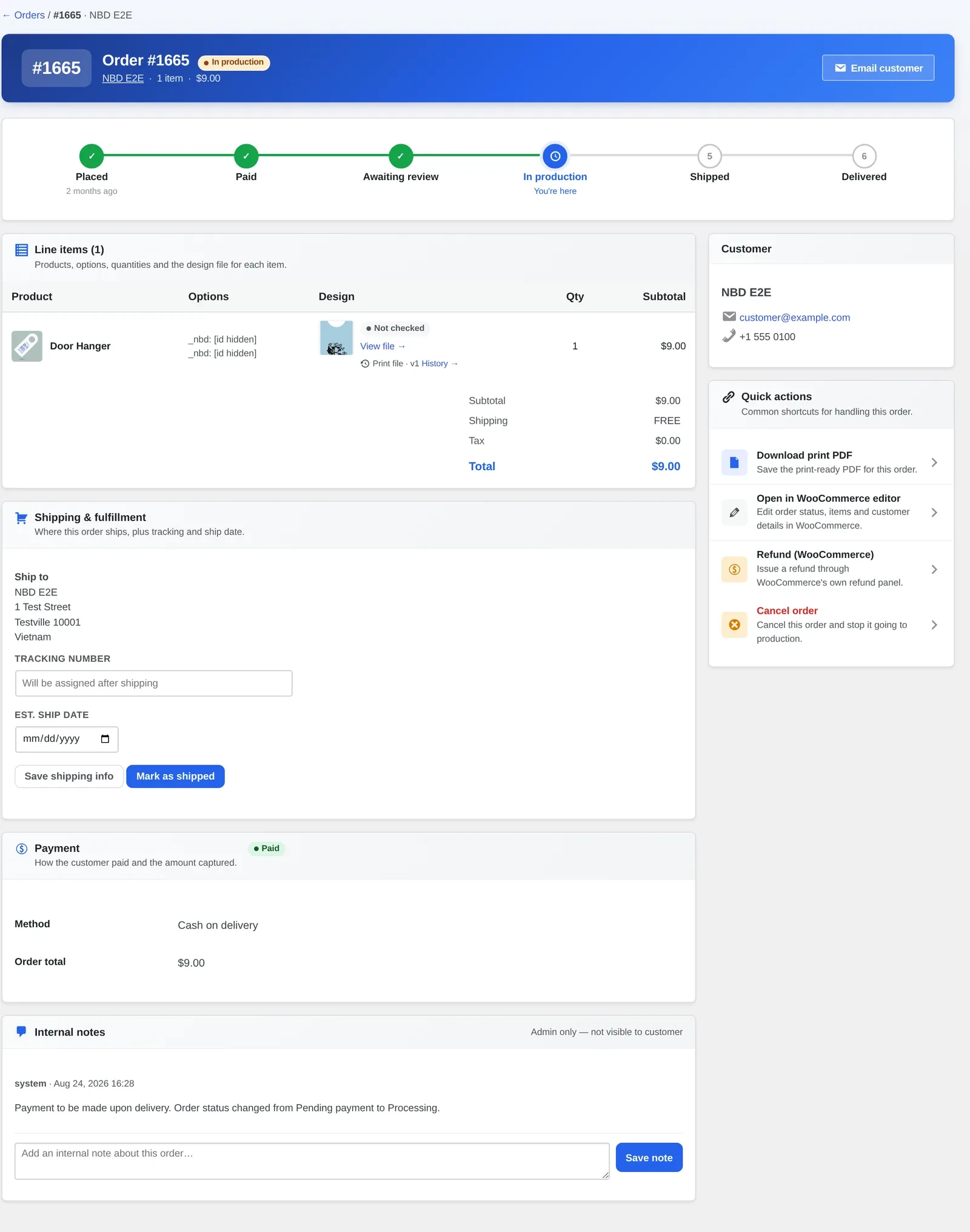

WooCommerce order detail screen with a Download print PDF quick action next to the design
Where orientation ends up for fulfillment: the order detail screen's Download print PDF action pulls the same file Create PDF builds.

How do you set up and override Orientation in Cmsmart Product Designer?

To configure Orientation, open the order's design in wp-admin, go to Create PDF, and change Paper Size, Orientation and Margin only when a press needs a layout different from the automatic print-ready file — otherwise leave the defaults so the print-ready PDF keeps matching the order on its own.

  1. In wp-admin, go to Cmsmart → Orders and open the order.
  2. Under Line items, open the design's View file link to reach "Detail product design."
  3. Check the Print-ready PDF badge at the top: Ready, Rendering, Failed or Not rendered.
  4. Open the Create PDF tab.
  5. Leave Paper Size on "As product size" if you only want the standard print-ready file — this already carries the right Orientation.
  6. If a vendor needs a different sheet, change Paper Size first, then set Orientation to Portrait or Landscape for that layout.
  7. Set Margin (top, right, bottom, left, in mm) and Show Bleed Line if the press requires them.
  8. Click Create PDF and wait for the renderer to finish.
  9. Open Download design to pull SVG, PNG, JPG (CMYK with ICC profile) or PDF in the layout you just built.
  10. If you only need to refresh the default file, use Regenerate print-ready PDF instead of building a custom layout.

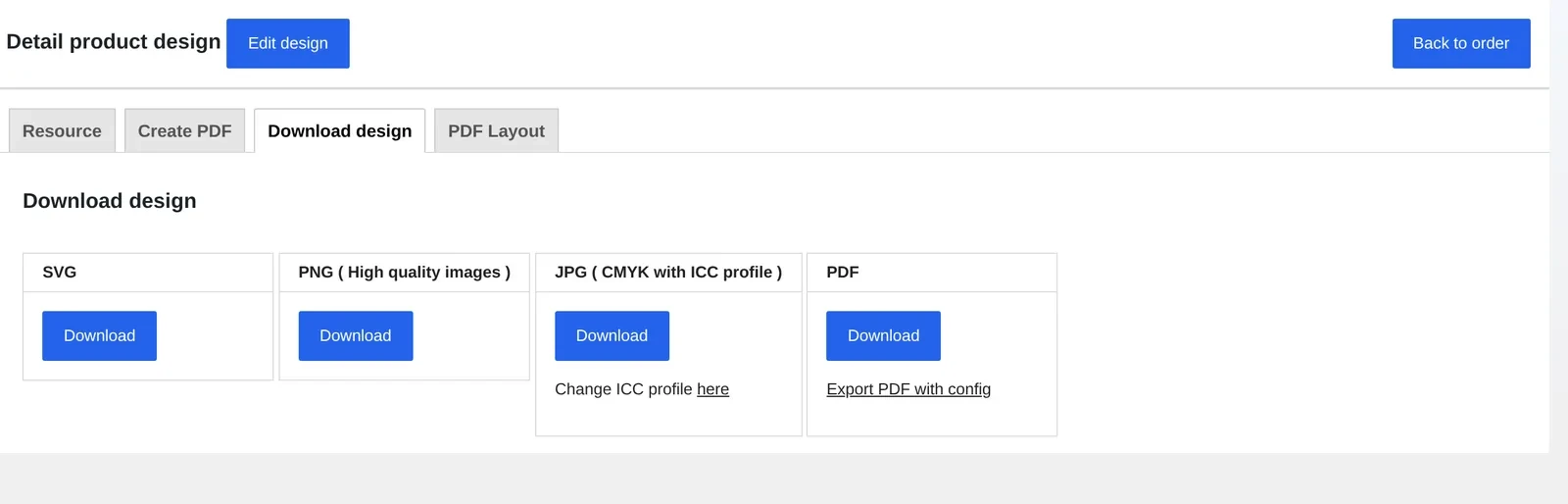

Download design panel in Cmsmart Product Designer with SVG, PNG, JPG CMYK and PDF options
Download design offers the custom layout (or the print-ready file) as SVG, PNG, CMYK JPG or PDF.

If the issue is the product's own width and height rather than its page direction, that is a product-level setting, not a Create PDF field — see our companion guide on how to configure Custom dimensions and where it displays. For the export pipeline itself, our older walkthrough on exporting a design online as a PDF covers the automatic side in more depth.

Video thumbnail: How to create area design shape for online design in NBDesigner
Video: How to Create Area Design Shape For Online Design — the product-level setting behind a design's natural orientation (Cmsmart on YouTube).

What can Cmsmart build beyond the standard Orientation field?

Cmsmart Product Designer's Create PDF tool covers one order at a time; shops running higher volume or working with multiple presses often need orientation, paper size and imposition rules applied automatically. Cmsmart builds that as custom development on top of the plugin, keeping the standard Create PDF tool intact for everyone else.

  • Per-vendor print profiles. A shop sending jobs to several presses with different orientation and margin requirements needs that logic applied without a manual Create PDF step on every order — Cmsmart builds vendor profiles that set Paper Size, Orientation and Margin automatically by product type or destination press.
  • Multi-order imposition. Ganging several small print-ready PDFs onto one press sheet, keeping each one's orientation correct, is custom work Cmsmart builds on top of the standard, one-order-at-a-time Create PDF tool.
  • ERP/MIS hand-off. A shop whose production system expects oriented, print-ready files pushed automatically gets that connection as custom development, rather than staff downloading files from each order by hand.
  • AI preflight tuned to orientation. Beyond the built-in Preflight check, Cmsmart builds stricter rules that flag a design likely heading for the wrong page direction before it ever reaches Create PDF.

Custom work like this follows the same delivery model across every Cmsmart project: discovery, solution design, build in sprints, QA against your real catalogue, launch, and ongoing support — the same approach behind the case studies on Cmsmart's ecommerce projects page.

Plan my print-ready PDF workflow

Why work with Cmsmart on your print-ready pipeline?

Cmsmart has built web-to-print and product-customisation projects since 2012 as a Netbase JSC division, and the Cmsmart Product Designer plugin and the custom development built on top of it come from the same team that supports the orders running through your store today, including the orientation and print-file questions in this guide.

Cmsmart has delivered 4,600+ projects across 6,300+ client engagements since 2012, with 1,800+ stores live today across 80+ countries, and holds a 4.2-star rating from 404 reviews on Trustpilot. A recent five-star review from a web developer in the UK speaks directly to the orientation question this guide covers:

“The designer works exceptionally well across all devices and allows us to create the exact customisations required to perfectly fit our products and our business model.” — Web Developer, United Kingdom, Trustpilot

Cmsmart Product Designer is part of a wider web-to-print platform; see the plugin's product page for the full feature set, or talk to the team about tailored product designer customisation for your catalogue.

Frequently asked questions

What's the difference between Orientation in Create PDF and the product's design area shape?

The design area shape, set once per product, defines the product's natural width, height and orientation for every order. The Orientation field in Create PDF only applies to one order's custom layout and does not change the product setup.

Does changing Orientation in Create PDF affect what the buyer saw in the online designer?

No. The buyer's canvas and the design they approved are unchanged; Create PDF only builds an additional output file from the design that already exists on the order.

Will building a custom layout overwrite my print-ready PDF?

No. Changing Paper Size, Orientation, Margin or Background in Create PDF produces a separate custom layout. The print-ready PDF used for automatic export stays the file created with the default settings, and Regenerate print-ready PDF rebuilds that one specifically.

Does this work with WooCommerce's High-Performance Order Storage (HPOS)?

Yes. The order design screens, including Create PDF, run on both WooCommerce's classic order storage and the newer High-Performance Order Storage.

What happens to the print file when a customer reorders?

Since 2.17.0, a reorder starts a fresh render instead of copying the previous order's PDFs forward, so a corrected design is never shipped under old artwork.

Can Cmsmart automate orientation choices per print vendor or product type?

Yes, as custom development. The standard Create PDF tool is a manual, per-order control; vendor-specific automation is built on top of it for shops that need it.
