Custom Print Order Management for WooCommerce Shops

Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 · Updated October 2026. This guide covers custom print order management for WooCommerce: reviewing artwork, approving it, generating a print-ready PDF and downloading production files.

In short

  • Outcome: every custom WooCommerce order reaches your press as an approved, print-ready PDF instead of a design file stuck in someone's inbox.
  • How it works: Cmsmart Product Designer attaches the artwork, the approval status and the print-ready PDF straight to the WooCommerce order, from Orders through Create PDF to Download design.
  • What it takes: NBDesigner 2.17.x on WooCommerce, plus about 15 minutes to walk your production team through the four admin screens below.

Where do custom WooCommerce orders actually slow down?

Cmsmart Product Designer keeps every customer's artwork, approval status and print-ready PDF attached to the WooCommerce order itself, so a print shop's team stops hunting through email threads and shared drives for the right file version before a job can go to press.

Talk to any WooCommerce print shop running a product designer and the same problems come up:

  • Proofs live in email, not the order. A customer's final artwork gets approved in a reply-all thread nobody on the production floor can see.
  • No single view of what's waiting on you. Orders pile up in the awaiting-review queue while staff check three different tools to find out which ones.
  • Reprints from files nobody checked. A design saved at low resolution or in the wrong color mode looks fine on screen and wrong on the sheet.
  • Re-keying order details into design software. Someone retypes sizes, quantities and due dates instead of reading them off the order.
  • Slow turnaround costs repeat business. B2B buyers who reorder often won't wait two days for a proof reply.

Here's a quick way to size the cost: if a production coordinator spends even 10 minutes per order chasing a proof by email or phone, and your store ships 50 custom orders a week, that's more than 8 hours — a full working day — spent on file-chasing instead of production, every single week.

That cost compounds as custom and personalized print volume grows: the global print-on-demand market was valued at $10.8 billion in 2025 and is projected to grow at a 23.6% CAGR through 2033 (Grand View Research, 2025). More custom orders means more files to check by hand — unless the checking is built into the order screen itself.

Cmsmart insight: In our delivery projects, most reprint costs trace back to a file that was approved without ever being checked for resolution or color mode — not to a mistake in the original artwork. Catching that before approval is cheaper than catching it on the press.

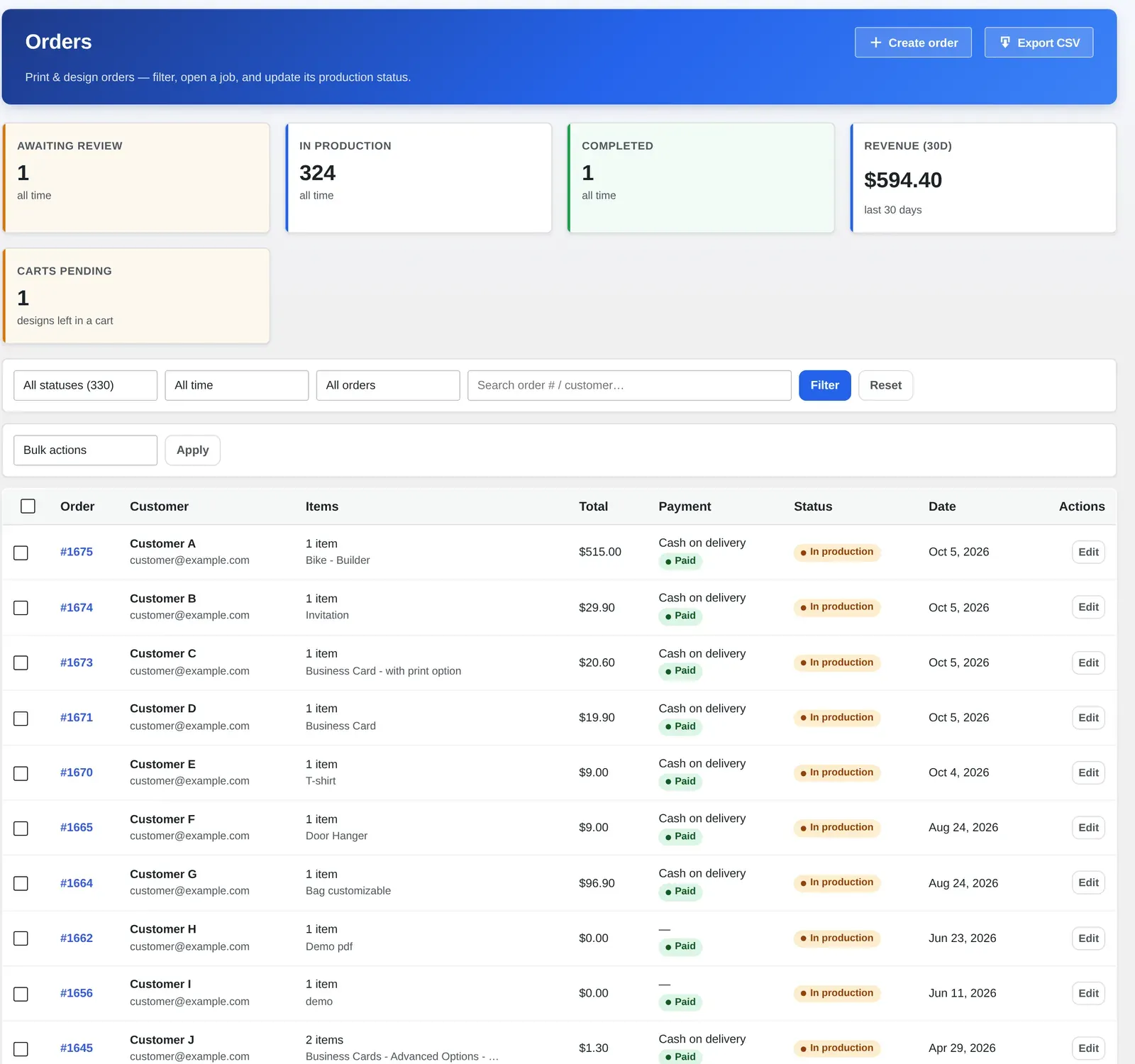

Custom print order management for WooCommerce: the Orders dashboard in Cmsmart Product Designer showing awaiting review and carts pending tiles
The Orders dashboard flags what's waiting on your team before it turns into a late job.

What does an organized custom-order workflow look like?

With Cmsmart Product Designer, a custom order moves from checkout to an approved, print-ready PDF without leaving WooCommerce admin — your team reviews the artwork, approves it and downloads a production-ready file from the same order screen, with no email round-trip in between.

Example scenario: A buyer finishes designing a run of business cards at 11pm and checks out. The next morning, a production coordinator opens Orders, sees the job sitting in Awaiting review, opens the Customer Design box, checks the proof, ticks Accept and clicks Go. The print-ready PDF is already rendered and waiting under Create PDF — no email, no re-upload, no guessing which file is final.

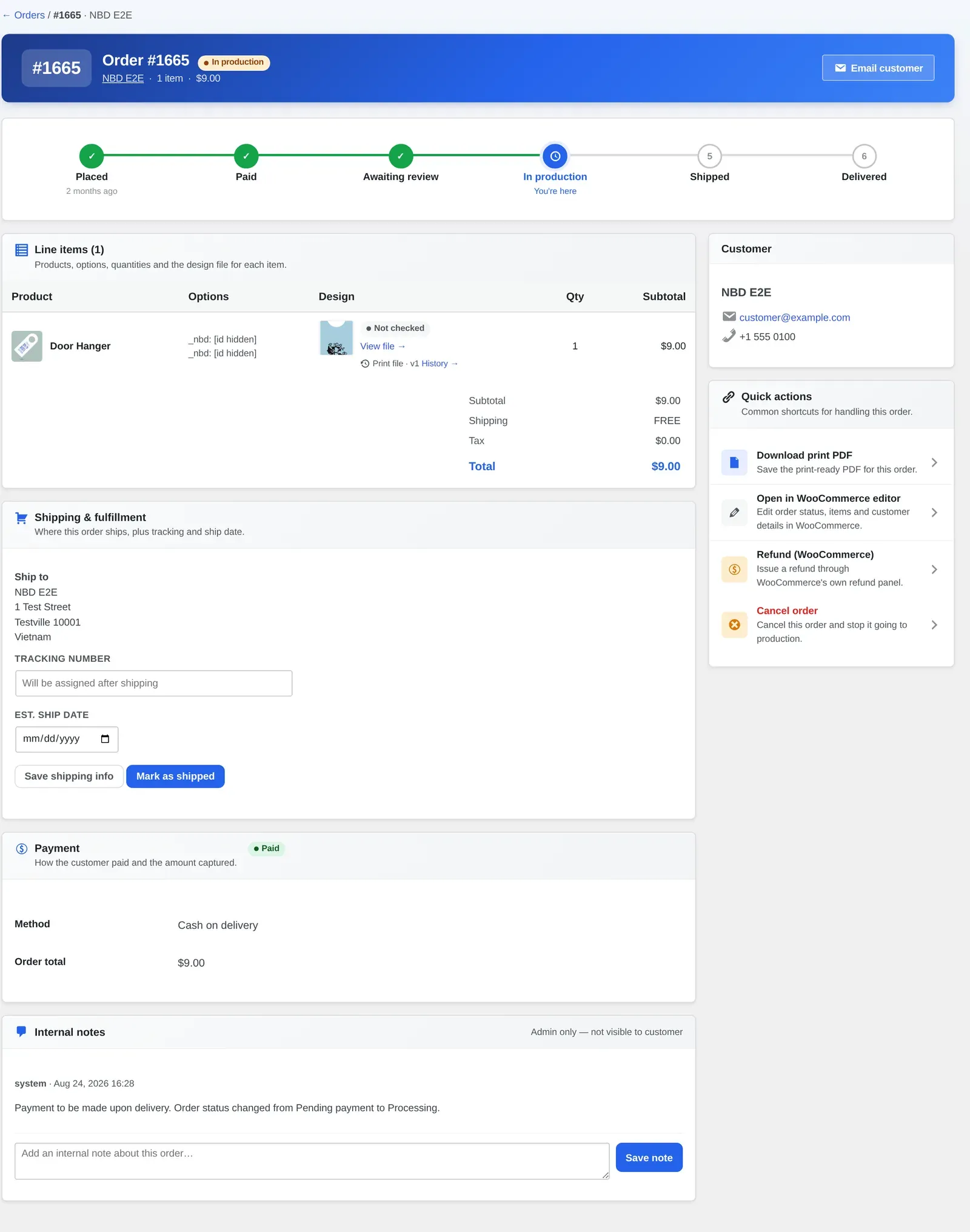

WooCommerce order detail screen showing order status timeline, line items and a Download print PDF quick action
The order detail screen carries the design, its status and a one-click print PDF download alongside the usual WooCommerce order data.

How does Cmsmart turn a WooCommerce order into a print-ready file?

Cmsmart Product Designer links four building blocks to every order: the online designer that captures the artwork, the Customer Design approval box, the Create PDF and Cmsmart Cloud renderer that builds the print-ready file, and the Download design tab that exports it in the format your press needs.

WooCommerce's own order screen already holds payment, shipping and status for every sale (WooCommerce, 2026); Cmsmart adds the design, its approval state and the print file to that same record, so staff check one screen instead of three. Here's what's built into NBDesigner 2.17.x today versus what we build as custom development:

  • Storefront and designer (built in). The buyer designs or uploads artwork on the product page; Cmsmart Product Designer (NBDesigner) saves it to the WooCommerce order at checkout.
  • Customer Design approval (built in). The order screen's Customer Design box lets staff accept or decline each file, with a reason sent back to the buyer.
  • Create PDF and Cmsmart Cloud rendering (built in, 2.17). Create PDF with its default settings makes the same print-ready PDF the cloud renderer and the order screen both use, not a separate custom layout — and the order screen shows whether that PDF is Ready, Rendering, Failed or Not rendered.
  • Download design (built in). SVG, PNG, JPG (CMYK with an ICC color profile, the International Color Consortium standard most print services expect) and PDF formats are one click away for the team sending files to press.
  • Approved-artwork lock (built in, 2.17). Once an order item is approved, saving over that design is refused on the server, so a late edit can't quietly replace a file your press already has.
  • ERP/MIS hand-off and production routing (custom development). Pushing an approved order straight into your MIS or print-production queue isn't a core feature — it's something Cmsmart builds for stores that need it.
Manual email proofing vs. the Cmsmart order workflow
StepManual email proofingCmsmart order workflow
Where the file livesEmail attachments and shared drivesAttached to the WooCommerce order
Who approves itWhoever replies to the thread firstCustomer Design box, with a record on the order
Print fileRe-exported by hand from the design filePrint-ready PDF rendered by Cmsmart Cloud
Color settingChecked, or not, before exportJPG/PDF export carries CMYK + an ICC profile
TurnaroundHours to days, depending on who's freeMinutes, inside the order screen

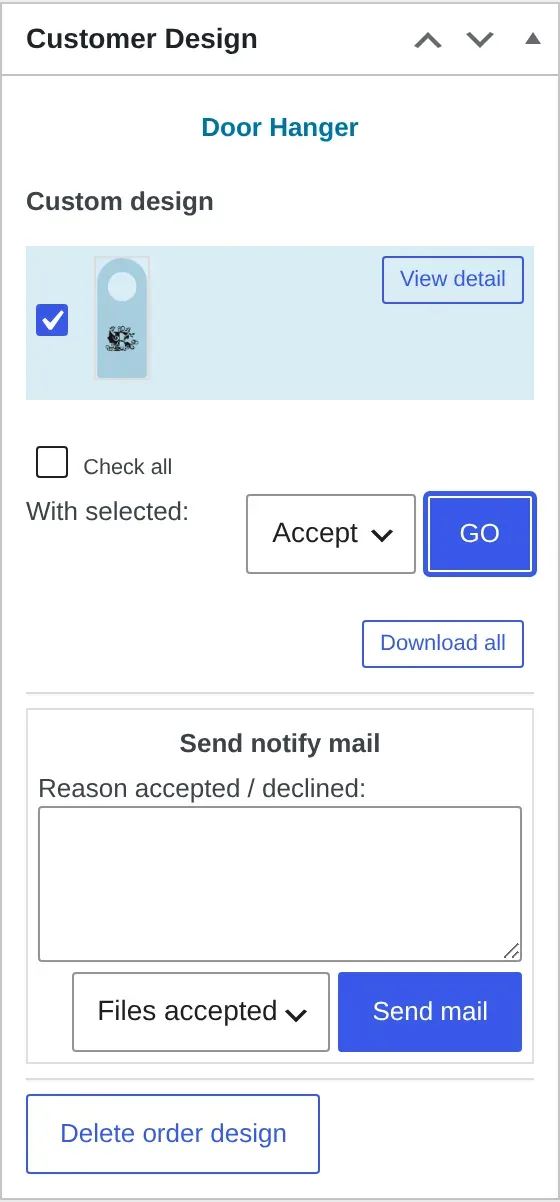

Customer Design approval box in the WooCommerce order screen with artwork checked and Accept selected
Approving, or declining, a customer's artwork happens in the order screen's Customer Design box.

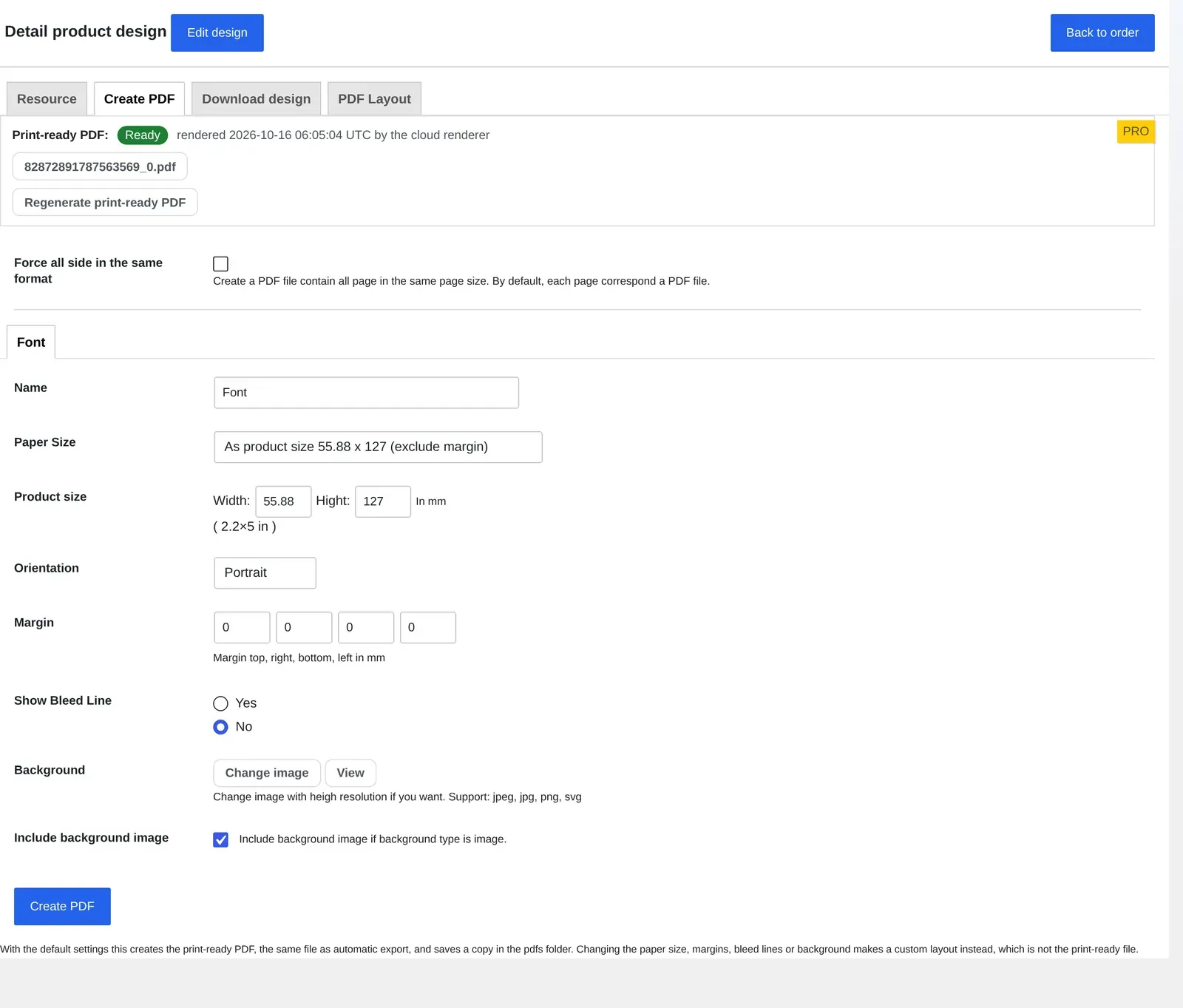

Create PDF tab showing print-ready PDF status Ready, rendered by the cloud renderer
Create PDF with the default settings produces the same print-ready PDF the cloud renderer already built — status, filename and a Regenerate button all live here.

What's the ROI of custom print order management for WooCommerce?

Cmsmart Product Designer turns order approval and print-ready files into a measurable part of your operation: fewer reprints from low-DPI or wrong-color files, faster turnaround from checkout to press, and staff hours back that used to go into chasing proofs by email.

Where the value shows up
BenefitHow it shows up in your businessKPI to track
Fewer reprintsLow-DPI or wrong-profile files get caught before they're approved, not after they're printedReprint rate (reprints ÷ total orders)
Faster turnaroundApproval and print-ready PDF happen inside the order screen, not over emailHours from order placed to PDF status Ready
Staff time backNo re-keying order details into separate design softwareMinutes of staff time per order
Approval visibilityEvery order shows Approved / Needs fix / Pending in one placeOrders sitting in Awaiting review at any time

Rough-cut ROI worksheet — put your own numbers in:

  • Staff time: (orders per month) × (minutes saved per order on proofing and re-keying) ÷ 60 × (hourly labor cost) = monthly hours and dollars back.
  • Reprints avoided: (current reprint rate) × (orders per month) × (average cost per reprint) = monthly reprint cost you stop paying.
  • Turnaround: (hours from order to press today) − (hours once approval and the print-ready PDF live in the order screen) = days shaved off every rush job.

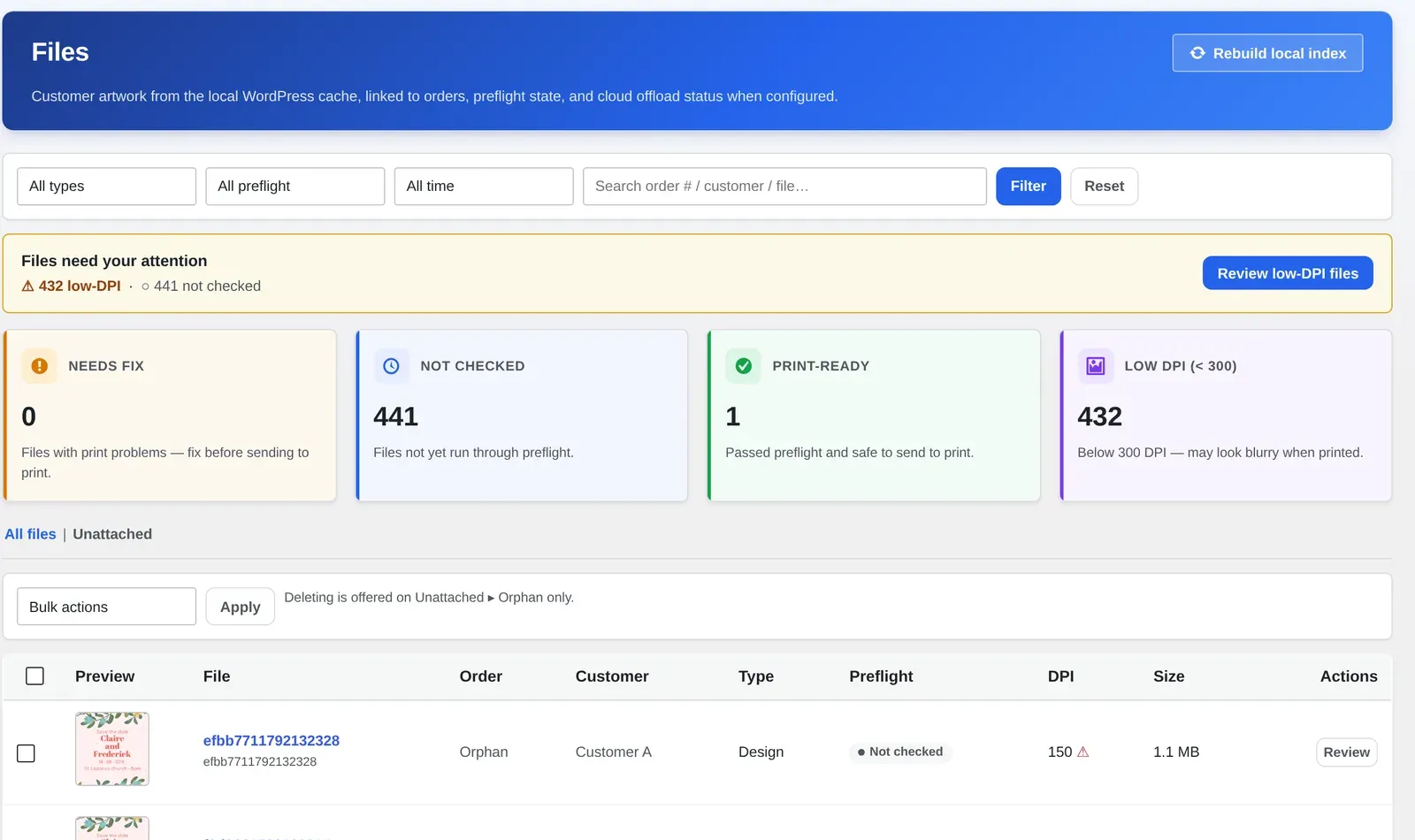

Files screen showing files flagged low-DPI and files that are print-ready
The Files screen totals how many designs are print-ready versus flagged low-DPI — a running measure of your reprint risk.

How do you set up order approval and print-ready PDFs in NBDesigner?

Setting up Cmsmart Product Designer's order workflow means configuring a handful of settings once — output quality, cloud rendering, upload rules — then using the same four order-screen steps for every custom order that comes in afterward, so new staff can follow it without guesswork.

  1. Open WooCommerce → Cmsmart → Output and set your default DPI, bleed and watermark rules so every print-ready PDF meets your print spec before any order arrives.
  2. Turn on General → Render print PDFs in the cloud so the Cmsmart Cloud renderer builds the print-ready PDF automatically instead of tying up your own server.
  3. In Printing Options, scope print specs, sides and price matrices to the product categories that need them — see our guide on configuring online design for each product if you haven't done this yet.
  4. When an order comes in, open Orders and check the Awaiting review and Carts pending tiles for anything waiting on you.
  5. Open the order and review the Customer Design box: tick the file, choose Accept (or a decline reason) and click Go.
  6. Click View detail → Create PDF to confirm the print-ready PDF status reads Ready, or use Regenerate print-ready PDF if the design changed after approval.
  7. Use Download design to pull the SVG, PNG, JPG (CMYK with an ICC profile) or PDF format your press needs.
  8. Check Files weekly for designs flagged Low DPI (under 300) or Needs fix before they reach a production run.
  9. Configure Settings → Upload design to restrict allowed file types and set a minimum resolution DPI for customers who upload artwork instead of using the designer.
  10. Turn on Preflight Quality Checker in Cmsmart Cloud → AI Tools so flagged files get an automatic scan before your team opens them.

Cmsmart insight: Set your Required DPI once in Cmsmart Cloud and leave preflight on orders set to Manual until your team trusts the results. Switching to automatic is worth doing once you know how often it actually flags a real problem, not before.

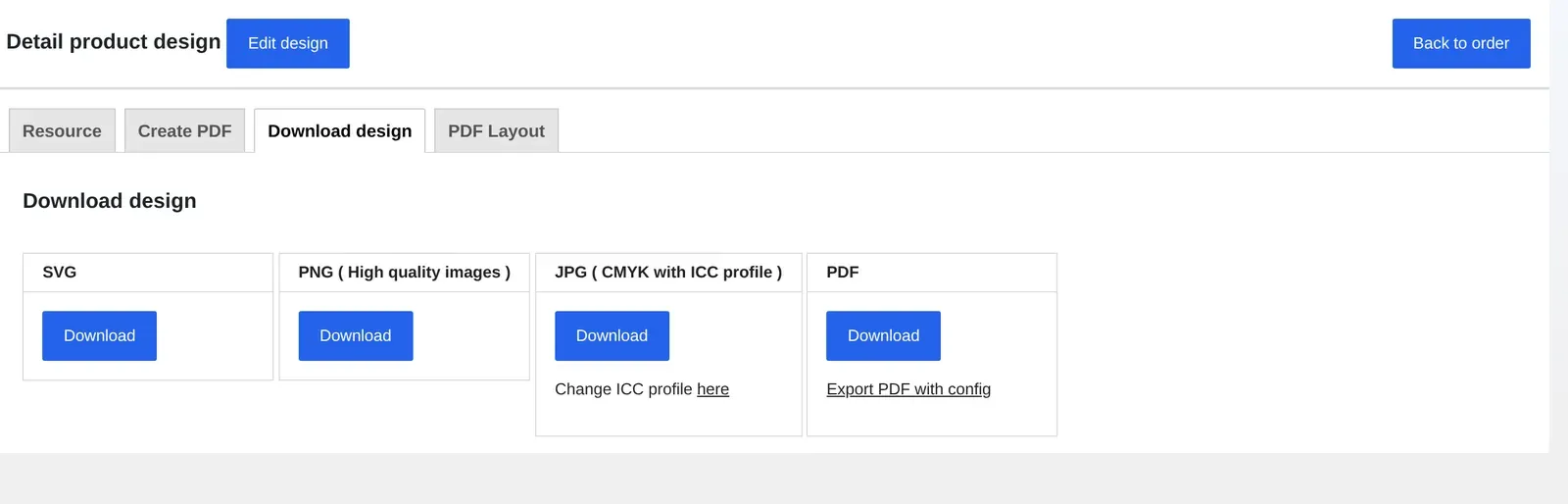

Download design tab with SVG, PNG, JPG CMYK with ICC profile and PDF download buttons
Every approved design can be downloaded in the format your press line actually needs.

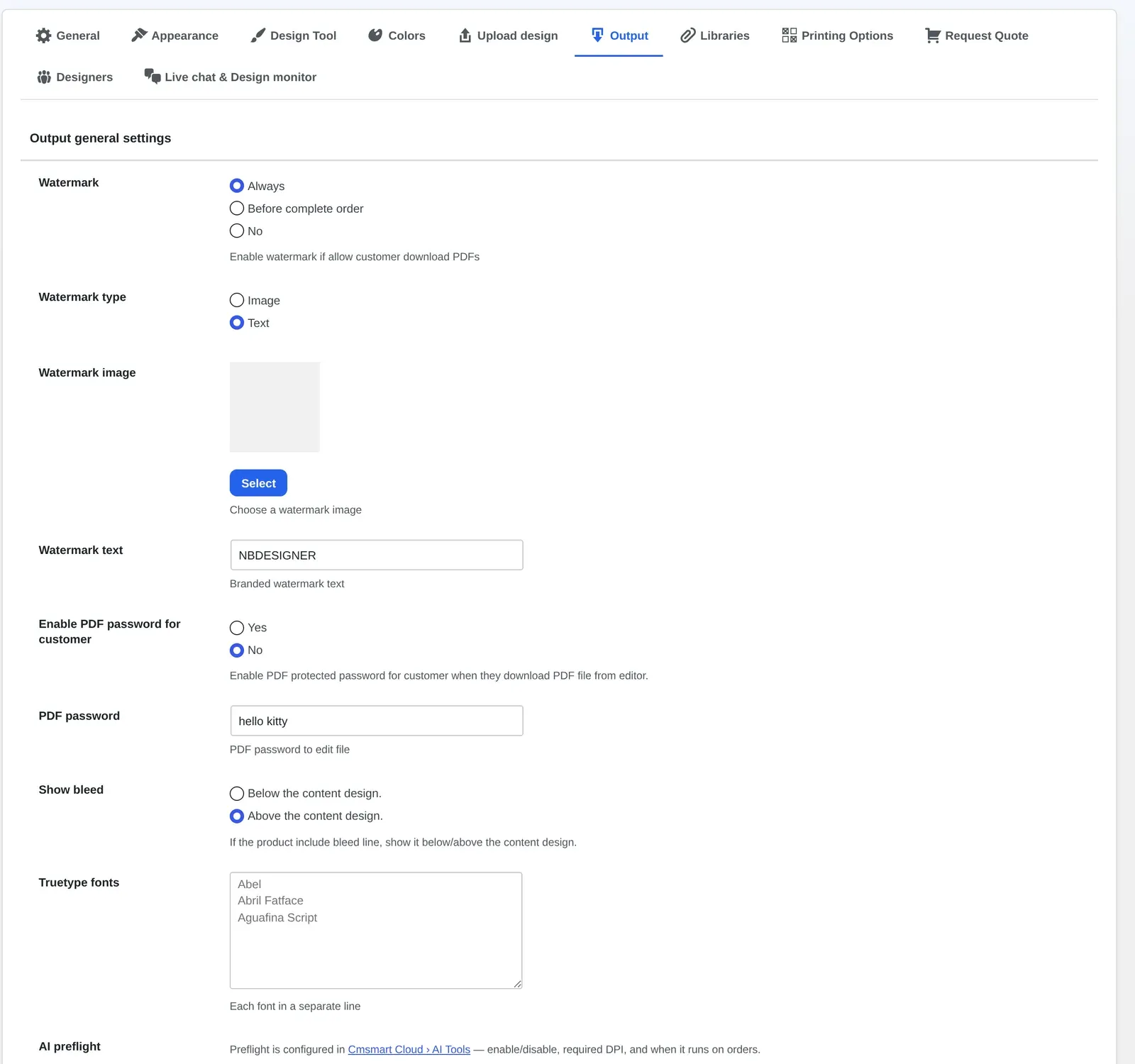

Output settings screen showing watermark, PDF password and bleed line options in NBDesigner
Output settings control watermarking, bleed and the print-ready defaults that Create PDF and the cloud renderer both use.

What can Cmsmart build beyond the standard order screen?

Beyond the built-in approval and print-ready PDF workflow, Cmsmart builds custom development on top of Product Designer for stores that need production data to move automatically — into an MIS, a gang-sheet layout or a floor dashboard — instead of being read off the order screen by hand.

Five extensions we build most often for WooCommerce print shops running a high volume of custom orders:

  • ERP/MIS hand-off. Push approved, print-ready orders straight into your MIS or production-floor system the moment they're accepted, instead of someone re-keying order data.
  • Batch gang-sheet nesting. For DTF and garment print shops, nest multiple approved designs onto one print sheet automatically instead of laying them out by hand.
  • Turnaround alerts. A Slack or email alert fires when a job sits in Awaiting review past the turnaround you promised the buyer.
  • Multi-stage B2B approval. Route a wholesale buyer's own design reviewer into the approval chain before an order reaches your production queue.
  • Production-floor dashboard. A shop-floor screen that shows only jobs marked Ready, grouped by press or finishing station.

We deliver these the same way we deliver any Product Designer customization: discovery call, solution design, build in sprints, QA against your real order volume, launch and ongoing support — see our ecommerce project case studies for examples.

Plan my order workflow

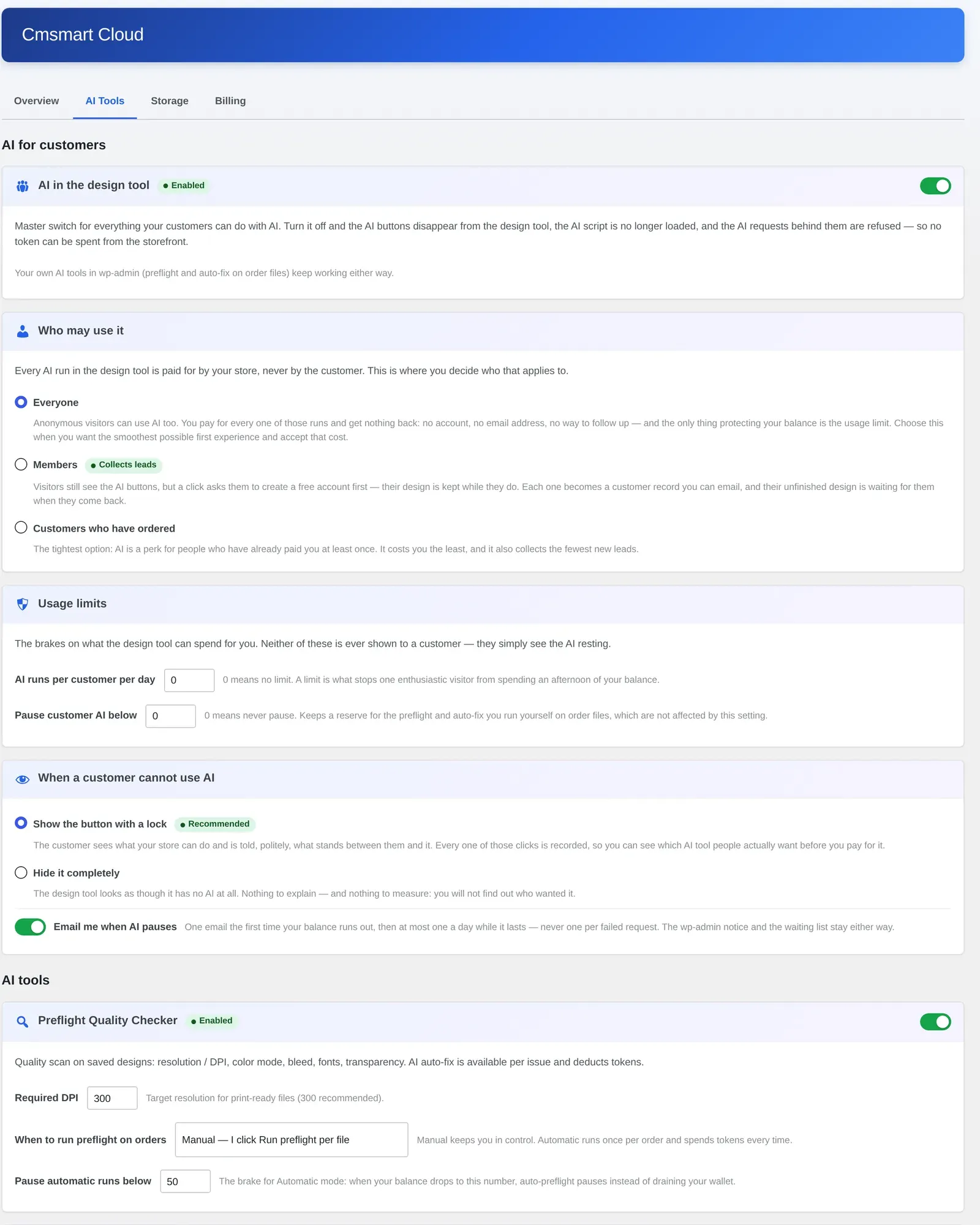

Cmsmart Cloud AI Tools settings showing AI preflight, usage limits and who may use AI
AI Preflight and usage controls in Cmsmart Cloud are the foundation most of these custom workflows build on.

Why work with Cmsmart on your order workflow?

Cmsmart has built WooCommerce print and customization projects since 2012 as a Netbase JSC division, with more than 6,300 client projects and 1,800+ live stores running its plugins and custom builds across 80+ countries — so the order workflow in this guide runs on patterns already proven in production, not a one-off experiment.

Cmsmart holds a 4.2 rating from 404 reviews on Trustpilot (see our platform page for the full picture), including feedback from stores that have run the Product Designer order workflow for years:

"We have had the NB Designer plugin installed for three years and have experienced absolutely no problems during that time. It is wonderful to see their commitment to continuous development, with new features being added frequently to keep the software current and highly capable." — Web Developer, Trustpilot review, September 2026

If you're planning a broader web-to-print storefront and not just the order screen, that hub walks through the full buyer-to-production picture. And if you want a refresher on the buyer-facing side of Product Designer, see how to use the WooCommerce product designer in the frontend.

Frequently asked questions

Do I need a separate plugin to approve customer artwork?

No. The Customer Design approval box is part of the WooCommerce order screen once Cmsmart Product Designer is active — no extra plugin or subscription required.

Does the print-ready PDF update if a customer edits their design after ordering?

Yes. Editing a design after ordering flags the order as changed, returns a declined proof to pending review, and queues a new print-ready PDF when automatic export is on (NBDesigner 2.17.0). Once an item is approved, saving over that design is refused on the server instead.

Can my team download CMYK files with the right color profile?

Yes. The Download design tab exports JPG with CMYK and an ICC color profile alongside SVG, PNG and PDF, so the file matches what most print services expect.

What happens if a design's resolution is too low to print well?

The Files screen flags anything under 300 DPI as Low DPI, and the Preflight Quality Checker in Cmsmart Cloud can scan saved designs for resolution, color mode, bleed and transparency issues before you approve them.

Can Cmsmart connect order approvals to our ERP or MIS?

Yes, as custom development. We build the integration that pushes approved, print-ready orders into your MIS or production system — tell us about your setup and we'll scope it.

How long does a custom order-workflow project like this take?

Most of the extensions above run 10–30 days from a scoped quote to launch, depending on how many systems they connect to; a short discovery call gives you a firmer estimate for your stack.
