WooCommerce Subscriptions: Setup Options and Pitfalls

Applies to WooCommerce Subscriptions on any current WooCommerce 9+ store, with Cmsmart Product Designer (NBDesigner) 2.17.0 for the personalization options described below · Updated October 2026. Every figure and screenshot below is dated and linked to its source.

In short

  • WooCommerce Subscriptions turns a one-time checkout into recurring revenue — replenishment boxes, memberships or B2B contracts — but only pays off if the billing model, gateway and renewal-failure plan are right before launch.
  • It works by adding a subscription product type to WooCommerce: the subscriber signs up once, the gateway charges the saved payment method on each interval, and the subscriber manages their own plan from My Account.
  • Setup takes a licensed extension, a payment gateway that supports off-session (merchant-initiated) charging, retry and reminder settings turned on deliberately, and a tested cancel/renewal cycle before the first real customer signs up.

WooCommerce Subscriptions can turn one-time buyers into recurring revenue, but only if you pick the right billing model, a payment gateway that can charge a card with the customer offline, and a plan for what happens when a renewal fails — skip any of those and a "subscription store" quietly behaves like a one-time store with extra steps.

What does it actually cost a WooCommerce store to bill customers more than once?

Cmsmart sets up WooCommerce Subscriptions so renewals, declined cards and plan changes run without a staff member opening an order. Most stores losing recurring revenue aren't failing to sell subscriptions — nobody configured retries, reminders or a recurring-capable gateway before the first renewal ran.

Selling a subscription is the easy part. Running one for a year without losing money to the plumbing is where most WooCommerce stores get stuck:

  • A gateway chosen for one-time checkout, not recurring charges. Some processors need a separate "off-session" or "reference transaction" mode turned on before they'll charge a saved card without the customer present; skip that step and the first renewal batch fails silently.
  • No retry (dunning) logic. A card that is temporarily declined — over its limit for a day, a bank fraud hold — cancels the subscription instead of being retried a few days later.
  • Manual reminder emails. Teams that forget to turn on renewal notices find out a plan lapsed when the customer emails asking where their box is.
  • B2B contract renewals tracked in a spreadsheet next to a WooCommerce store that has no idea the contract exists.
  • Support time spent on pause and cancel requests that a self-service account page would have handled with no ticket at all.

The stakes are real: across subscription businesses tracked by Recurly Research, overall monthly churn averaged 3.60%, with involuntary churn — subscriptions lost purely to failed payments, not a customer choosing to leave — at 1.25% as of July 2026 (Recurly Research, 2026). That is recurring revenue a store never meant to lose. And the opportunity is growing fast enough to be worth fixing: the global subscription e-commerce market is forecast to grow from $180.48 billion in 2025 to $206.26 billion in 2026, a 14.28% CAGR toward $402.2 billion by 2031, with replenishment subscriptions — the "never run out" box — already the largest single model at 35.75% of the market in 2025 (Mordor Intelligence, 2026).

What does a subscription store that just works look like?

Cmsmart builds the subscription flow so a buyer signs up once and never thinks about billing again, while the store owner sees renewals, failures and plan changes in one place instead of chasing them across email, a gateway dashboard and a spreadsheet.

Example scenario. A buyer subscribes to a monthly replenishment box at 10 p.m. from their phone. WooCommerce Subscriptions creates the recurring order and schedules the first renewal a month out. On renewal day, the saved card is charged automatically; if it's declined, the store retries it twice over the following week and emails the subscriber a one-click link to update the card before giving up. The subscriber never contacts support — they manage the whole plan, including pausing it for a trip, from My Account. The store owner opens one screen and sees active, past-due and canceled subscribers instead of reconstructing the picture from orders.

How does Cmsmart put a WooCommerce subscription stack together?

Cmsmart wires WooCommerce's own product, cart and checkout templates to a licensed subscriptions extension and a recurring-capable gateway, then adds whatever the extension doesn't do out of the box — B2B approval flows, ERP sync or personalized recurring products — as custom development on top.

A WooCommerce subscription store is built from pieces that already exist in WooCommerce core plus one licensed extension — not a separate platform:

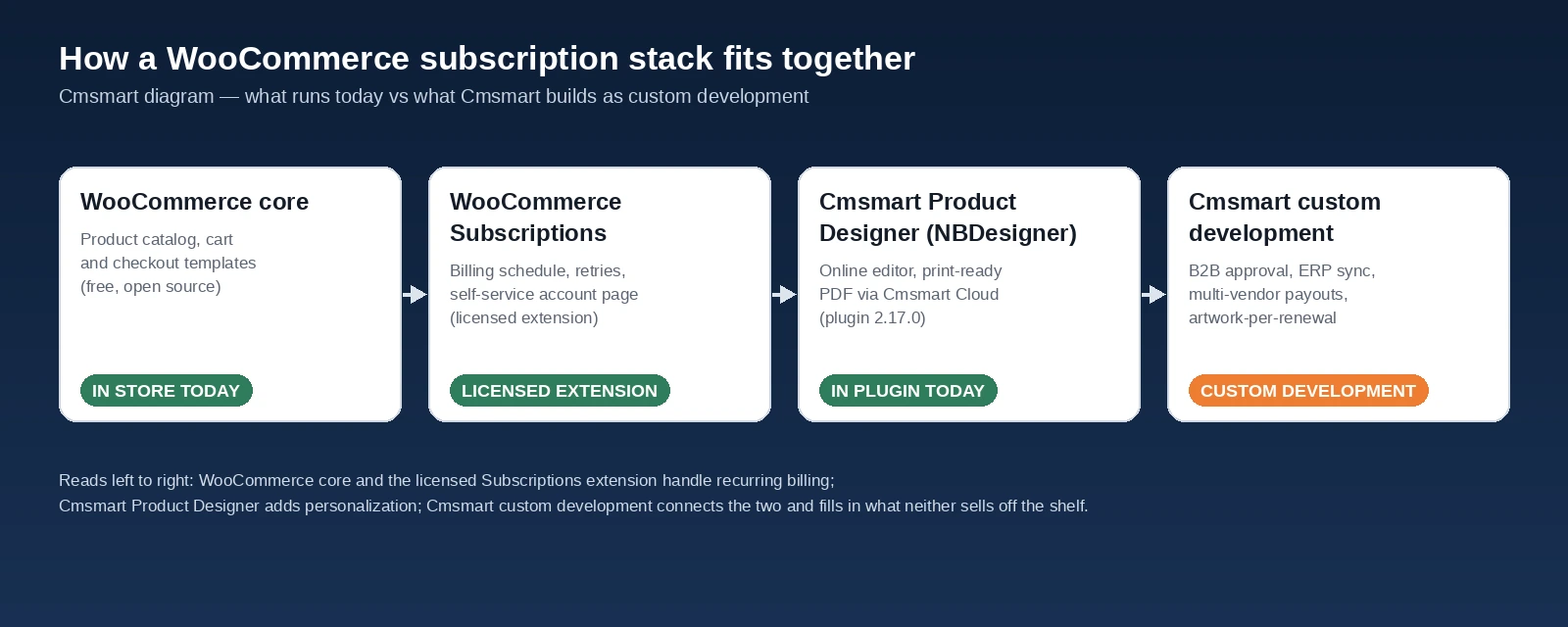

Diagram of a WooCommerce subscription stack: WooCommerce core, WooCommerce Subscriptions, Cmsmart Product Designer and Cmsmart custom development
The WooCommerce subscription stack, left to right: WooCommerce core and the licensed Subscriptions extension handle catalog, checkout and billing; Cmsmart Product Designer adds personalization; Cmsmart custom development connects the two.
WooCommerce product page on the Cmsmart demo store, the same template a subscription product uses
A standard WooCommerce product page (Cmsmart demo store). A subscription product reuses this exact template — only the price line and the purchase button change to show the billing interval.
  • Catalog and product page — in the plugin today. A subscription product is a WooCommerce product type; it shows on the same page template as any other product.
  • Cart and checkout — in the plugin today. WooCommerce Subscriptions adds a recurring-total line to the cart and checkout you already have; it does not replace them.
  • Billing engine — in the plugin today (an official WooCommerce extension). WooCommerce Subscriptions handles the schedule, the self-service account page, and connects to 25+ payment gateways for automatic recurring charges, starting at $279/year for a 1-year license, with a 100,000+ active-install base (WooCommerce, 2026).
  • Personalization — a real, separate Cmsmart product, not part of Subscriptions. The Cmsmart Product Designer lets a buyer customize an item in the browser before checkout, shown below on its own product.
  • Everything that connects those two — B2B contract approval, ERP sync, or a subscription whose artwork changes every cycle — is Cmsmart custom development, covered further down.

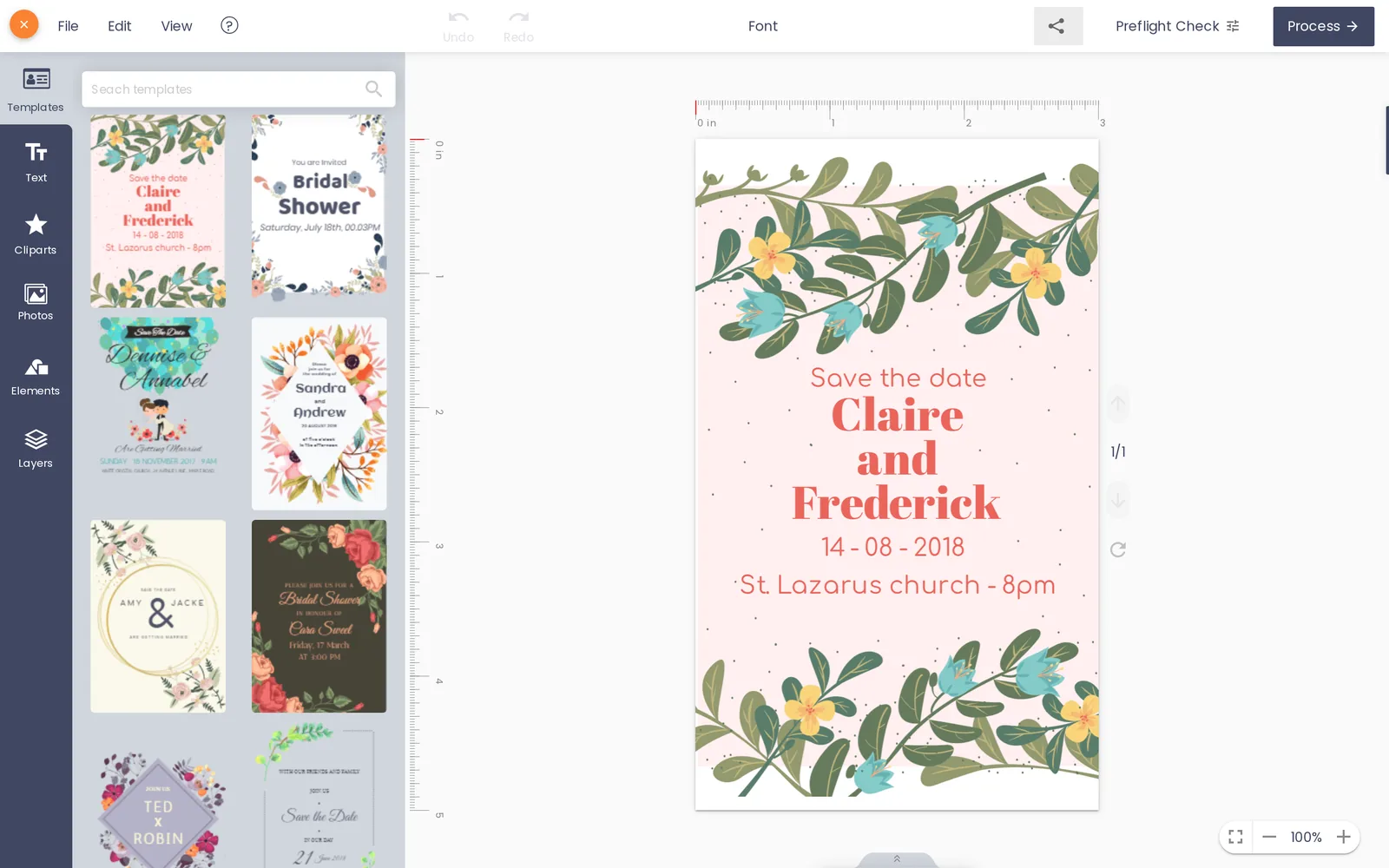

Cmsmart Product Designer online editor open on a personalizable product
The Cmsmart Product Designer, open on a personalizable product on the same demo store. It ships and works today — pairing it with a recurring billing cycle is the custom-development step described below.

What's the business value of recurring revenue for your store?

Cmsmart frames subscription setup around the numbers an owner actually tracks — active subscribers, renewal success rate and revenue per cohort — so the plugin choice and gateway setup are judged on whether they protect that recurring line, not on feature lists.

BenefitHow it shows up in your businessKPI to track
Predictable revenueRenewals are scheduled months ahead instead of re-earned each visitMonthly recurring revenue (MRR)
Fewer failed renewalsRetries and card-update emails catch declines before they become cancellationsInvoluntary churn rate
Lower support loadSelf-service pause/cancel/payment-method pages replace "please cancel my order" ticketsSubscription-related support tickets per 100 subscribers
Higher order value over timeSign-up fees, upgrades and add-ons are billed on the existing schedule instead of a fresh checkoutAverage revenue per subscriber (ARPS)

ROI worksheet (fill in your own numbers):
Recovered monthly revenue ≈ (active subscribers) × (average plan price) × (your current involuntary-churn rate − your involuntary-churn rate after retries and reminders are turned on).
Use 1.25% as a benchmark starting point for "after" — it's the industry average involuntary churn rate reported for July 2026 (Recurly Research, 2026) — then compare it to what your gateway's dashboard shows today.

Cmsmart insight: in our setup work, the most common cause of lost renewal revenue isn't the subscription plugin — it's a payment gateway that was configured for one-time checkout and never verified to support off-session, merchant-initiated charges. Confirm that with your gateway before launch, not after the first renewal batch quietly fails.

How to set up WooCommerce Subscriptions without losing renewals

Cmsmart installs and configures WooCommerce Subscriptions end to end — billing model, gateway, retry and reminder settings — and tests a full sign-up-to-cancellation cycle on staging before a single real customer sees the plan.

  1. Choose your billing model first — replenishment, membership or B2B contract — because it decides whether you need variable pricing tiers, seat-based billing or a sign-up fee.
  2. Install and activate a subscriptions extension compatible with your WooCommerce version; the official WooCommerce Subscriptions extension starts at $279/year and supports 25+ gateways; check the current license terms for your site count before buying (WooCommerce, 2026).
  3. Confirm your payment gateway explicitly supports tokenized, off-session recurring charges — check the gateway's own docs, not just the subscriptions plugin's compatibility list.
  4. Create a subscription product (or convert an existing one) and set the billing interval, any sign-up fee, and an optional free trial.
  5. Turn on automatic renewal retries. They're off by default in WooCommerce Subscriptions, and once enabled they retry a temporarily declined card a few days later instead of cancelling on the first failure (WooCommerce, 2026).
  6. Set your retry schedule's outer limit deliberately — card networks cap how many times a single charge can be retried, and Stripe specifically recommends no more than eight attempts on charges that allow retrying (Stripe, 2026).
  7. Switch on renewal reminder and failed-payment emails so subscribers hear from your store before a card actually gets declined, not after.
  8. Test a full cycle on a staging order — sign-up, first renewal, a deliberately declined card, a pause, and a cancellation — before the first real subscriber sees the plan.

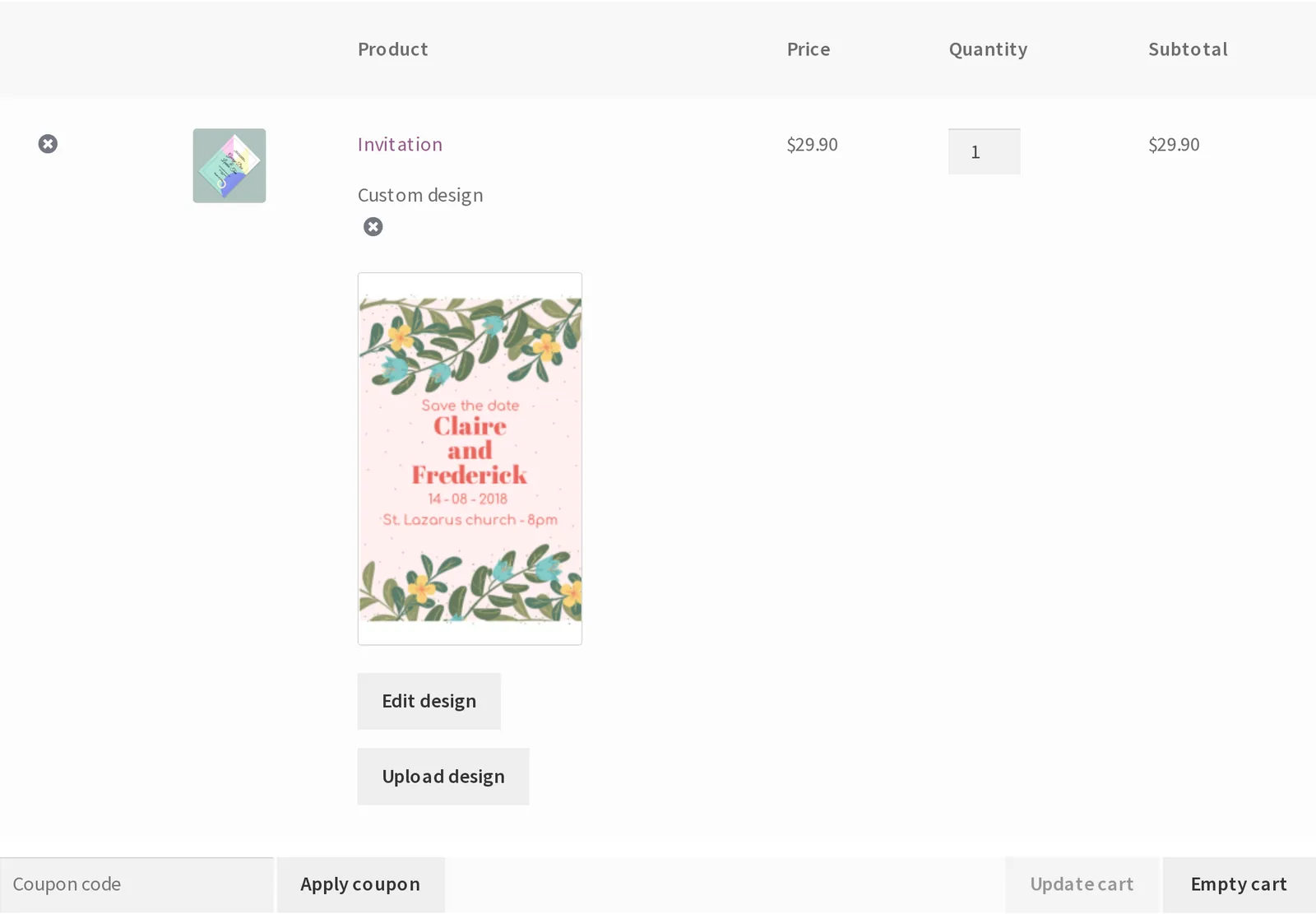

WooCommerce cart page showing a line item and subtotal
A WooCommerce cart page (demo store). A subscription line item sits here the same way, with its recurring total shown instead of a one-time price.

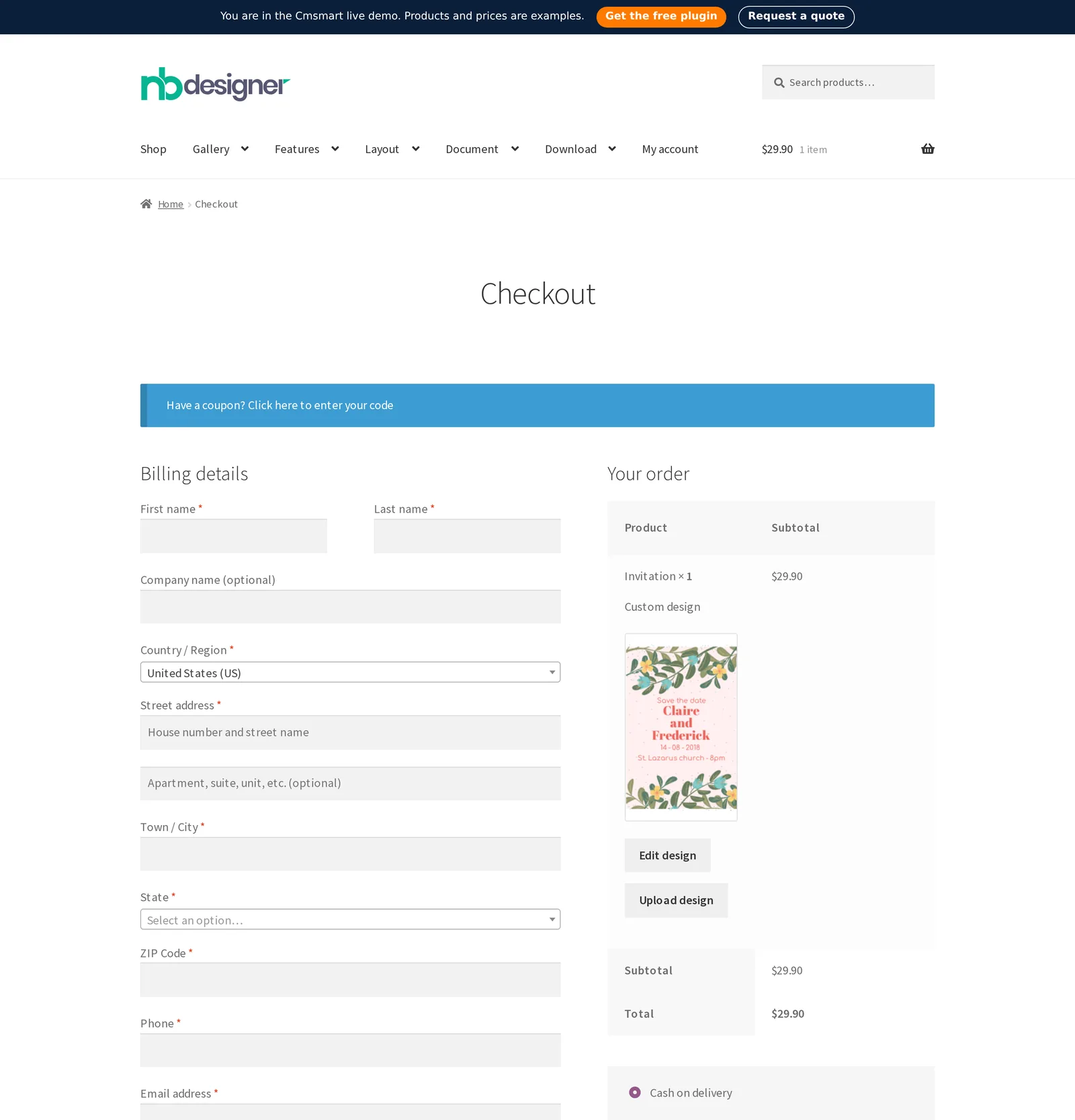

WooCommerce checkout page that a WooCommerce Subscriptions order reuses, stopped before payment, on the Cmsmart demo store
WooCommerce's standard checkout (demo store, stopped before payment). WooCommerce Subscriptions reuses this exact page and adds a recurring-total summary — it doesn't replace your checkout design.

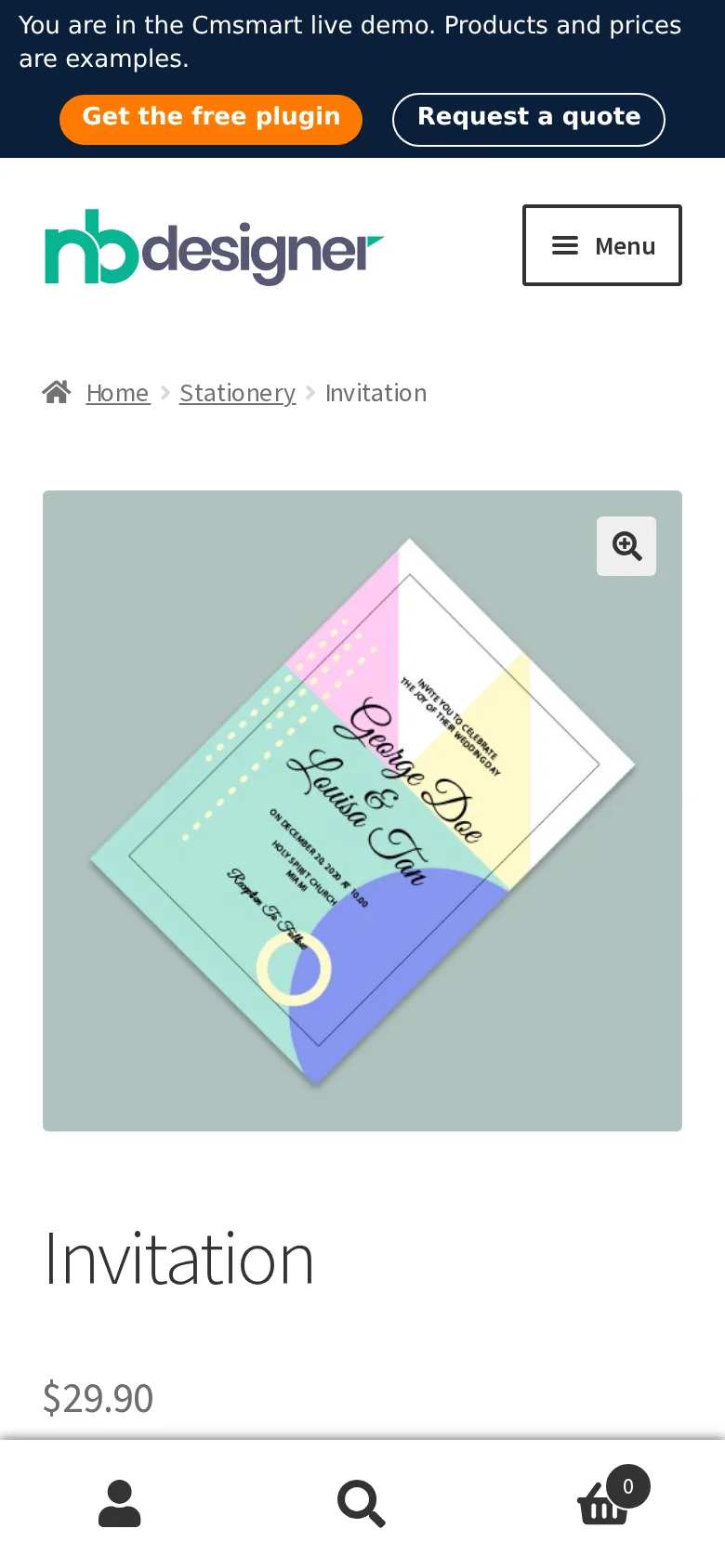

WooCommerce product page on a 390px mobile viewport
The same product template at a 390px mobile width. Subscription products inherit WooCommerce's responsive layout automatically — there's no separate mobile build to maintain.

What can Cmsmart build on top of WooCommerce Subscriptions?

Cmsmart extends WooCommerce Subscriptions as custom development for the parts no WooCommerce extension sells off the shelf — personalized recurring products, B2B contract approval, ERP-synced invoicing and multi-vendor subscription payouts — scoped and built around your actual billing model.

WooCommerce Subscriptions covers the billing engine. Past that, the following are custom-development builds, not features of any subscriptions plugin:

  • Personalized recurring products. For a box or kit whose design changes every cycle — a monthly print run, an engraved gift, co-branded packaging — Cmsmart connects the renewal to the Cmsmart Product Designer so the subscriber can update their artwork before the next charge, and Cmsmart Cloud renders a fresh print-ready PDF that matches the order for every cycle instead of reusing the first file.
  • B2B contract and approval workflows. A purchasing manager requests a quote, an approver signs off, and the agreed terms become a recurring subscription with its own invoice cadence — instead of a sales rep re-keying the same order every month.
  • ERP/MIS and accounting sync. Recurring orders and renewal invoices flow into the systems finance already uses, so nobody reconciles WooCommerce against the ledger by hand.
  • Multi-vendor subscription payouts. On a marketplace, each vendor's share of a recurring order is split and paid out automatically instead of calculated at month-end.
  • Churn-recovery dashboards. A single view of renewals due, retries in progress and subscribers who need a human follow-up, built around the KPIs from the value table above.
WooCommerce Subscriptions, out of the boxCmsmart custom development
Recurring billing, retries, self-service account page✔ included— configured for your store
Design/artwork changes with each renewal✖ not a subscriptions feature✔ built on top, connected to Cmsmart Product Designer
B2B quote-to-contract approval flow✖ not a subscriptions feature✔ built to your approval process
ERP / accounting sync for renewal invoices✖ not a subscriptions feature✔ built against your systems' APIs

Cmsmart scopes this work the same way as any other ecommerce project: discovery, a solution design you approve before anything is built, milestone-based delivery, QA against a staging store, launch, then ongoing support.

Get a subscription store setup quote

Why work with Cmsmart to set up your subscription store?

Cmsmart has delivered WooCommerce and web-to-print projects since 2012 as a Netbase JSC division, with 6,300+ client projects and 1,800+ live stores behind that experience — including the recurring-billing and custom-integration work a subscription launch needs.

Cmsmart is a Netbase JSC division running ecommerce and WooCommerce projects since 2012, with 6,300+ client projects and 1,800+ live stores running today. Reviewers rate the team 4.2 out of 5 on Trustpilot across 404 reviews. One recent five-star review, from a web developer who has run the Cmsmart Product Designer plugin for three years, called out "their commitment to continuous development, with new features being added frequently" and support that is "incredibly helpful, friendly and responsive" (Trustpilot, 2026). Every project — subscription setup included — is tracked from proposal to long-term support in the Cmsmart client platform; see the full range of work on the WooCommerce services page or the store setup and preset installation service.

Before picking a plugin, it's worth comparing how other stores approach WooCommerce extensions and open-source options generally — see four WordPress plugins worth running alongside WooCommerce and how WooCommerce compares to other open-source ecommerce platforms.

Frequently asked questions

Is WooCommerce Subscriptions free to use?

No. The official WooCommerce Subscriptions extension is a paid annual license — starting at $279/year, with a 30-day money-back guarantee — and it's separate from WooCommerce itself, which is free. Confirm the current site-count terms on the product page before buying, since license scope can change (WooCommerce, 2026).

Can my subscribers pause, cancel or change their own plan?

Yes — that's a core feature of the extension. Subscribers get a self-service account page to suspend, cancel, upgrade or downgrade their plan and update their payment method, without contacting your support team.

What happens when a renewal payment fails?

By default, nothing retries — the setting is off until you turn it on. Once enabled, the store retries a declined card a few days later, which recovers charges that failed for temporary reasons like a card at its limit, instead of cancelling on the first attempt (WooCommerce, 2026).

Can Cmsmart combine WooCommerce Subscriptions with product personalization?

Yes, as custom development. Cmsmart connects a recurring subscription to the Cmsmart Product Designer so a subscriber can update their artwork before each renewal — useful for a monthly print run, an engraved or branded item, or any recurring box whose contents change. This isn't a feature of any off-the-shelf subscriptions plugin.

Does WooCommerce Subscriptions handle B2B contract billing?

It handles the recurring charge itself. The surrounding workflow most B2B sellers need — quote approval, PO matching, a negotiated billing cadence — is built as custom development on top of it, scoped to how your sales team actually works.

How long does a Cmsmart subscription setup take?

A straightforward single-plan setup (extension, gateway, one subscription product, retries and reminders tested) is typically the fastest project on this page; custom work like personalization or ERP sync adds discovery and build time scoped per project through the Cmsmart project process.
