Upscale Photos for Print WooCommerce: Save Blurry Orders

Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 · Updated October 2026. Covers the AI Image Upscale tool inside the online designer and the Cmsmart Cloud > AI Tools settings that control it.

In short

  • Outcome: a customer's low-resolution photo gets sharpened to print size inside the designer, before it ever reaches your production queue, instead of bouncing back as a reprint or a support ticket.
  • How it works: Cmsmart Product Designer's built-in AI Image Upscale tool enlarges an uploaded photo's pixel size 2x or 4x toward your print dpi target on request, or offers it automatically when it detects a low-resolution image on the canvas.
  • What it takes: turning the tool on in Cmsmart Cloud > AI Tools, setting your required DPI, and deciding who gets to spend your AI tokens.

A customer uploads a phone photo for a custom mug, a canvas print or a gift card, it looks fine in the upload thumbnail, and three days later you're emailing them to ask for a bigger file or quietly printing it anyway and hoping. Learning to upscale photos for print WooCommerce orders need, right inside the checkout flow, turns that guessing game into a two-click fix the customer can do themselves before they pay.

Why do low-resolution customer photos cost you print orders?

Cmsmart Product Designer flags low-resolution uploads before checkout so you stop losing margin to reprints, refunds and manual back-and-forth with customers who uploaded a phone photo that was never meant to fill a 12-inch print area.

Print shops and POD stores running WooCommerce see the same handful of problems on repeat:

  • Reprints. A photo that looked sharp in a 400px browser preview turns pixelated the moment it is scaled to fill a mug wrap or an A3 poster.
  • Support tickets. Someone on your team has to spot the problem, message the customer, and wait for a new file — often after the order already shipped to production.
  • Abandoned designs. A buyer who gets a vague "image too small" warning with no fix on offer just closes the tab.
  • Manual photo editing. Staff open the file in Photoshop or an online upscaler, enlarge it by hand, and re-upload it to the order — minutes per order that never show up as billable time.
  • Guesswork at production. Without a resolution check, a soft image reaches the press anyway, and you only find out when the customer complains.

None of this shows up as a single line item on your P&L, but it adds up: every reprint is a wasted substrate and a shipping delay, and every manual fix is staff time you can't bill. Printing For Less puts the minimum usable resolution at 300 DPI for standard images, and treats anything near typical screen resolution (72 DPI) as unacceptable for print — which is exactly the gap between a customer's phone photo and your press. It is not a niche problem either: WooCommerce runs on 7.9% of all websites and about 47.6% of all known online stores as of October 2026, and photo products — mugs, canvases, apparel, photo books — are some of the most common things sold through it. If you want the fuller picture of why resolution matters at all, see our companion piece on how DPI affects print quality.

What does a WooCommerce print order look like when photos are never too small?

With Cmsmart, a buyer's low-resolution photo is caught and fixed inside the same design session: no email round-trip, no manual editing queue, and no order that reaches production under your DPI threshold.

Example scenario. A buyer on a photo-gift store opens the product page for a canvas print at 10pm, uploads a photo she pulled from an old social media post, and drags it onto the canvas. It is small — maybe 600px wide — and the designer's low-resolution check notices immediately. Instead of a dead-end warning, she sees an "Upscale with AI" suggestion right on the canvas. One click opens the Upscale image dialog, she picks 2x (roughly doubling the pixel count toward a 300 dpi target), previews the sharpened result next to the original, and applies it. She finishes the design, adds it to her cart, and checks out. Nobody on your team ever saw the original file size, because nothing below your threshold ever reached the order.

That is the difference between a plugin that only displays a product and a store built around Cmsmart: the resolution problem is solved in the moment it appears, by the person who can actually supply a better file if one exists.

Upscale photos for print WooCommerce: how does Cmsmart's AI tool work?

Cmsmart Product Designer runs AI Image Upscale inside the online designer, enlarging a customer's photo 2x or 4x toward your print dpi target, with a choice of engines, then carries the upscaled file through cart, checkout and your print-ready PDF without any extra step from your team.

The flow has three building blocks, built into the Cmsmart Product Designer WooCommerce plugin, and you can see all of them in a live designer session:

  1. A buyer starts a design and drops a photo onto the canvas from upload, a stock library, or a connected account.
  2. The designer's resolution check — the same one documented in the 2.15.1 release notes as flagging anything under roughly 700px — looks at the image and, if "Auto-suggest on upload" is on, offers an instant "Upscale with AI" nudge.
  3. Clicking the toolbar's Upscale (AI) icon opens a dialog where the buyer picks a 2x or 4x factor (toward your print dpi target), previews the result, and applies it before moving on to Process and checkout.

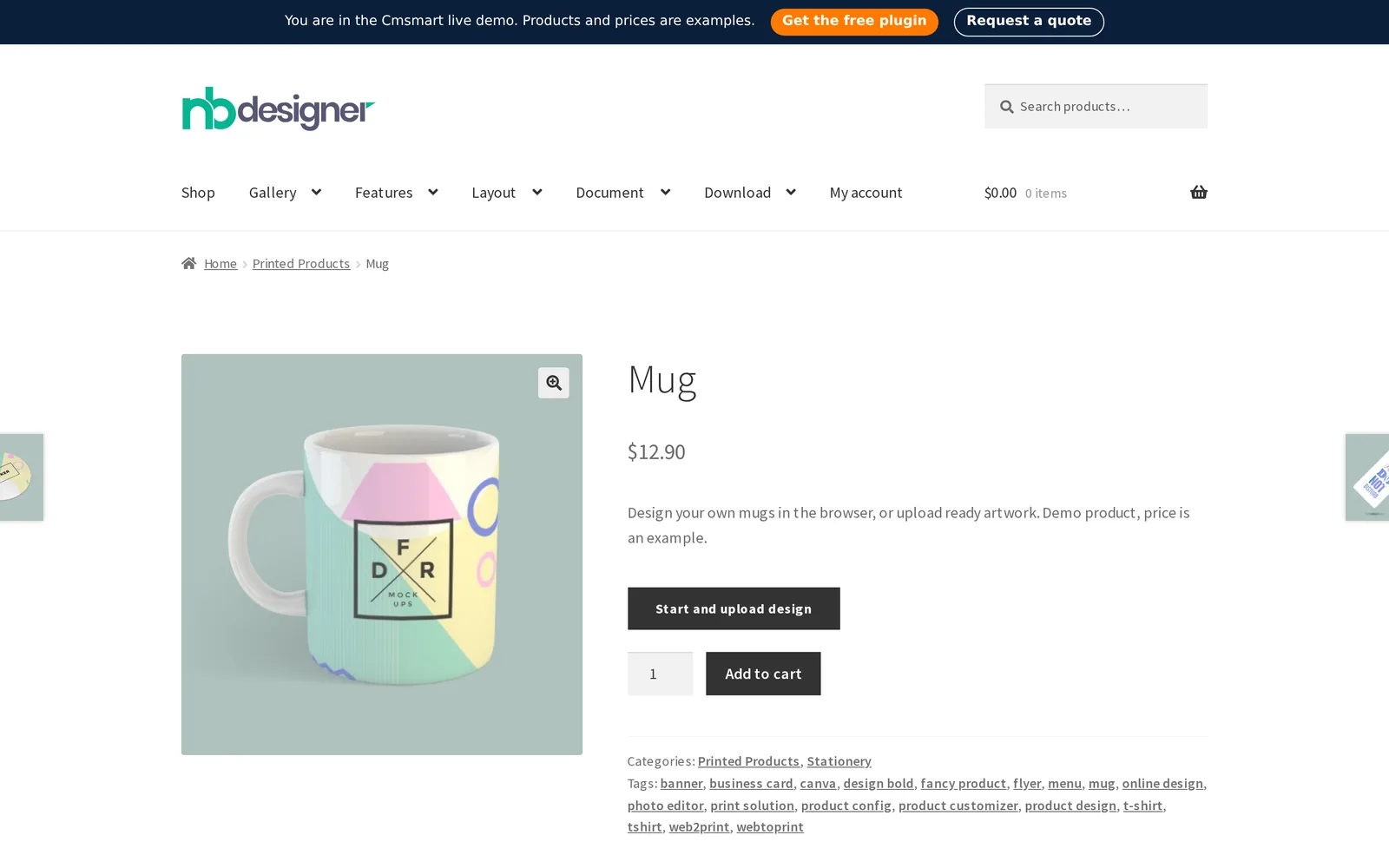

Cmsmart Product Designer product page for a photo mug with the Start and upload design button
Cmsmart Product Designer 2.17.0, storefront — the buyer's upload starts from the product page, no separate app or login required.

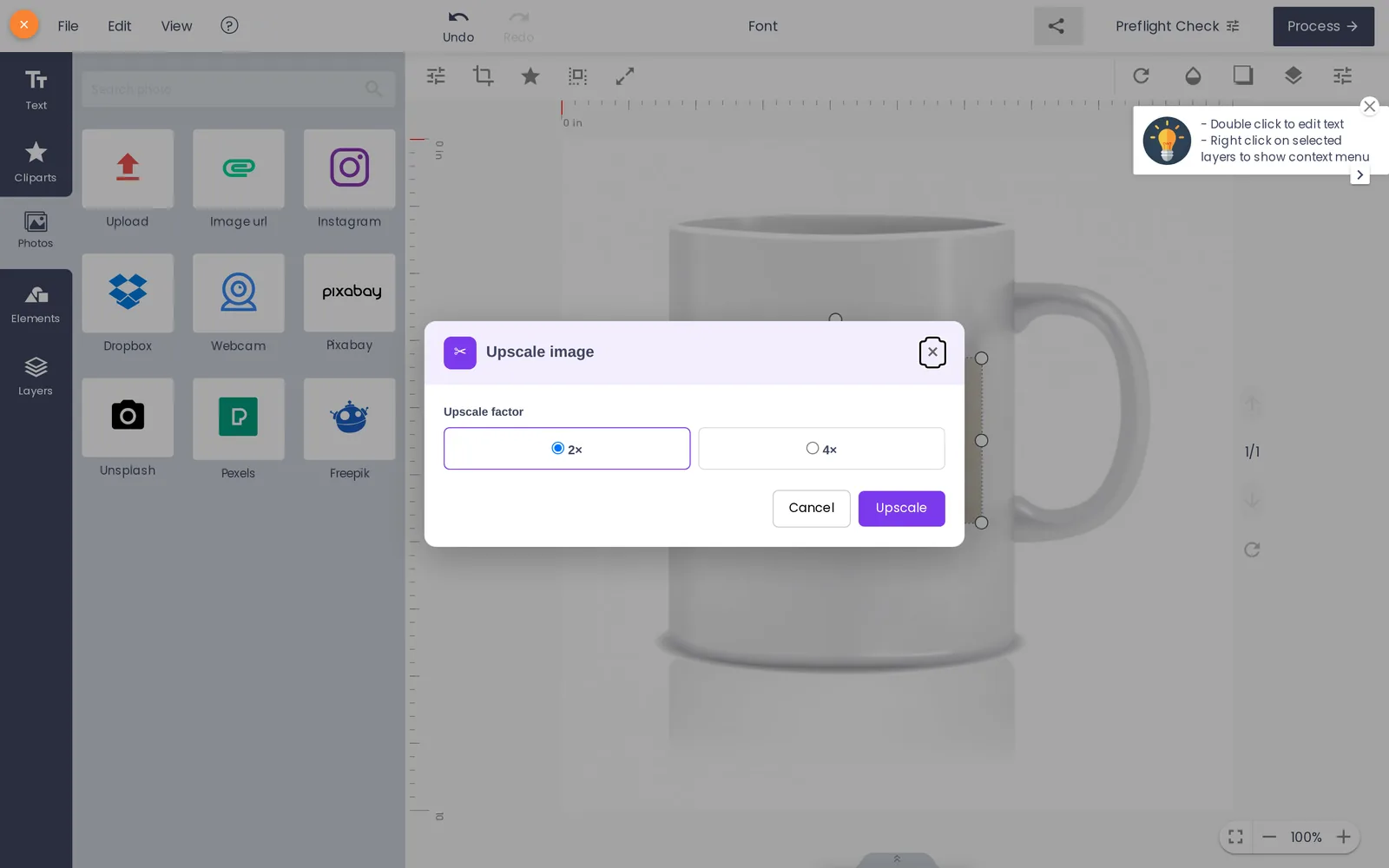

Upscale photos for print WooCommerce: AI Image Upscale dialog with 2x and 4x options in Cmsmart Product Designer
Cmsmart Product Designer 2.17.0, online designer — the Upscale image dialog with 2x and 4x factors for print dpi, opened from the toolbar's Upscale (AI) icon.

Behind the dialog, AI Image Upscale is one of three tools on the same Cmsmart Cloud > AI Tools page alongside the AI Background Remover and the Preflight Quality Checker, all billed from the same token wallet and all gated by the same audience setting, so you control cost and access from one screen rather than three.

Cmsmart insight: most of the stores we've set this up for leave the upscale engine on Lanczos by default and only switch to Real-ESRGAN for photo-heavy niches like portraits or pet photos, because Real-ESRGAN is sharper on photographic detail but costs more tokens per run and takes longer — not a setting to flip without thinking about your catalogue first.

What's the business value of upscaling photos before they print?

Every photo Cmsmart fixes before checkout is a reprint, a refund or a support ticket you don't have to absorb — the value shows up as fewer wasted print runs and less staff time on manual image editing, not as a vague sales lift.

BenefitHow it shows up in your businessKPI to track
Fewer reprintsOrders no longer reach production with an under-resolution photo baked inReprint rate per 100 orders
Less manual editingStaff stop opening image editors to enlarge customer photos by handMinutes of design-fix time per order
Fewer abandoned designsA buyer gets an instant fix instead of a dead-end "too small" warningDesign-to-cart completion rate
Controlled AI spendUsage limits and audience rules stop one visitor draining your token balanceAI tokens spent per completed order

A simple way to see the payoff with your own numbers: take your current monthly reprints caused by low-resolution art, multiply by your cost per reprint (material, shipping, staff time), and compare it to the token cost of running AI Image Upscale on the same volume of orders. For most photo-product catalogues, a handful of avoided reprints a month already covers the AI wallet top-up.

How do you set up AI Image Upscale in Cmsmart Product Designer?

Cmsmart turns AI Image Upscale on from one settings page: enable the tool, choose who can use it, set your print DPI threshold, and the designer handles the rest for every product that uses the online designer.

On the storefront, the buyer's side of this needs no configuration — it is what they see once you enable the tool:

  1. The buyer starts a design and chooses "Design here online" or uploads a photo directly.
  2. Cmsmart Product Designer checks the image's pixel size as soon as it lands on the canvas.
  3. If it is low-resolution and Auto-suggest is on, an "Upscale with AI" nudge appears right on the canvas.
  4. The buyer opens the Upscale image dialog from the toolbar, or accepts the nudge.
  5. They pick 2x or 4x toward their print dpi target, see a before-and-after preview, and select "Apply upscaled image."
  6. Process > Your artwork locks in the upscaled file, which then follows the design through cart and checkout like any other artwork.

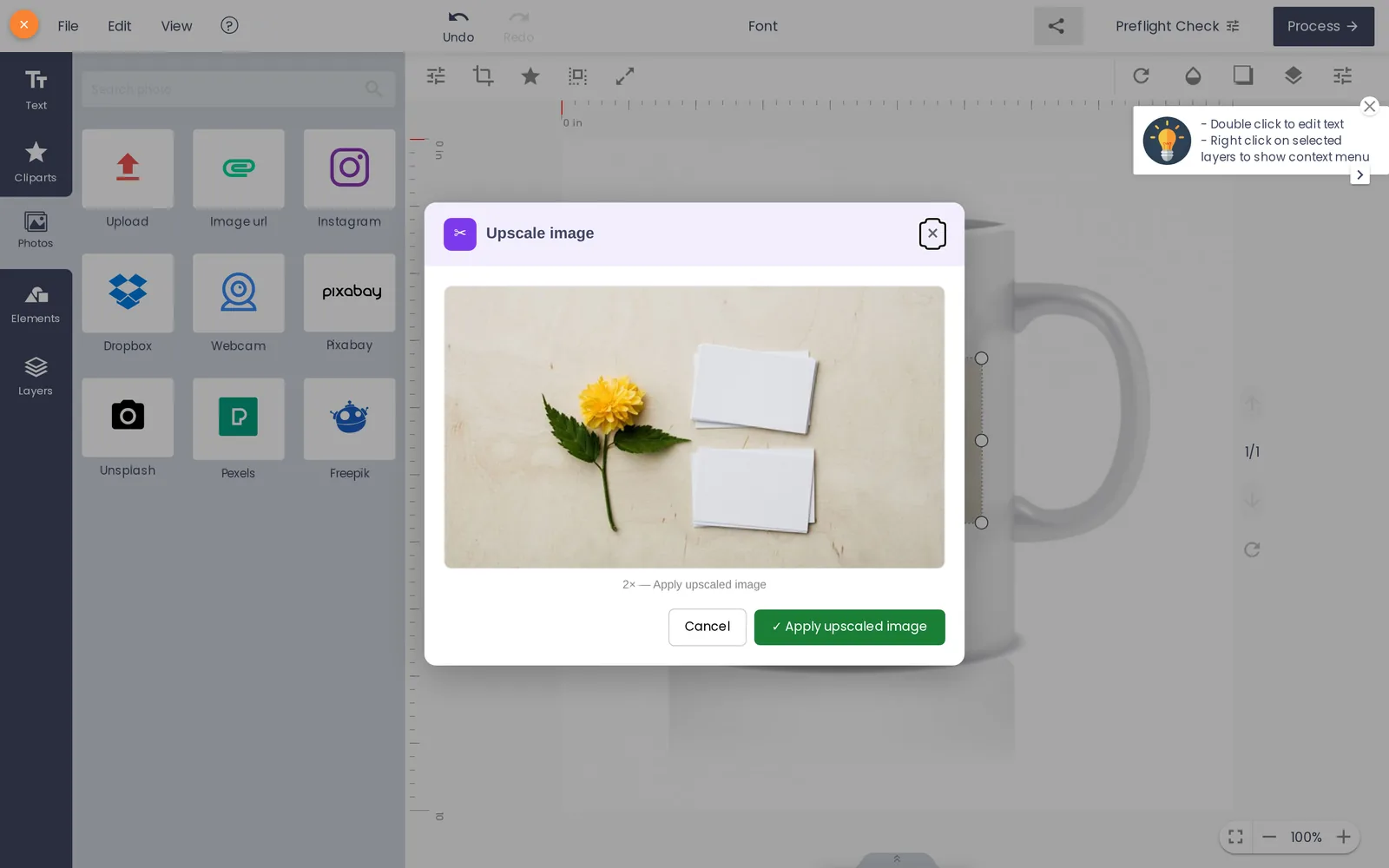

AI Image Upscale before-and-after preview with Apply upscaled image button
Cmsmart Product Designer 2.17.0, online designer — the upscaled preview next to the original, before the buyer applies it.

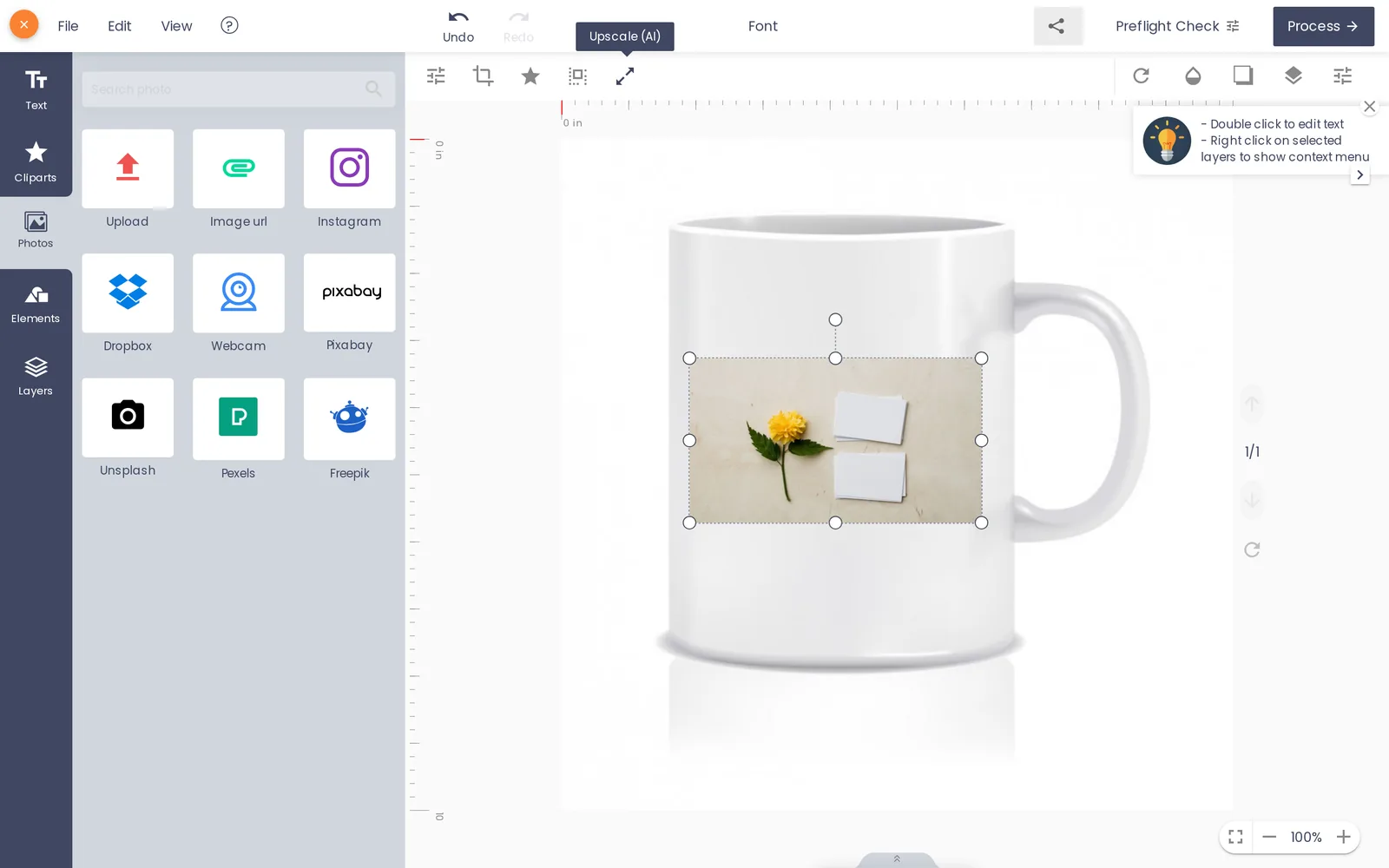

Upscaled photo applied to the mug design on the Cmsmart Product Designer canvas
Cmsmart Product Designer 2.17.0, online designer — the upscaled photo applied to the canvas, with the "Upscale (AI)" action shown on the toolbar.

On your side, turning the tool on and setting its limits takes a few minutes in wp-admin. For the full installation and activation walkthrough — including WooCommerce and HPOS compatibility — see the Cmsmart Product Designer installation guide; the steps below cover only what AI Image Upscale needs:

  1. Go to WP Admin > Cmsmart > Cmsmart Cloud > AI Tools.
  2. Turn on "AI in the design tool" — the master switch for every AI button your customers see.
  3. Under "Who may use it," choose Everyone, Members (which collects leads before the free AI run), or Customers who have ordered.
  4. Enable "AI Image Upscale," set the Upscale engine to Lanczos (fast, classical) or Real-ESRGAN, the open-source super-resolution model, for sharper photographic results, and switch on "Auto-suggest on upload."
  5. Set "AI runs per customer per day" and "Pause customer AI below" under Usage limits so one visitor can't spend your whole token balance in an afternoon.
  6. Open Settings > Upload design and set "Min. resolution DPI for JPG/JPEG image" so uploads below your print threshold are flagged the moment they arrive, not after Process.

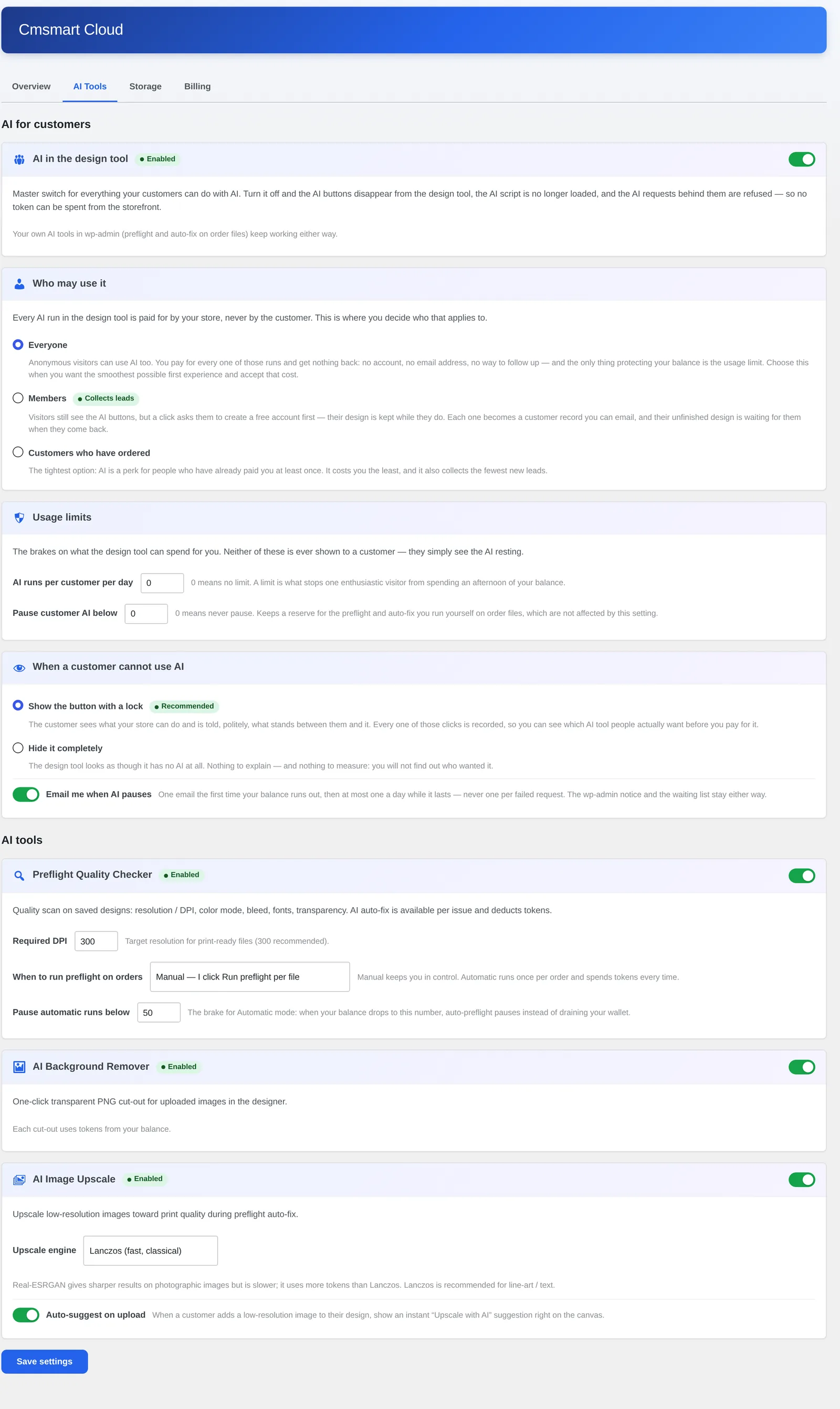

WP Admin Cmsmart Cloud AI Tools settings showing the AI Image Upscale toggle and engine choice
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart > Cmsmart Cloud > AI Tools — the AI Image Upscale toggle, engine choice and "Who may use it" audience setting.

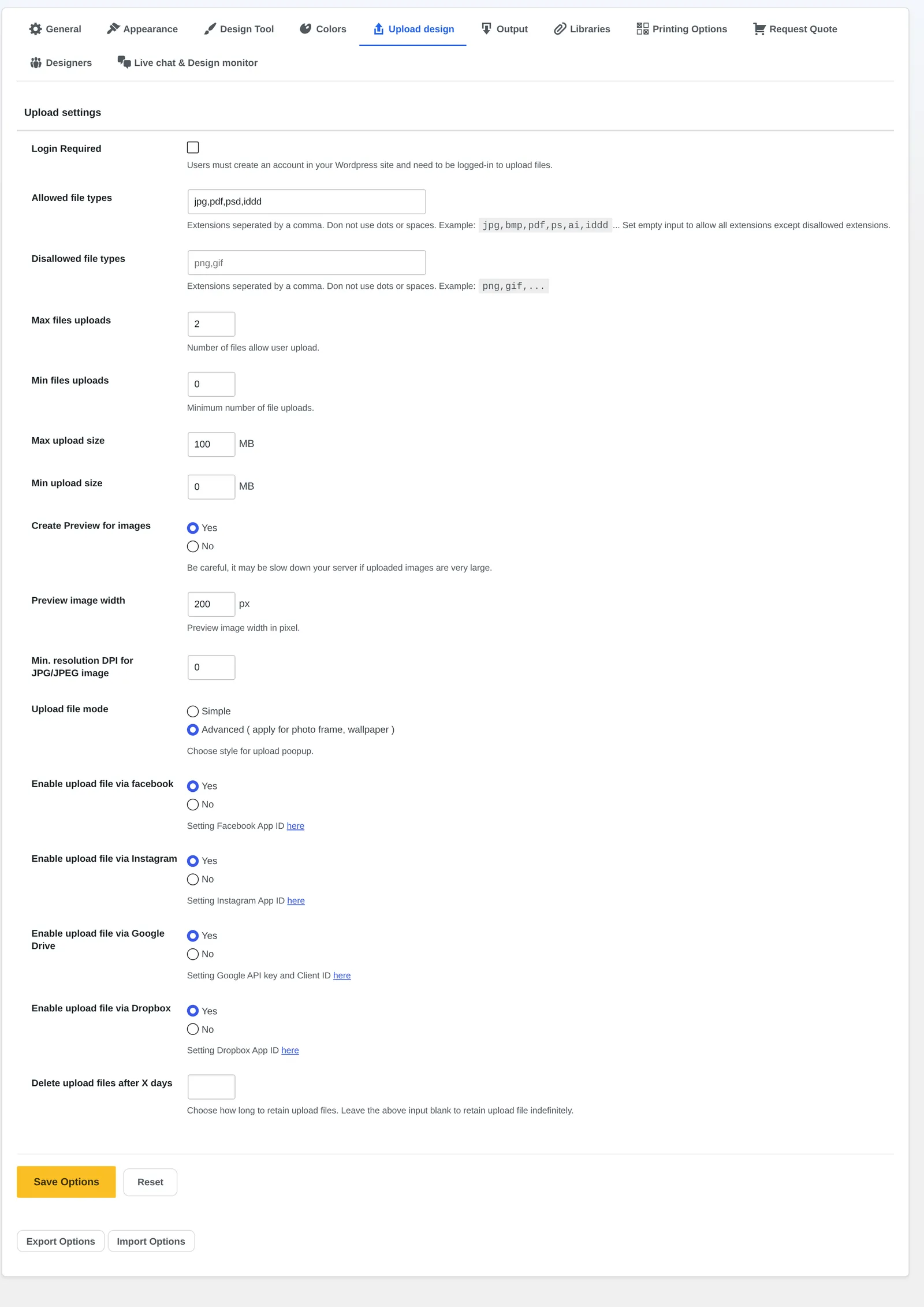

WP Admin Settings Upload design tab with the Min resolution DPI for JPG image field
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart > Settings > Upload design — "Min. resolution DPI for JPG/JPEG image" (default: as installed, 0 — raise it to match your print requirement).

If you also run the Preflight Quality Checker, its own "Required DPI" field (300 by default) gives you a second check at order time, so anything that slipped through the upload stage is still caught before a file goes to production — one of the reasons Cmsmart's AI preflight is worth pairing with AI Image Upscale rather than running either alone.

Going further: what can Cmsmart build on top of AI upscaling?

Cmsmart builds custom AI and production workflows on top of the core designer for stores whose needs go beyond a single-order upscale — bulk re-processing, custom quality gates and ERP-connected print queues among them.

The built-in AI Image Upscale tool handles the common case — one buyer, one photo, one order — well. Stores with higher volume or specific production rules often want more, and that is custom development, not a core-plugin setting:

  • Bulk re-upscale for existing orders. Cmsmart builds a batch tool that runs AI Image Upscale across a backlog of pending designs from before you turned the feature on, instead of fixing them one order at a time.
  • Per-product quality rules. Cmsmart builds custom logic so a phone case (small, tolerant of 150 DPI) and a large canvas print (needs close to 300 DPI) each get their own resolution threshold and upscale factor, instead of one setting for the whole catalogue.
  • ERP and MIS hand-off. For shops whose production system needs the print-ready file and its DPI/resolution metadata automatically, Cmsmart builds the API connection so an upscaled, preflight-checked file reaches your MIS without anyone downloading and re-uploading it by hand.
  • Automatic upscale on import. For stores that bulk-import customer photos from a third-party gallery or a wedding/event platform, Cmsmart builds an automated pipeline that runs every low-resolution import through AI Image Upscale before it is ever offered to a buyer.

Cmsmart's own delivery approach for this kind of work follows the same path for every project: discovery, solution design, build sprints, QA, launch, then ongoing support — the same model behind the case studies on Cmsmart's ecommerce project page. If your store also needs background removal on customer photos (product cut-outs, clean white backgrounds), the AI Background Remover runs from the same Cmsmart Cloud wallet as AI Image Upscale.

Plan a custom AI photo pipeline

Why work with Cmsmart on AI image quality?

Cmsmart has built and supported the product designer behind thousands of WooCommerce print and personalization stores since 2012, and the same team that ships AI Image Upscale in the core plugin also builds the custom AI and production workflows stores grow into.

Cmsmart is a Netbase JSC division that has been building ecommerce and web-to-print solutions since 2012, with 6,300+ client projects and 1,800+ live stores running today. Reviews on Trustpilot sit at 4.2 out of 5 from 404 reviews, including recurring praise for how fast support responds when a store needs a feature adjusted rather than just explained — the kind of relationship a one-off plugin purchase doesn't include.

Cmsmart insight: the stores that get the most out of AI Image Upscale are the ones that pair it with a DPI check at upload and at preflight — catching a low-resolution photo once at the canvas and again before the print-ready PDF generates, so a buyer who skips the suggestion the first time doesn't slip an order through anyway.

See related work on the Cmsmart AI for ecommerce hub and the AI integration service page for how this fits alongside preflight and background removal.

Frequently asked questions

Does AI Image Upscale replace taking a better photo in the first place?

No. It raises a low-resolution photo toward print quality, but a sharp, well-lit original still produces the best result. Think of it as a safety net for the photos buyers actually upload, not a substitute for good source material.

How long does an upscale take, and does it slow down checkout?

The upscale itself runs in the designer before the buyer adds the item to their cart, so it doesn't touch checkout. Background removal on a similarly sized (or just-upscaled) image can take 60–72 seconds according to the 2.12.0 release notes, which is why the designer shows a clear in-progress state rather than a silent wait.

Who pays for each AI Image Upscale run?

Your store does, from the Cmsmart Cloud AI wallet — never the customer directly. That's exactly why the "Who may use it" and usage-limit settings exist: to decide how open the tool is and put a ceiling on what one visitor can spend from your balance.

Do customers need an account to use it?

Only if you set "Who may use it" to Members or Customers who have ordered. With Everyone selected, anonymous visitors can use AI Image Upscale without creating an account, at the cost of not capturing a lead from that interaction.

Can Cmsmart connect this to our existing print production system?

Yes, as custom development. Cmsmart builds the API and automation work to pass an upscaled, preflight-checked file straight into an ERP, MIS or production queue, on top of the AI Image Upscale tool that already ships in the core plugin.
