AI Print Preflight Setup WooCommerce Guide

Applies to Cmsmart Product Designer (NBDesigner) 2.18.0 · Updated October 2026. Covers the AI Tools settings, the Files and order screens, and the Customer Design approval box used to run AI print preflight on WooCommerce orders.

What does a bad print file actually cost your shop?

If nobody checks artwork before it prints, the usual failure modes are familiar to anyone who has run a print queue:

• Low-resolution uploads. A 150-DPI phone photo for a badge or door hanger looks fine on screen and pixelates on paper.
• Wrong colour mode. RGB artwork prints duller and shifted once it hits a CMYK workflow, and nobody catches it until the proof is in hand.
• Missing bleed. A design cropped exactly to the trim line leaves a white sliver the moment the cutter is a fraction of a millimetre off.
• Staff time eyeballing files. Someone opens every design and guesses whether it's good enough — on a busy store, that is a job in itself.
• Reprints and refunds. A file that slips through becomes wasted substrate, lost press time, and an unhappy customer instead of a satisfied one.

The global commercial printing market is on track for roughly $594 billion in 2026, growing toward $704 billion by 2031 (Mordor Intelligence, 2026) — more of that volume moving online means more artwork arriving than any small team can eyeball file by file.

What does it look like when preflight runs for you?

Example scenario. A batch of sticker orders comes in overnight. By the time the shop opens, every design has already been scanned for resolution, colour mode and bleed. One file shows up on the Files screen tagged "Low DPI" instead of blending in with the rest. Staff open that one file, request a sharper image, and let everything else move straight to production — nobody opened 30 files to find the one that mattered.

That is the shift AI preflight is built for: the status is already on the screen before a human looks. Talk to an ecommerce expert if you want this wired into a review queue your team already uses.

How does Cmsmart's AI preflight actually work?

The building blocks, and what is in the plugin today versus what is custom development:

• Cmsmart Cloud AI engine (in the plugin). One scanning and auto-fix service backs Preflight, Background Remover and Image Upscale, billed from a single token wallet.
• AI Tools settings (in the plugin). Cmsmart Cloud → AI Tools is where you enable the Preflight Quality Checker, set the Required DPI, and choose when it runs on order files.
• Online designer check (in the plugin). With AI enabled for customers, the design tool can run the same resolution check on an upload before checkout — one of the three customer-facing AI tools your audience setting controls.
• Files and order screens (in the plugin). Cmsmart → Files lists every design with a Preflight column (Not checked / Low DPI / Print-ready) and a DPI figure; the order screen shows the same status next to the line item.
• Customer Design approval (in the plugin). The Accept/Decline box on the WooCommerce order screen is where staff act on a flagged design and notify the customer with a reason.
• Per-product preflight profiles (custom development). The core settings apply one DPI target store-wide. A stricter rule for packaging dielines, or a different floor per product type, is something Cmsmart builds on top of the core engine.

Printers care about this scan for a reason: a print-ready PDF needs embedded fonts and unambiguous CMYK or ICC-managed colour to print correctly without anyone phoning the designer to ask what went wrong — the PDF/X family of standards exists to guarantee exactly that (Datalogics, 2026). Cmsmart's preflight checks the same categories — resolution, colour mode, bleed, fonts, transparency — before an order gets anywhere near that stage.

What's the business value of catching print problems before production?

The Cmsmart Cloud overview tracks this for you once preflight is on: a 30-day panel of AI operations run, how many were defects caught before the job reached production, and an accuracy rate for fixes that passed a re-check without manual rework. The figures are specific to your own order volume and catalogue from day one — the panel is where you watch the trend, not a number we can promise in advance.

AI print preflight setup WooCommerce: how do you configure it?

If the plugin isn't installed and licensed yet, start with the installation and activation guide — it covers the WooCommerce + HPOS setup and the License screen this preflight feature needs. Once the plugin is active:

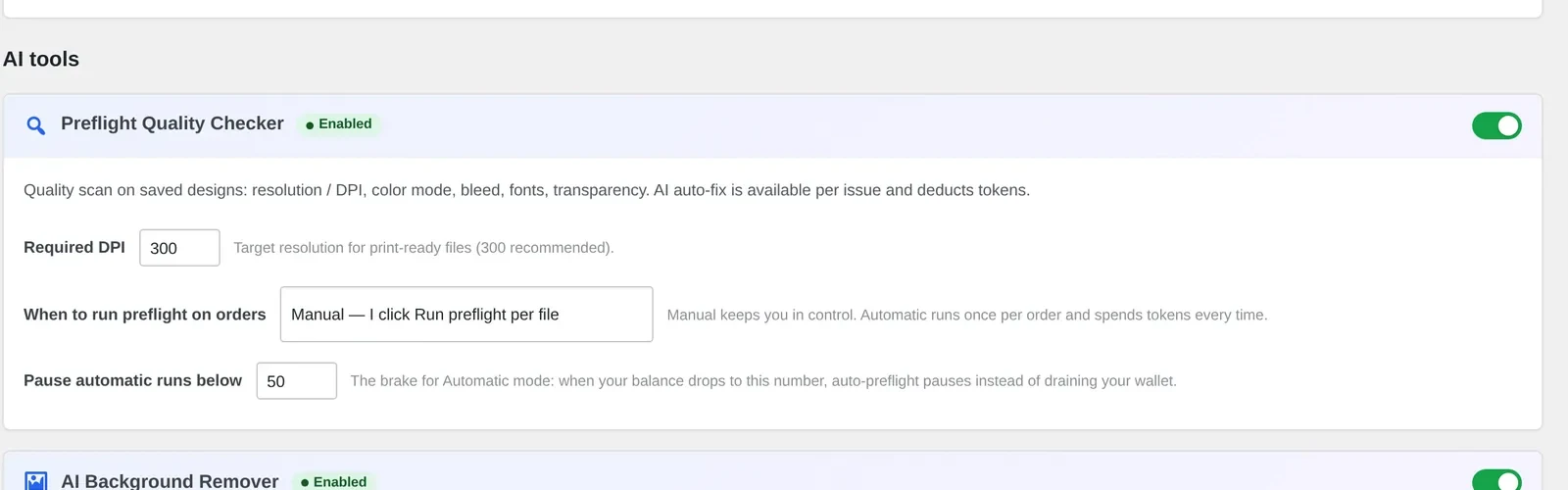

1. Go to Cmsmart → Cmsmart Cloud → AI Tools.
2. Under AI tools, find Preflight Quality Checker and switch it to Enabled.
3. Set Required DPI — 300 is the recommended default, the resolution most offset presses expect (double the 150 lpi halftone screen commercial printing is built around — PrintNinja, 2026).
4. Choose When to run preflight on orders: Manual keeps a human clicking "Run preflight" per file; an automatic option runs it once per order and spends tokens every time.
5. Set Pause automatic runs below so an automatic schedule stops itself rather than draining your token balance unattended.
6. To let buyers see a resolution check before checkout too, scroll up to AI for customers, turn on AI in the design tool, and choose who may use it — Everyone, Members, or Customers who have ordered.

Once orders start coming in with preflight switched on, here is where you read the result and act on it:

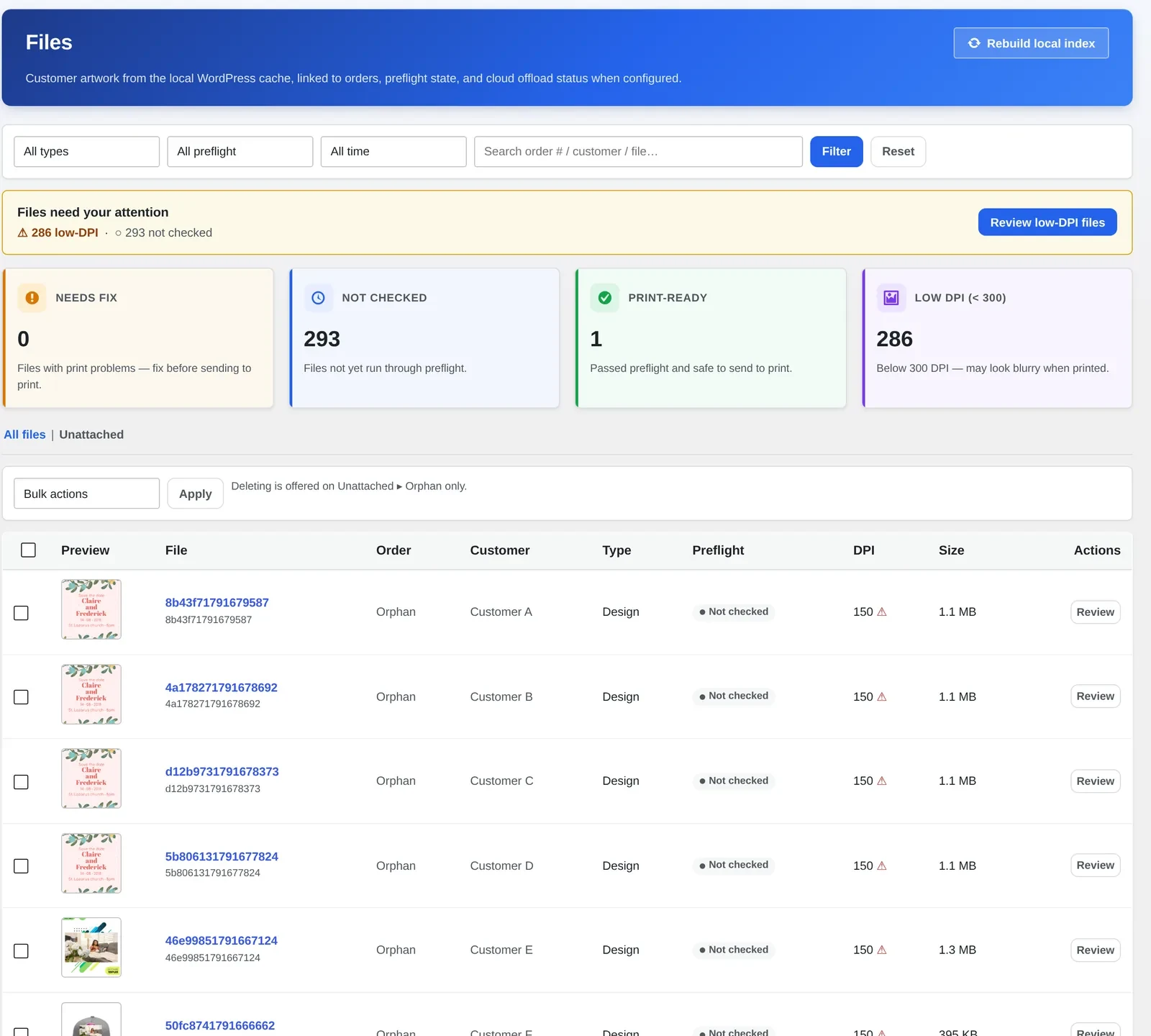

7. Open Cmsmart → Files. The top banner reads out how many files "need your attention" — on the store we captured, 286 were flagged Low DPI and 293 were Not checked yet.
8. Use the Preflight and DPI columns, or the Review low-DPI files button, to jump straight to the designs that need a look instead of scrolling the whole list.

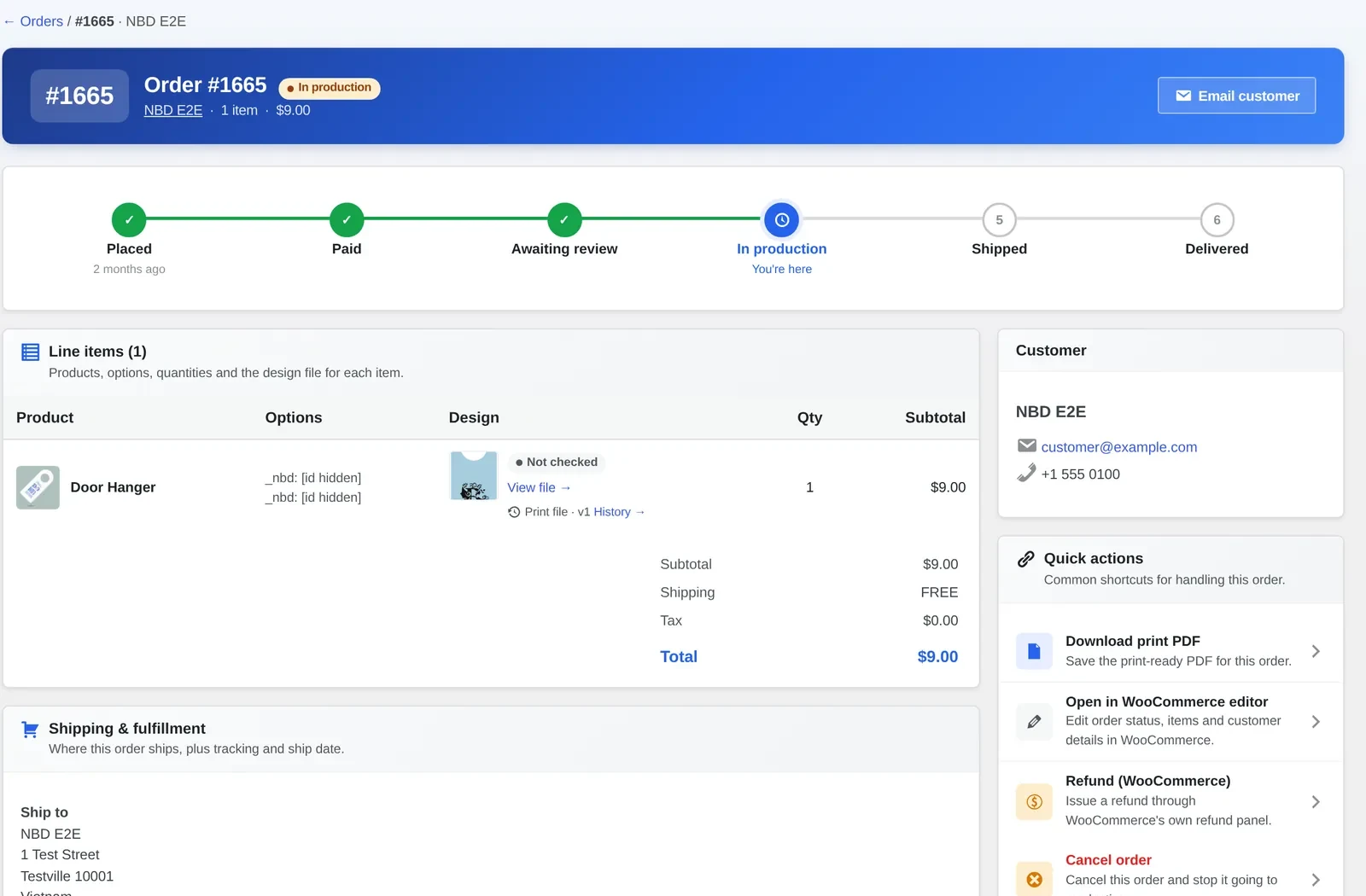

9. Click Review on a flagged file, or open the order directly — the order's line item shows the same status chip (for example "Not checked") next to the design and a link to View file.

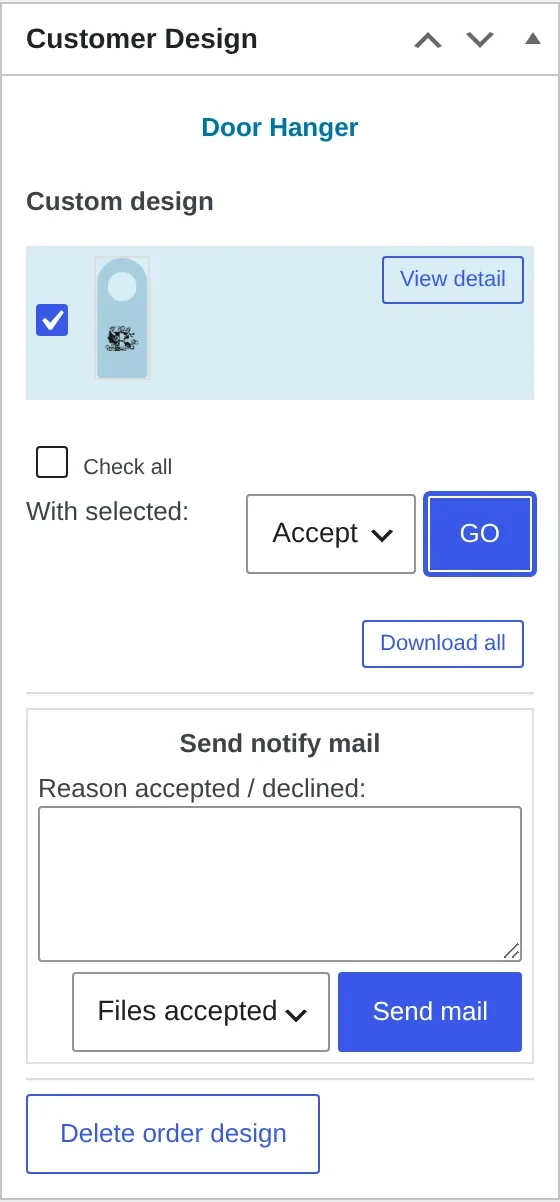

10. In the WooCommerce order screen, scroll to the Customer Design box. Check the flagged design, choose Accept or Decline from the dropdown, add a reason in Send notify mail, and send it — the customer gets a reason instead of a silent hold.

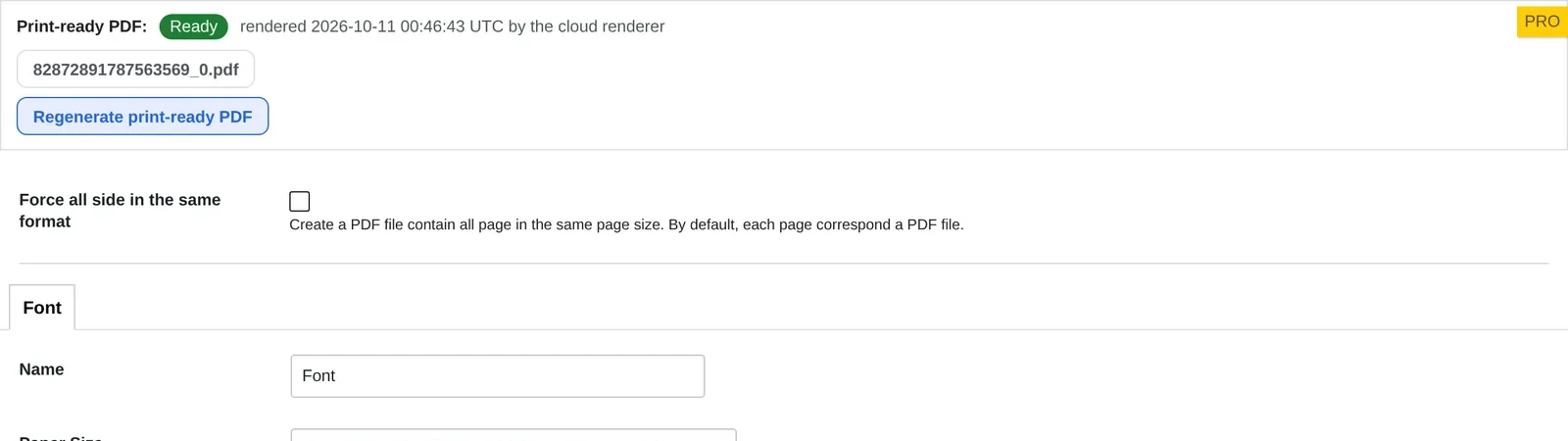

11. Once a replacement file is in and checked clean, open the design's Create PDF tab and click Regenerate print-ready PDF so the order's print file matches the fixed artwork before it moves to production.

One note from testing this end to end: after the online designer's one-click Auto-fix, the confirmation message didn't always repaint right away in our run — click Re-run to see the updated score rather than trusting the first screen.

What can Cmsmart build on top of AI preflight?

Once the basics are running, these are the extensions shops actually need — all delivered as custom development on top of the core plugin, never implied as something the settings screen already does:

• Per-product preflight profiles. A stricter bleed and colour rule for packaging dielines, a looser DPI floor for large-format banners — the core settings apply one rule to every product; Cmsmart builds per-product-type profiles for shops printing more than one kind of job.
• Escalation and routing. Cmsmart can route a flagged order straight into a Slack channel, a helpdesk ticket, or an MIS/ERP queue the moment it fails preflight, instead of relying on staff checking the Files screen.
• Batch preflight for wholesale orders. A B2B buyer uploading 40 SKUs at once needs one pass/fail summary across the batch, not 40 individual reviews — Cmsmart builds that view for B2B and multi-vendor catalogues.
• PDF/X-aware export rules. Tightening the print-ready PDF to a specific PDF/X conformance level for printers who require it from every supplier.
• Custom auto-fix policies. Deciding automatically when to auto-upscale versus when a human must approve the fix, based on order value or product type.

Projects like these follow the same delivery model as any Cmsmart build: discovery and scoping with an ecommerce consultant, a written milestone proposal, kickoff, delivery in sprints you approve one at a time, QA, and ongoing support — tracked in your own dashboard (see the project delivery model).

Get a custom AI preflight quote

Why work with Cmsmart on this?

Cmsmart is rated 4.2 on Trustpilot across 404 reviews. Browse related project case studies, or see the designer this preflight engine is built into on the Cmsmart Product Designer product page. See also: AI integration for WooCommerce stores, how DPI affects print quality, and web-to-print and print API integrations.

Frequently asked questions

Does AI preflight run automatically, or do I have to click something?

Both are options. "When to run preflight on orders" in Cmsmart Cloud → AI Tools can stay manual — you click Run preflight per file — or switch to automatic, which scans once per order and spends tokens every run.

What exactly does the check look at — just resolution?

No. The Preflight Quality Checker covers resolution/DPI, colour mode, bleed, fonts and transparency in one scan, not resolution alone.

Where do I actually see the result on an order?

Two places: the Files screen has a Preflight column and a DPI figure for every design, with a "Review low-DPI files" shortcut; the order's line item shows the same status chip next to the design.

What happens to a file that fails the check — can I still ship it?

Nothing blocks the order automatically. Preflight flags the file; a staff member reviews it in the Customer Design box and chooses Accept or Decline, optionally sending the customer a reason.

Does turning on AI for customers cost tokens for every visitor?

If the audience is set to Everyone, yes — every anonymous visitor who runs an AI tool spends from your wallet with no account attached. Members or "Customers who have ordered" narrows that, and a usage-limit field caps runs per customer per day.

Can Cmsmart set different preflight rules for different products?

Not in the core settings — the Required DPI and rule set apply store-wide. Per-product preflight profiles, like a stricter bleed check for packaging, are custom development on top of the core engine.
