WooCommerce Mobile Checkout: Fix the Drop-Off

Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 on WooCommerce · Updated October 2026. This case study covers mobile checkout for any WooCommerce store, illustrated with a live Cmsmart Product Designer storefront.

In short

  • Outcome: a lean, fast WooCommerce mobile checkout keeps more phone shoppers moving through to "Order received" instead of losing them to a form.
  • How it works: fewer visible fields, an express payment button, autofill-friendly inputs, and a checkout page that loads quickly on a mid-range phone.
  • What it takes: an audit of your current checkout on a real device, a field-by-field cut list, and either configuration changes or a custom checkout build.

Most of a WooCommerce store's visitors now browse, decide, and try to pay from a phone held in one hand, often on a train, a lunch break, or a weak signal in a stairwell. They have already picked a product and are ready to spend money; all that stands between them and a finished order is whatever WooCommerce mobile checkout you have put in front of them.

That is exactly where many stores lose them. A shopper who gets this far is the easiest sale a business will ever make, yet the next few screens routinely ask for more typing, more waiting, and more scrolling than the same person would tolerate on a laptop — and on a small screen, every extra second and every extra field is harder to forgive.

A WooCommerce mobile checkout that asks for too much, loads too slowly, or hides the pay button below the fold sends paying customers back to the search results instead of the order-confirmation page, and fixing it is one of the highest-leverage changes a store can make this quarter.

Why do WooCommerce stores struggle to keep mobile shoppers at checkout?

Cmsmart sees the same pattern across WooCommerce stores: checkout was designed on a desktop monitor, then squeezed onto a phone screen afterward, so fields, trust badges, and the pay button all compete for a narrow view and shoppers give up before paying.

Ecommerce keeps taking share from physical retail, and most of that growth is happening on phones. Online sales reached 17.1% of total US retail spending in the second quarter of 2026, according to the US Census Bureau. Checkout is where that traffic either turns into revenue or quietly disappears.

The numbers back up what support tickets already show. Across industries, the average online checkout still loses roughly seven in ten shoppers who reach it, and the rate has barely moved in over a decade of tracking by the Baymard Institute (70.22% average abandonment, updated September 2025). Checkout complexity is a direct, fixable slice of that: Baymard's own research found 17% of US online shoppers abandoned an order in the past quarter specifically because the checkout process felt too long or complicated.

Mobile makes every one of those problems worse, because a form that is merely annoying on a desktop monitor becomes a scroll-and-pinch ordeal on a phone. Baymard's 2025 checkout UX benchmark rates 63% of mobile sites "mediocre or worse" on checkout usability, against 64% of desktop sites and 46% of native apps — and estimates that the average large ecommerce site could gain up to 35% more conversions purely from checkout design fixes, with no new traffic required.

  • Long billing forms built for desktop, with every field full-width and no autofill hints, so a phone keyboard has to open and close a dozen times.
  • No express payment button above the fold, so a shopper who would have tapped Apple Pay in two seconds has to type a card number instead.
  • Slow-loading checkout pages dragged down by desktop-sized images, extra scripts, and render-blocking styles the mobile visitor never asked for.
  • Design or print-option details, for stores selling customized products, repeated across the cart and checkout, pushing the pay button further down the page.
  • Guest checkout buried behind an account-creation prompt, adding a step most mobile shoppers will not take.

Cmsmart insight: in our WooCommerce builds, the checkout that converts best on mobile is rarely the one with the most reassurance copy or trust badges. It is the one that gets out of the way: one visible step, a handful of fields, and a payment button the thumb can already reach.

What does a smooth WooCommerce mobile checkout look like?

Cmsmart builds WooCommerce checkout flows where a phone shopper sees the order total, a short address form, and a payment button without scrolling past anything else, so the path from "Buy now" to "Order received" takes well under a minute on an average mobile connection.

Example scenario. A WooCommerce store selling personalized gifts notices most of its traffic now arrives on a phone, but mobile orders lag behind desktop. The team removes optional billing fields, turns on an express payment button for returning shoppers, and compresses a multi-page checkout into one scrollable page with clear section headers. Support stops fielding "my order won't go through" messages from mobile visitors within the first weeks after launch.

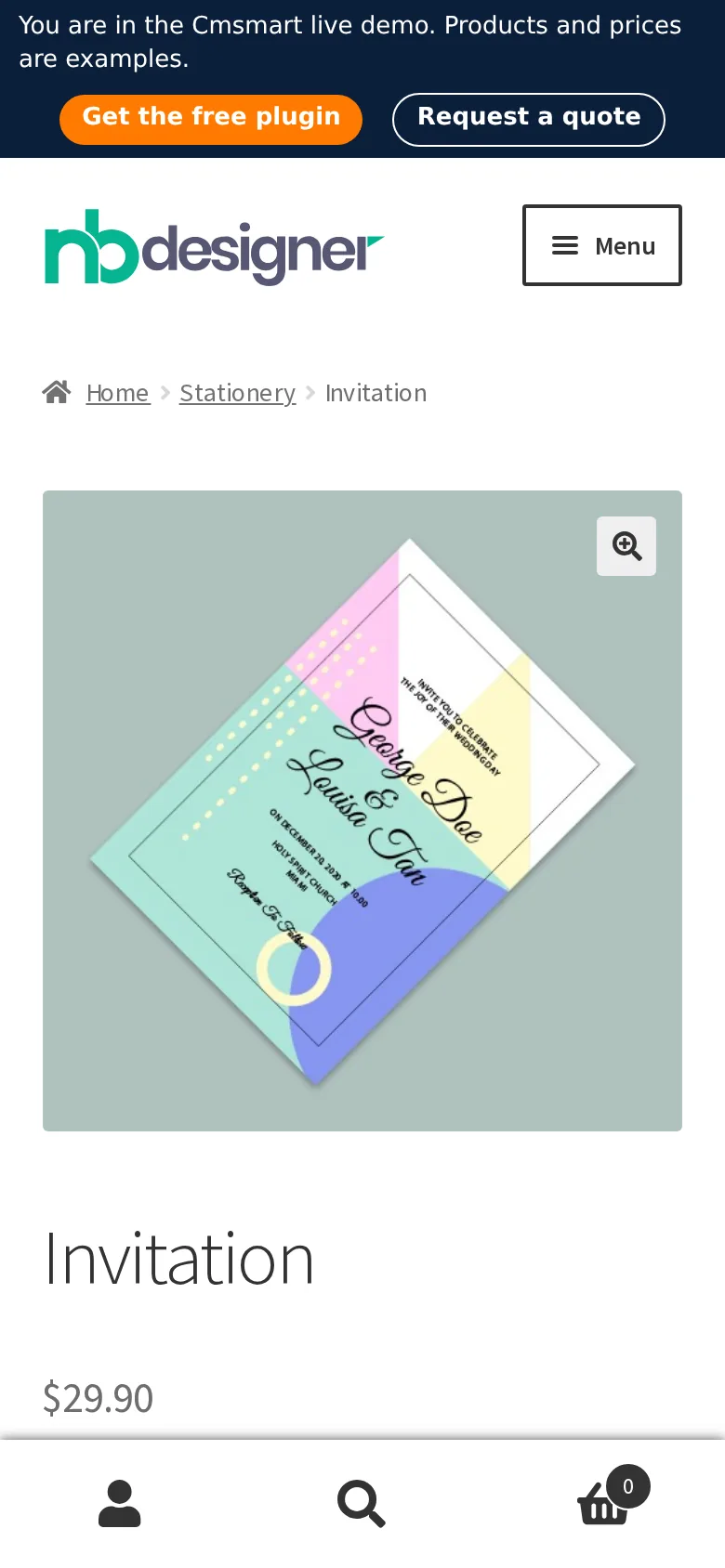

WooCommerce mobile checkout starts on a mobile-friendly product page, with the design button sitting above Add to cart
A mobile-first WooCommerce product page on a live Cmsmart Product Designer store: the primary action sits above the fold, before checkout even starts.

Not sure where your own checkout loses phone shoppers? Talk to an ecommerce expert about a mobile checkout audit before you change anything.

How does Cmsmart build a faster WooCommerce checkout architecture?

Cmsmart treats mobile checkout as four connected layers — product and cart, the checkout form itself, payment, and page performance — and builds or configures each one so a phone shopper never waits on a layer that is not pulling its weight.

Four building blocks carry a WooCommerce order from "Add to cart" to "Order received" on a phone:

  • Product and cart: the product page and cart keep any customization preview small and collapsible, so a saved design or print option does not push the order summary off-screen.
  • Checkout form: the native WooCommerce Checkout block, with fields trimmed to what the order actually needs and grouped so required fields are obvious on a small screen.
  • Payment: express buttons (Apple Pay, Google Pay, WooPay or similar) rendered through a compatible WooCommerce payment gateway, shown before the typed card form, not after it.
  • Performance: images, fonts, and scripts sized and loaded for a mid-range phone on mobile data, not copied over unchanged from the desktop theme.

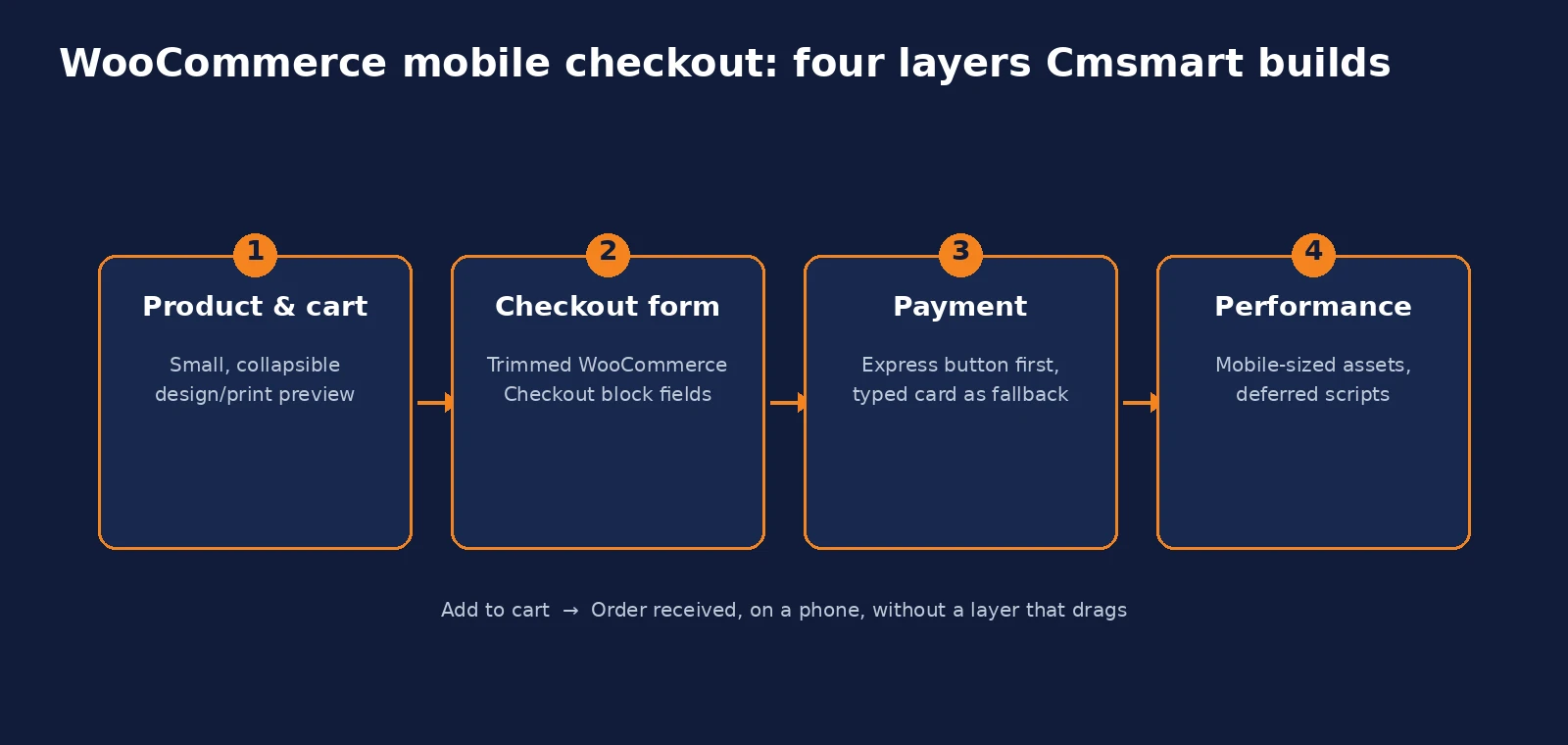

Diagram of the four-layer WooCommerce mobile checkout architecture Cmsmart builds: product and cart, checkout form, payment, performance
How the four layers connect, in order, from Add to cart to Order received on a phone.
A simple two-choice step ahead of WooCommerce mobile checkout: Cmsmart's upload-or-design-online chooser keeps the first decision to one tap
Fewer choices earlier in the flow mean less to decide once the shopper reaches checkout: Cmsmart Product Designer's chooser offers exactly two paths.

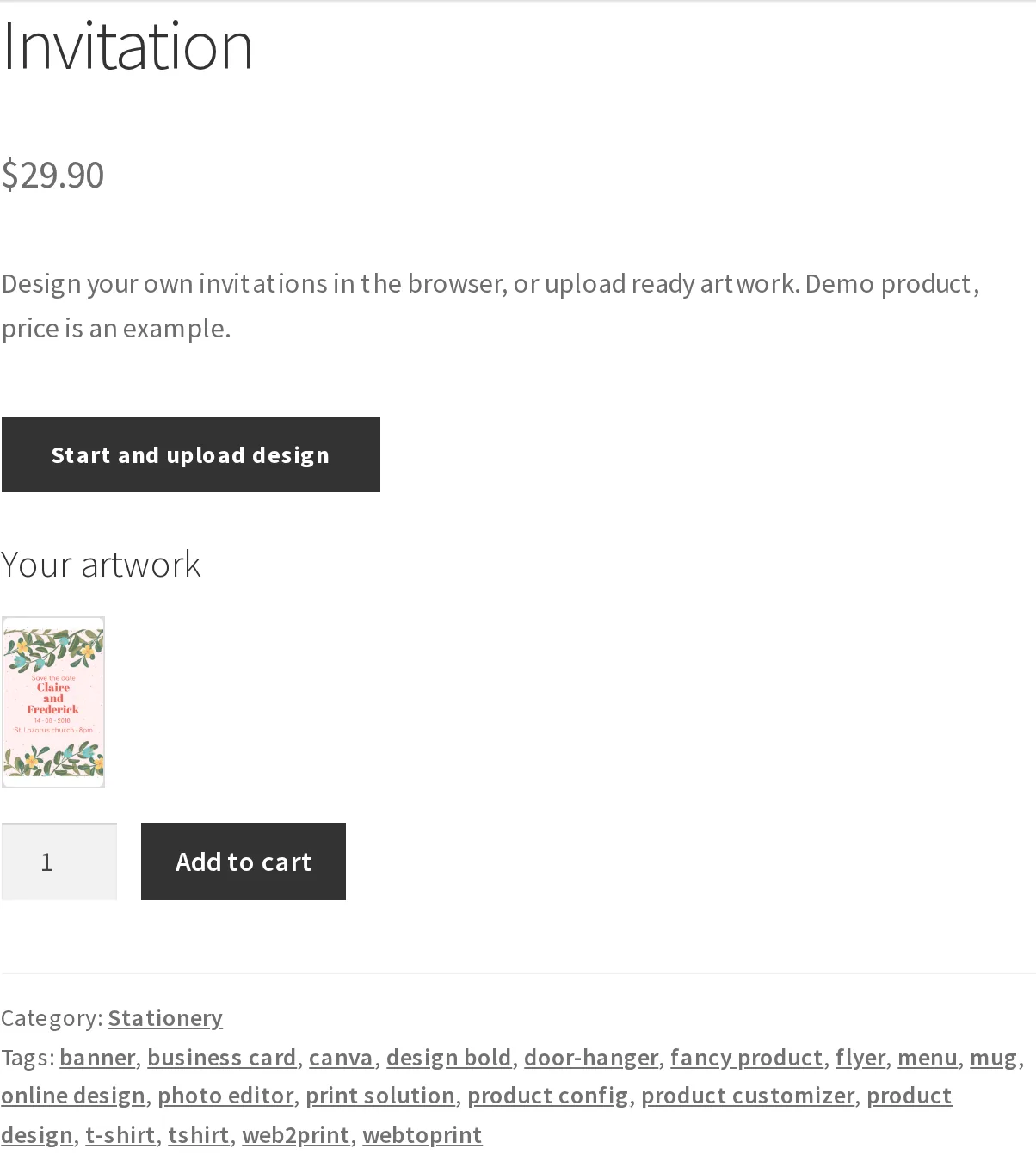

Confirmed artwork on the WooCommerce product page before checkout, so no design decisions are left for the checkout form
The design is confirmed as "Your artwork" on the product page, before Add to cart — checkout only has to collect payment and shipping.

For stores selling customized products, this hand-off matters even at checkout: Cmsmart's 2.17.0 release fixed WooCommerce checkout so an order with both a saved design and print options shows its quantity once instead of twice, and the approved-artwork lock keeps a design tied to its order the moment a shopper pays, so nothing about the customization needs re-confirming later.

Checkout elementTypical stock WooCommerce checkoutCmsmart-built mobile checkout
Visible fields on first screenFull billing form, every field shown at onceOnly what the order needs; optional fields collapsed
Payment entryTyped card number firstExpress payment button first, typed card as fallback
Steps to payOne long page, or an unoptimized multi-step flowSingle scrollable page with clear section headers
Customized product detailsDesign or print-option text repeated in cart and checkoutCollapsed preview; approved-artwork lock keeps the order consistent
Page weight on mobileDesktop images and scripts loaded as-isMobile-sized assets, deferred non-critical scripts

What's the business value of fixing WooCommerce mobile checkout?

Cmsmart frames mobile checkout work as a direct revenue line: fewer abandoned phone carts and a shorter time-to-order both show up in WooCommerce's own order data within weeks, long before a wider redesign would pay for itself through traffic growth alone.

BenefitHow it shows up in your businessKPI to track
Fewer abandoned mobile cartsMore of the orders already in your cart become revenue, with no extra ad spendMobile checkout completion rate (WooCommerce Analytics)
Shorter time-to-orderImpulse and repeat buyers pay before they get distracted or lose signalMedian checkout duration
Fewer support ticketsLess staff time spent answering "my order wouldn't go through" emailsCheckout-related tickets per month
Higher mobile average order valueExpress payment and a faster page cut down on last-minute cart editsMobile AOV vs. desktop AOV

Rough-cut ROI worksheet. Use your own numbers from WooCommerce Analytics: monthly mobile checkout starts, multiplied by the gap between your current completion rate and the completion rate you expect after the fixes, multiplied by average order value, equals recovered monthly revenue. Even a modest gain in completion rate, applied to every mobile checkout start you already pay to acquire, usually outweighs the cost of the build within a quarter or two.

For a deeper look at a single-page layout, see Cmsmart's one-page checkout guide; for the wider mobile-commerce picture, read Cmsmart's mobile commerce strategy guide.

How do you set up a leaner WooCommerce checkout, step by step?

Cmsmart runs every mobile checkout project through the same sequence: audit on a real phone, cut and reorder fields, turn on express payment, tune page speed, then test again on the device you started with, so nothing ships on guesswork.

  1. Open your live checkout on an actual phone, not a resized browser window, and time how long it takes to reach the payment button.
  2. List every field currently shown and mark which ones WooCommerce truly needs to fulfil the order; most stores can collapse company name, a second address line, and order notes behind "Add details".
  3. Check your active payment gateway's settings for an express payment option, such as Apple Pay, Google Pay or WooPay, and move it above the typed card form.
  4. Turn on autocomplete attributes on the remaining fields so the phone's keyboard and saved-address autofill can do the typing.
  5. If the store sells customized products, confirm the cart and checkout only show a small design preview and an edit link, not the full option list again.
  6. Run the checkout page through a mobile page-speed check and address the largest images, fonts, and scripts first.
  7. Test the full flow again on the same phone from step one, including a failed-payment case, before publishing the change.
  8. Re-check WooCommerce Analytics two to four weeks later and compare mobile checkout completion against your baseline.

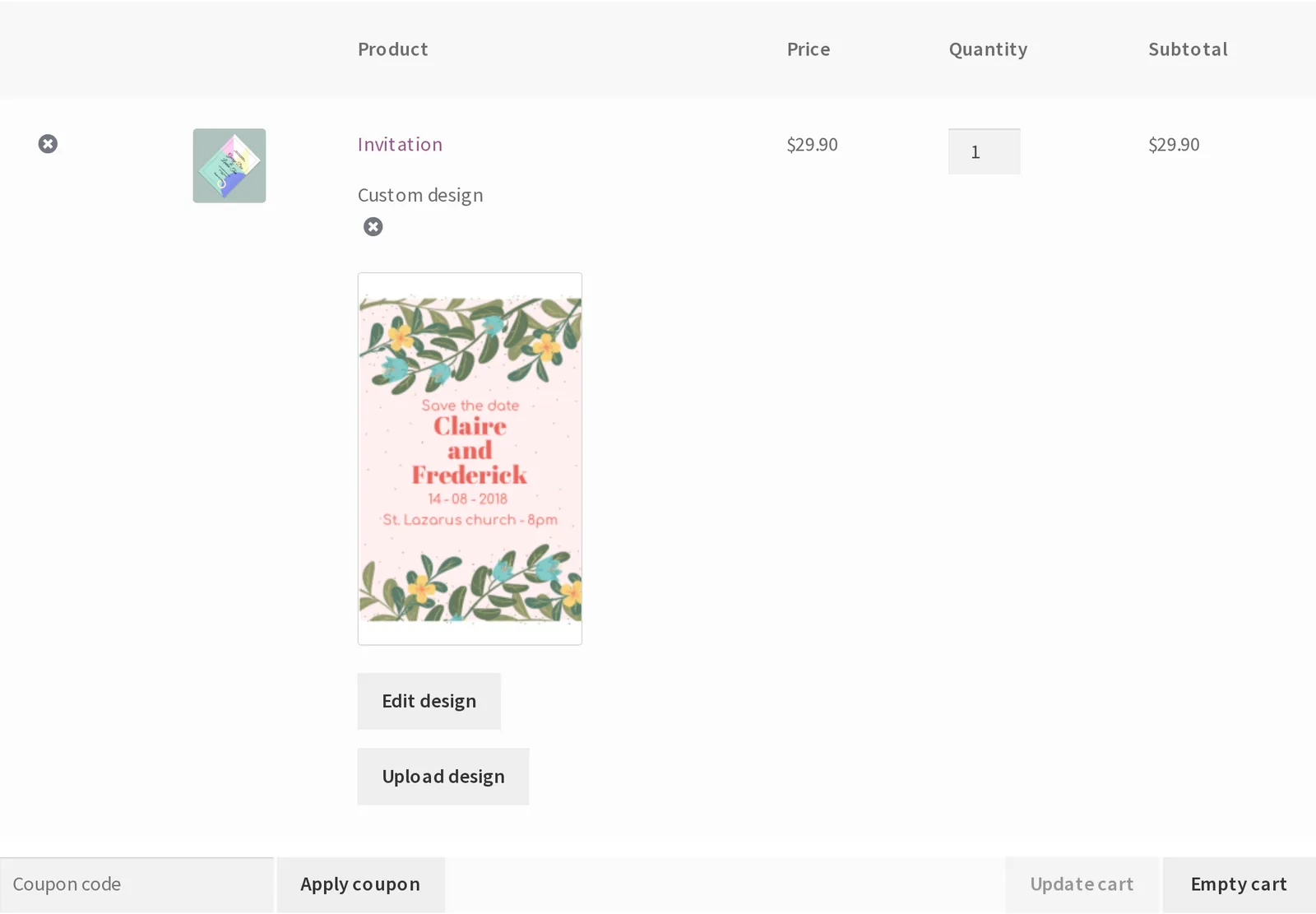

WooCommerce cart line item with a small design preview, keeping the page focused ahead of checkout
The cart keeps a customization preview small, with Edit and Upload links instead of a repeated option list — one less thing checkout has to carry.

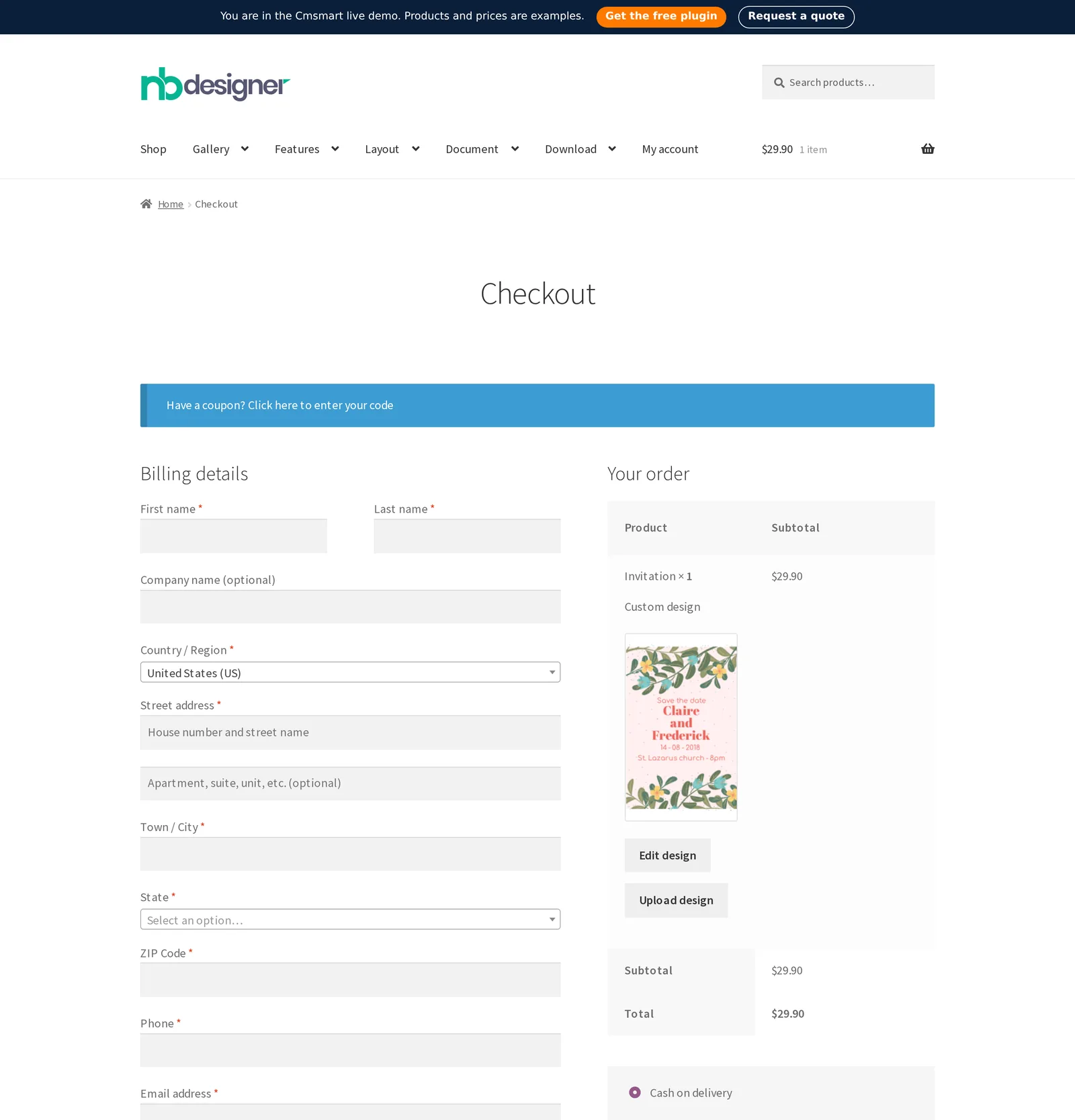

A real WooCommerce checkout form with billing fields, order review, and payment method, used to audit how many fields a mobile shopper must fill in
A real WooCommerce checkout: open the same form on your own phone first and time it before changing anything.

Going further: what can Cmsmart build on top of your WooCommerce checkout?

Beyond configuration, Cmsmart builds custom WooCommerce checkout experiences for stores that have outgrown the default flow: condensed mobile-first checkout templates, express-payment and autofill integrations, and performance rebuilds tuned to each store's own theme and catalogue.

  • A purpose-built mobile checkout template. When field trimming and settings changes run out of room, Cmsmart builds a custom checkout layout: one scrollable mobile page, grouped sections, and a sticky pay button, built for merchants as custom development on top of WooCommerce.
  • Express payment and autofill wiring. Cmsmart connects Apple Pay, Google Pay, and address-autocomplete services to your existing payment gateway so returning shoppers can pay in one tap instead of retyping an address.
  • Mobile performance tuning. Cmsmart audits and rebuilds the checkout page's images, fonts, and scripts for mobile networks, including stores running Cmsmart Product Designer where a saved design preview has to load fast without blocking the pay button; see Cmsmart's progressive web app and mobile-speed work.
  • Checkout logic for customized and B2B orders. Minimum order quantities, print-option surcharges, or company purchase-order fields do not need to clutter every shopper's checkout; Cmsmart builds conditional logic so they only appear for the orders that need them.
  • Post-launch monitoring. Cmsmart sets up checkout funnel tracking in WooCommerce Analytics so you can see where mobile shoppers still drop off after launch, not just whether the project "feels" faster.

Every build follows the same path: discovery call, solution design, build sprints, QA on real devices, launch, and ongoing support — the same delivery model behind the case studies on the Cmsmart ecommerce projects hub.

Plan my mobile checkout rebuild

Why work with Cmsmart on your WooCommerce checkout?

Cmsmart has built and customized WooCommerce stores since 2012 as a Netbase JSC division, with thousands of client projects behind its checkout, product-designer, and performance work — proof you can check on Cmsmart's own platform page before you commit to a build.

Cmsmart has delivered 6,300+ client projects and 4,600+ completed projects since 2012, with 1,800+ stores live today across 80+ countries — figures drawn from Cmsmart's own project records on the Cmsmart platform page. Reviewers rate Cmsmart 4.2 out of 5 from 404 reviews on Trustpilot.

Frequently asked questions about WooCommerce mobile checkout

How long does a WooCommerce mobile checkout rebuild take?

Most projects run several weeks from discovery to launch, depending on whether we are reconfiguring the existing WooCommerce Checkout block or building a fully custom mobile checkout template. Request a project proposal for a timeline based on your store.

Can Cmsmart add Apple Pay and Google Pay to our existing checkout?

Yes — Cmsmart wires express payment buttons into your current WooCommerce payment gateway and checkout template, so returning shoppers see a one-tap option instead of a full card form.

Will a faster mobile checkout still work with Cmsmart Product Designer's custom products?

Yes. Cmsmart builds the checkout changes around the existing design and print-option data, including the approved-artwork lock, so a customized order still carries its saved design and options through to payment.

Do we need to rebuild the whole site, or just checkout?

Most stores only need checkout, cart, and the payment step touched. Cmsmart scopes the build around those pages rather than the whole theme, unless a site-wide performance problem is part of the brief.

How do you test the new checkout on real phones?

Cmsmart tests on a short list of real Android and iOS devices on a mobile connection, not just a resized desktop browser, and checks a successful order, a failed payment, and a guest checkout before launch.

What KPIs should we track after the change?

Mobile checkout completion rate, median checkout duration, and checkout-related support tickets, all available in WooCommerce Analytics, show the real effect within weeks of launch.
