Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 · Updated October 2026. Everything below is read from the Cmsmart > Overview screen in WP Admin, the Clients, Orders and Cmsmart Cloud screens it links to, and the public 2.17.0 changelog — no field or number here is invented.

In short

  • The Cmsmart Product Designer dashboard (Cmsmart > Overview) gives an owner or shop manager one screen for revenue, orders, production, AI usage, at-risk clients and unfinished setup, instead of five.
  • It works by pulling WooCommerce order data, the Cmsmart Clients CRM and Cmsmart Cloud AI usage into stat cards, a 30-day revenue chart, a care queue and quick links, refreshed on page load.
  • Setting it up takes no configuration: it appears automatically once the plugin is active and WooCommerce has orders; reading it well takes a two-minute daily habit and, for teams that outgrow it, custom KPI widgets.

A print shop owner who wants to know whether yesterday was a good day currently checks WooCommerce orders, a spreadsheet, and a chat thread with the shop floor. The Cmsmart Product Designer dashboard puts revenue, production status, at-risk clients and AI usage on one screen, so that daily check takes two minutes instead of twenty.

That single screen is Cmsmart > Overview in WP Admin, shipped with every install — no extra plugin, no separate reporting tool. This chapter reads every element on it, shows what a print shop, a POD brand and a B2B account manager should each watch first, and flags the mistakes we see admins make with it.

Why does checking orders, revenue and clients by hand cost a print shop money?

Cmsmart Product Designer's Overview dashboard replaces the morning ritual of pulling WooCommerce orders, a spending spreadsheet and a CRM export into one screen, so an owner spots a stalled order or an at-risk client in minutes instead of losing an hour to three different logins.

Before a dashboard like this exists, the daily routine at most small shops looks the same:

  • Revenue is a guess until month-end. Nobody opens WooCommerce > Reports every morning, so a bad week is noticed two weeks late.
  • Production status lives in someone's head. "Where are we on order #1675?" gets answered by walking to the press, not a screen.
  • At-risk clients go quiet. A customer who placed one large order and never came back needs a win-back email, but nobody is tracking it.
  • AI and system costs are invisible. Background removal, upscale and preflight calls run against a token balance nobody checks until it runs out mid-order.
  • Setup gaps sit unnoticed. A newly imported product never enabled for customization quietly turns away every customer who tries to personalize it.

None of this is specific to Cmsmart: small business owners spend roughly a third of a 45–50 hour work week on manual admin and reporting tasks, according to a 2025 Xero analysis of owner surveys. For a shop running on WooCommerce, which reports more than 7 million active installations, that admin time is usually spent re-deriving numbers a dashboard could already show at login.

What would it look like if the dashboard actually ran your morning?

Cmsmart Product Designer's Overview screen is built so a shop owner's first two minutes at a desk replace the first twenty: one glance at revenue, production and the care queue decides what gets done before lunch.

Example scenario. A shop owner opens wp-admin before the first coffee. The Overview screen already shows overnight orders moving into production, a server notification worth a quick note to the host, and a few quiet clients in the care queue. Before the coffee is finished, the owner has forwarded one order to the print floor, sent one win-back email, and flagged one hosting ticket — all from the same screen, no spreadsheet opened.

That is the intent of the screen: not a vanity report, but a worklist generated from the store's own data.

How does Cmsmart's Overview dashboard turn store data into a daily worklist?

Cmsmart Product Designer assembles the Overview screen from three data sources already in your store: WooCommerce orders, the Cmsmart Clients CRM and Cmsmart Cloud AI usage, laid out as stat cards, a trend chart, a care queue and quick links, so nothing needs a separate report.

Four building blocks make up the screen:

  • Stat cards. Revenue, Orders and In production for the last 30 days, plus an AI Tokens balance, each linking into the matching screen.
  • Revenue trend and activity. A 30-day bar chart plus a Recent orders / Recent activity feed, so a spike or stall is visible without opening Reports.
  • Notifications and Care queue. System checks plus client-lifecycle counts (at-risk, open quotes, design-abandoned, leads) from the Clients CRM Cmsmart added in version 2.10.0.
  • Clients, Top products and Quick actions. A 30-day client summary, best-selling design-enabled products, and shortcuts into Import Products, Manage Products, Cliparts, Fonts and Settings.

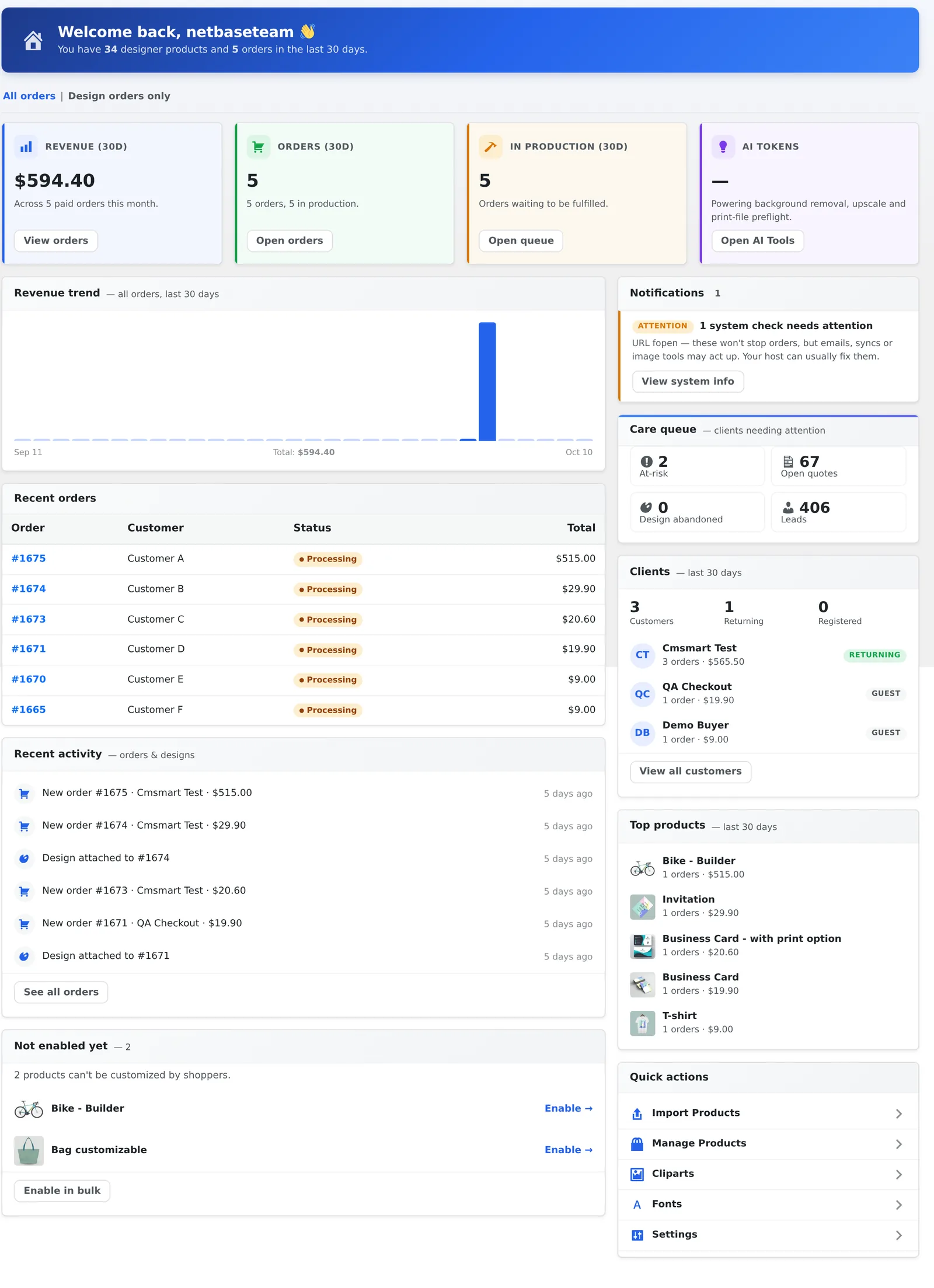

Cmsmart Product Designer dashboard — WP Admin Overview screen showing revenue, orders, AI tokens and the client care queue
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart > Overview — the full dashboard a shop manager opens first.

Every number on this screen comes from aggregate SQL rather than loading full order objects. Cmsmart rebuilt the Overview and Clients queries in version 2.13.3 specifically so stores with a long order history stop timing out, walking the order history in batches of 200 instead of pulling every row into memory at once.

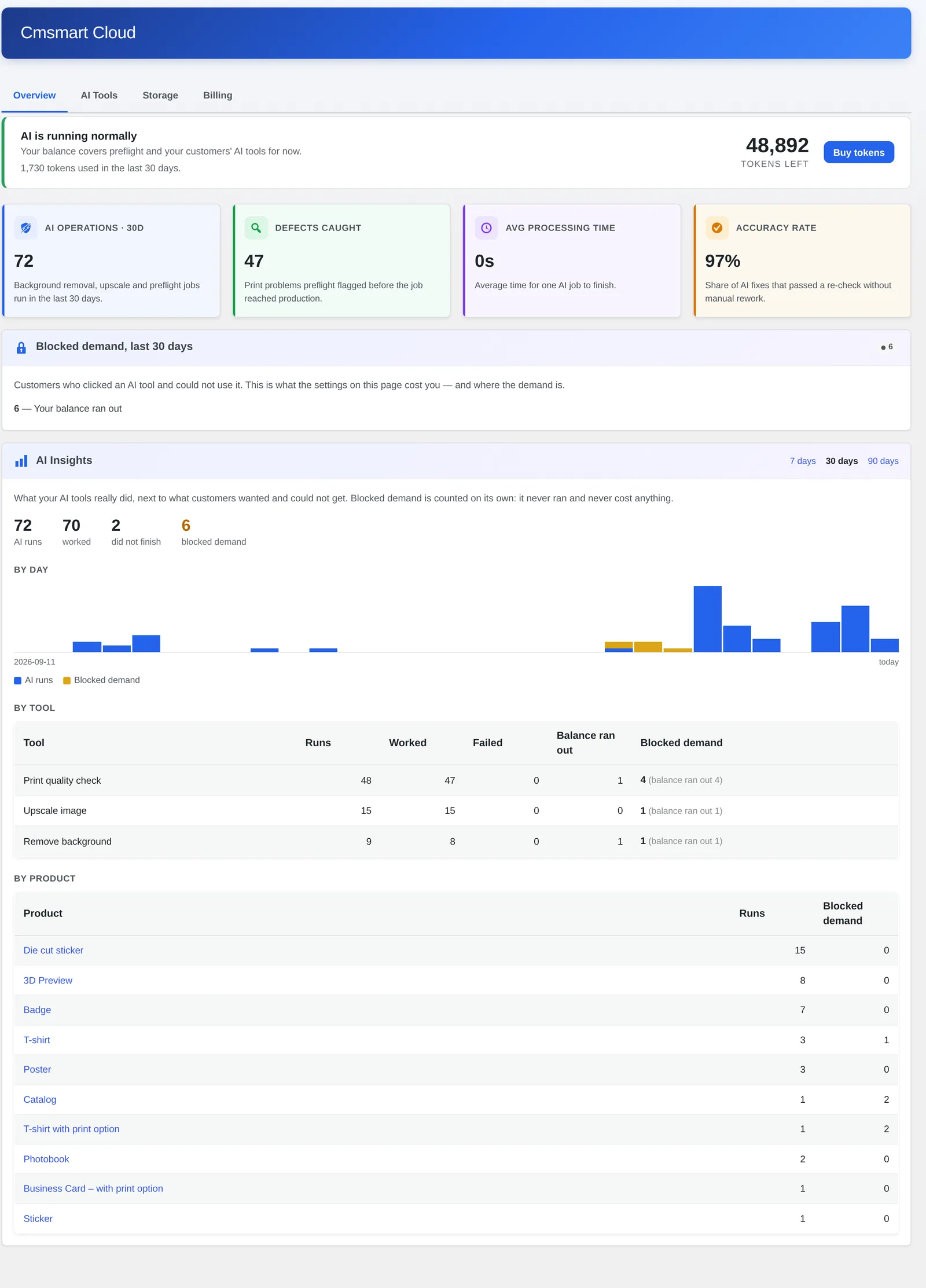

Cmsmart Cloud AI Tools overview tab showing the token balance behind the Overview dashboard's AI Tokens card
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart Cloud > AI Tools — where the Overview's AI Tokens card gets its balance and usage breakdown for background removal, upscale and AI preflight.

What each part of the Overview screen shows you

Element (as shown)What it doesDefault / empty stateWhat to watch — print shop / POD apparel / B2B
Revenue (30D)Paid order revenue, trailing 30 daysZero on a fresh installPrint shop: vs. press capacity; POD: marketplace payout spikes; B2B: vs. account minimums
Orders (30D) / In production (30D)Order count and how many are still unfulfilleddefault: as installedAll three: a growing gap means the print floor is falling behind sales
AI TokensRemaining balance powering background removal, upscale and print-file preflightdefault: as installedA shrinking balance mid-month means orders stop getting checked before the cycle ends
Revenue trend30-day bar chart of paid order revenueFlat with no ordersB2B: watch for weekly cycles tied to purchase-order approval days
Recent orders / Recent activityLatest orders and order/design eventsEmpty, no orders yetFastest way to see a design attached without opening each order
Not enabled yetProducts imported but not yet customer-customizableHidden when every product is enabledPOD: a common cause of support tickets about non-customizable products
NotificationsServer/system checks, for example a disabled PHP settingHidden when nothing needs attentionResolve before it quietly breaks emails, syncs or AI calls
Care queueAt-risk, open quotes, design-abandoned and lead counts from the Clients CRMdefault: as installedB2B: open quotes are usually the highest-value number here
Clients (30D) / Top productsNew vs returning customers, and best-selling design-enabled productsEmpty on a fresh installPrint shop: cross-check against press setup time, not just revenue
Quick actionsShortcuts to Import Products, Manage Products, Cliparts, Fonts, SettingsAlways visibleFaster than the left-hand admin menu for daily tasks
TaskManual workflowCmsmart Product Designer Overview
Checking revenueExport WooCommerce orders to a spreadsheet every morningRevenue (30D) card and trend chart, already filtered to paid orders
Tracking productionWalk the floor or message staff for order statusIn production stat plus Recent orders / Recent activity
Spotting at-risk clientsRemember who has gone quiet, or run a separate CRM exportCare queue surfaces at-risk, open-quote and abandoned-design counts automatically
Watching AI spendNo visibility until background removal or preflight stops workingAI Tokens card plus Cmsmart Cloud > AI Tools usage breakdown

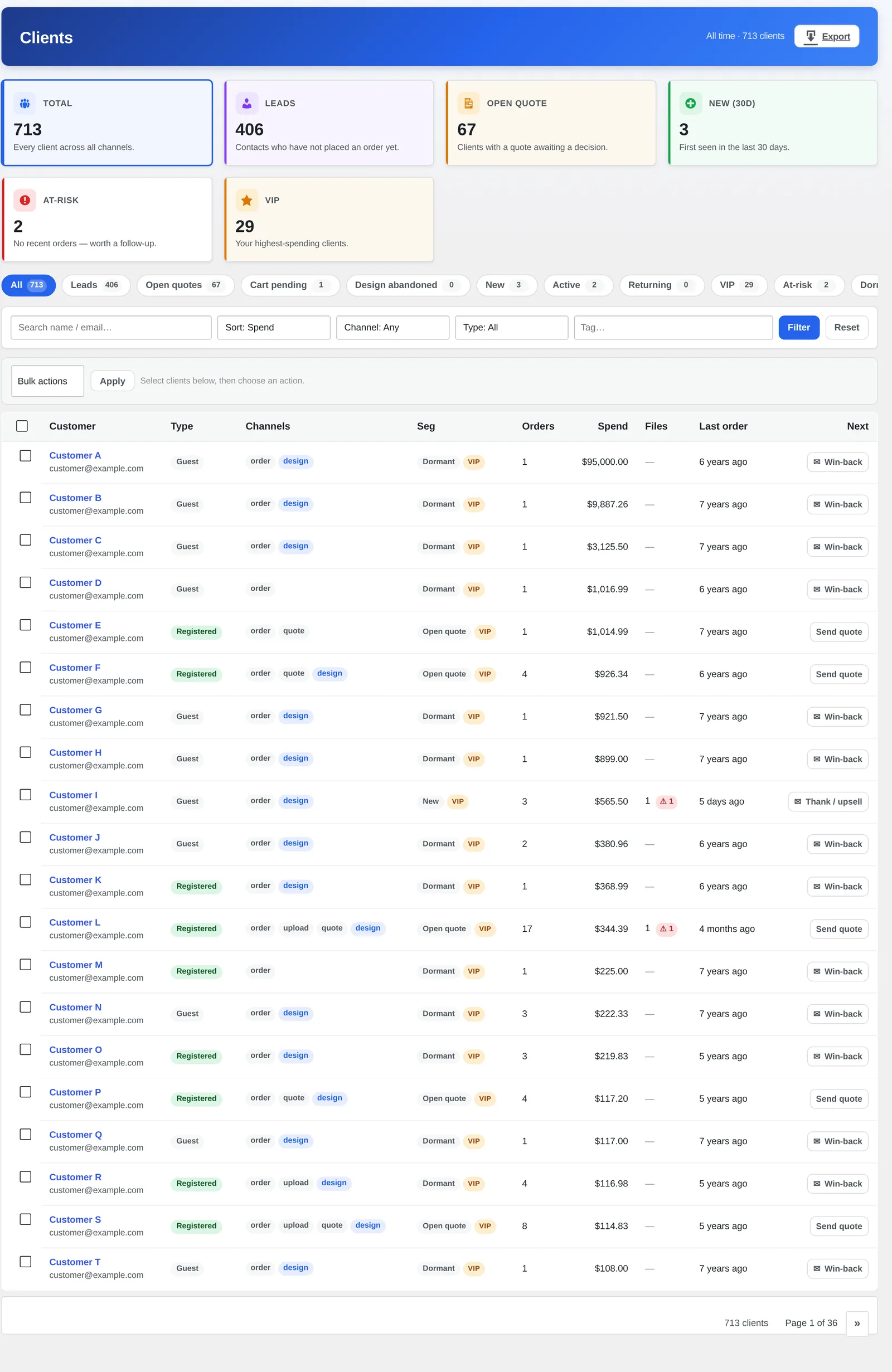

Cmsmart Clients CRM screen behind the Overview dashboard's care queue counts for at-risk and open-quote clients
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart > Clients — the care-queue counts (at-risk, open quotes, leads) come from this CRM.

What's the ROI of reading the Overview dashboard every day?

Cmsmart Product Designer's Overview screen turns a 15-to-20-minute multi-tab routine into a two-minute scan, and the saved time compounds: a care-queue win-back caught a week earlier, or a production backlog spotted before a customer calls, both show up as retained revenue rather than admin hours.

BenefitHow it shows up in your businessKPI to track
Faster daily triageOwner or manager decides the day's priorities from one screen instead of threeMinutes spent on the morning admin check
Fewer missed at-risk clientsCare queue turns a quiet account into a visible, actionable countAt-risk count trend, win-back reply rate
Caught setup gapsThe Not enabled yet list stops a newly imported product from silently losing design ordersDays between import and enabling
Controlled AI spendAI Tokens card flags a balance before it blocks preflight mid-monthTokens used vs. remaining, by week

Back-of-envelope ROI: (minutes saved per daily check) × (checks per month) × (your hourly cost) = monthly time value. Example: dropping a 20-minute multi-screen routine to a 3-minute dashboard scan, over 22 working days a month, recovers roughly 6 hours of admin time — before counting a single saved client or caught production delay.

Cmsmart insight: In our projects, the dashboards an owner actually opens every day are the ones with four or fewer numbers above the fold. Stacking on more KPIs than that usually means people stop looking at any of them. Pick the two or three cards that match your business model — production backlog for a print shop, AI token balance for a POD brand, open quotes for a B2B account manager — and treat the rest as backup.

How to set up your morning around the Cmsmart Product Designer dashboard

The Cmsmart Product Designer dashboard needs no configuration of its own: install and activate Cmsmart Product Designer 2.17.0, let WooCommerce record a few orders, and the Overview screen populates itself — the steps below are about reading it well, not setting it up.

  1. Confirm Cmsmart Product Designer 2.17.0 (or later) is active under Plugins — the Overview menu only appears once the plugin is running.
  2. Open WP Admin > Cmsmart > Overview.
  3. Pick All orders or Design orders only at the top, depending on whether you want full WooCommerce totals or just orders that used the designer.
  4. Check the four stat cards — Revenue, Orders, In production, AI Tokens — against what you expected for the last 30 days.
  5. Scan the Revenue trend chart for an unexplained drop or spike before it becomes a month-end surprise.
  6. Open any item under Notifications and resolve it, or forward it to your host if it is server-level.
  7. Work the Care queue: send a win-back note to at-risk clients, follow up open quotes, nudge abandoned designs.
  8. Check Not enabled yet and enable any product you want customers to personalize.
  9. Skim Recent orders and Recent activity for anything stuck in review.
  10. Use Quick actions to jump into Import Products, Manage Products, Cliparts, Fonts or Settings instead of the left-hand menu.

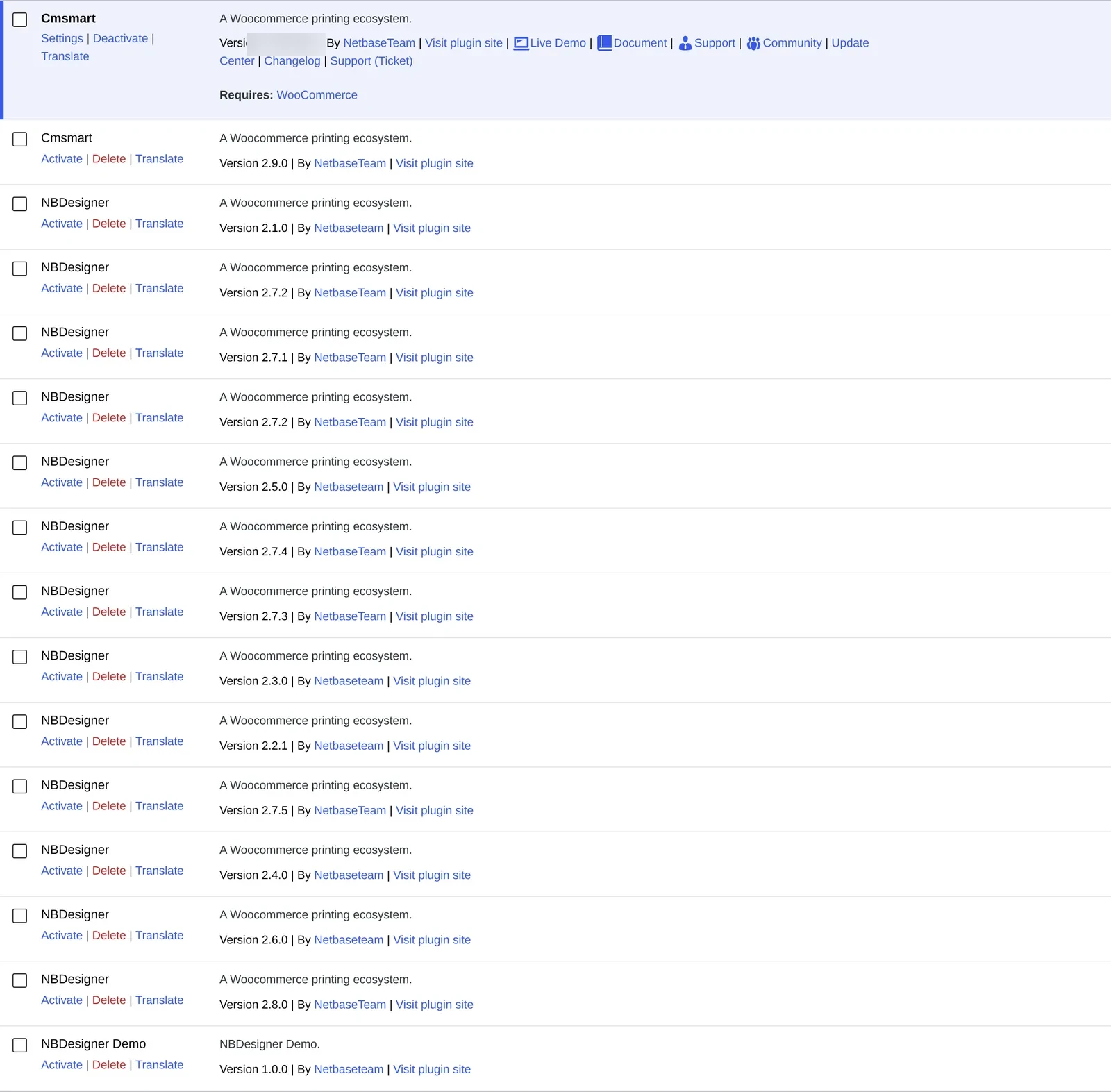

Confirming Cmsmart Product Designer is active on the WordPress Plugins screen before opening the dashboard
WP Admin > Plugins, active row (version number blurred) — the Overview screen only appears once Cmsmart Product Designer is active.

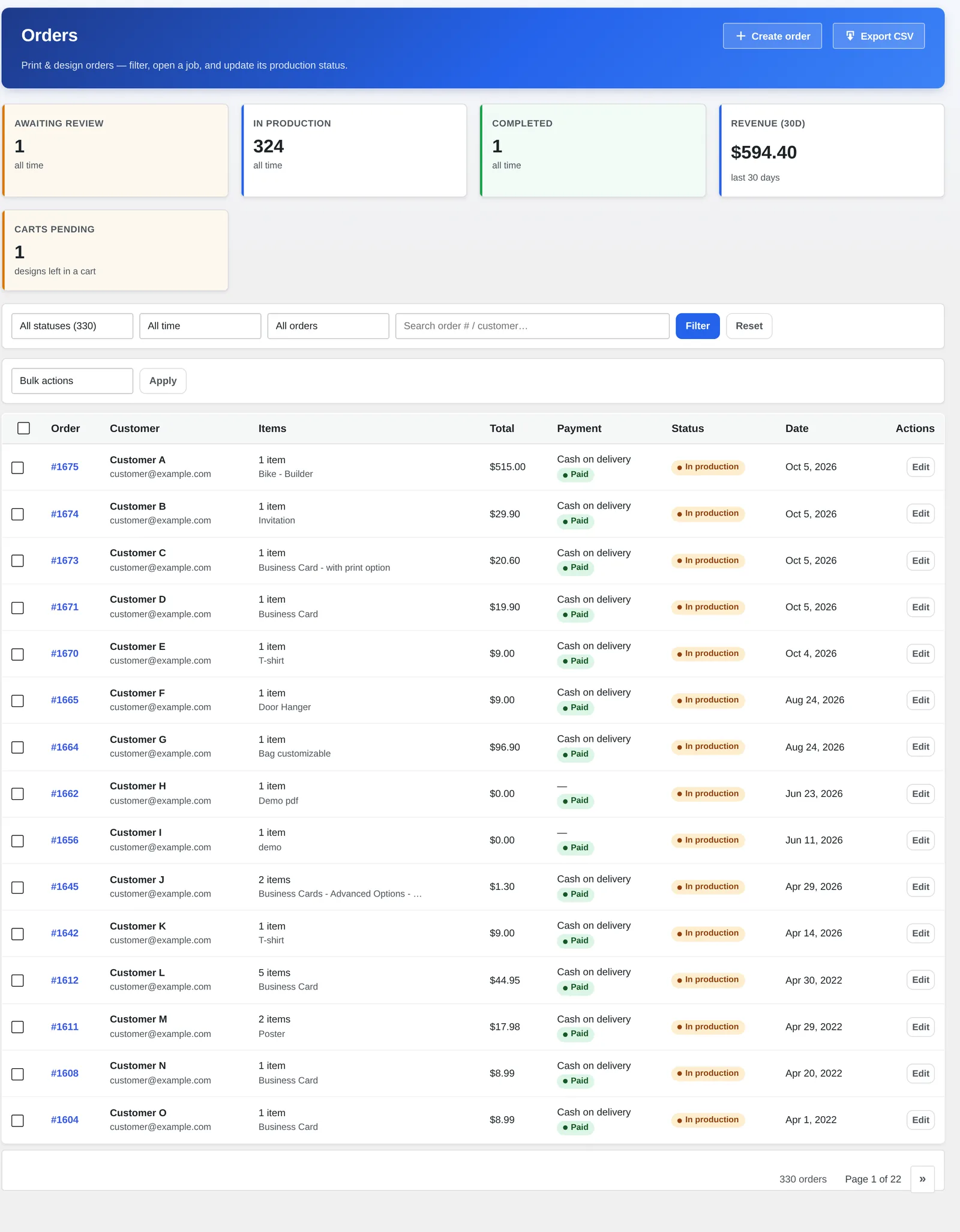

Cmsmart Orders screen that the Overview dashboard's Open orders and Open queue buttons link to
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart > Orders — where the Overview's Open orders and Open queue buttons land.

Common mistakes on the Overview dashboard

  • Reading "In production" as a queue you can reorder from here — open Orders instead.
  • Leaving "Design orders only" off, then comparing Revenue (30D) to a designer-specific report that will never match.
  • Ignoring a Notifications item because orders still come through — some checks only break emails, syncs or AI calls, quietly, for weeks.
  • Treating "Not enabled yet" as a one-time step instead of a recurring check after every import.

Troubleshooting the Overview dashboard

  • Stat cards all show zero: confirm WooCommerce is active and an order has a Cmsmart design attached — with "Design orders only" on, cards count designer-linked activity only.
  • AI Tokens shows a dash: open Cmsmart Cloud > AI Tools to confirm the license is connected and has a balance.
  • A Notifications item won't clear: open System info to see which setting it flags, then ask your host to change it.

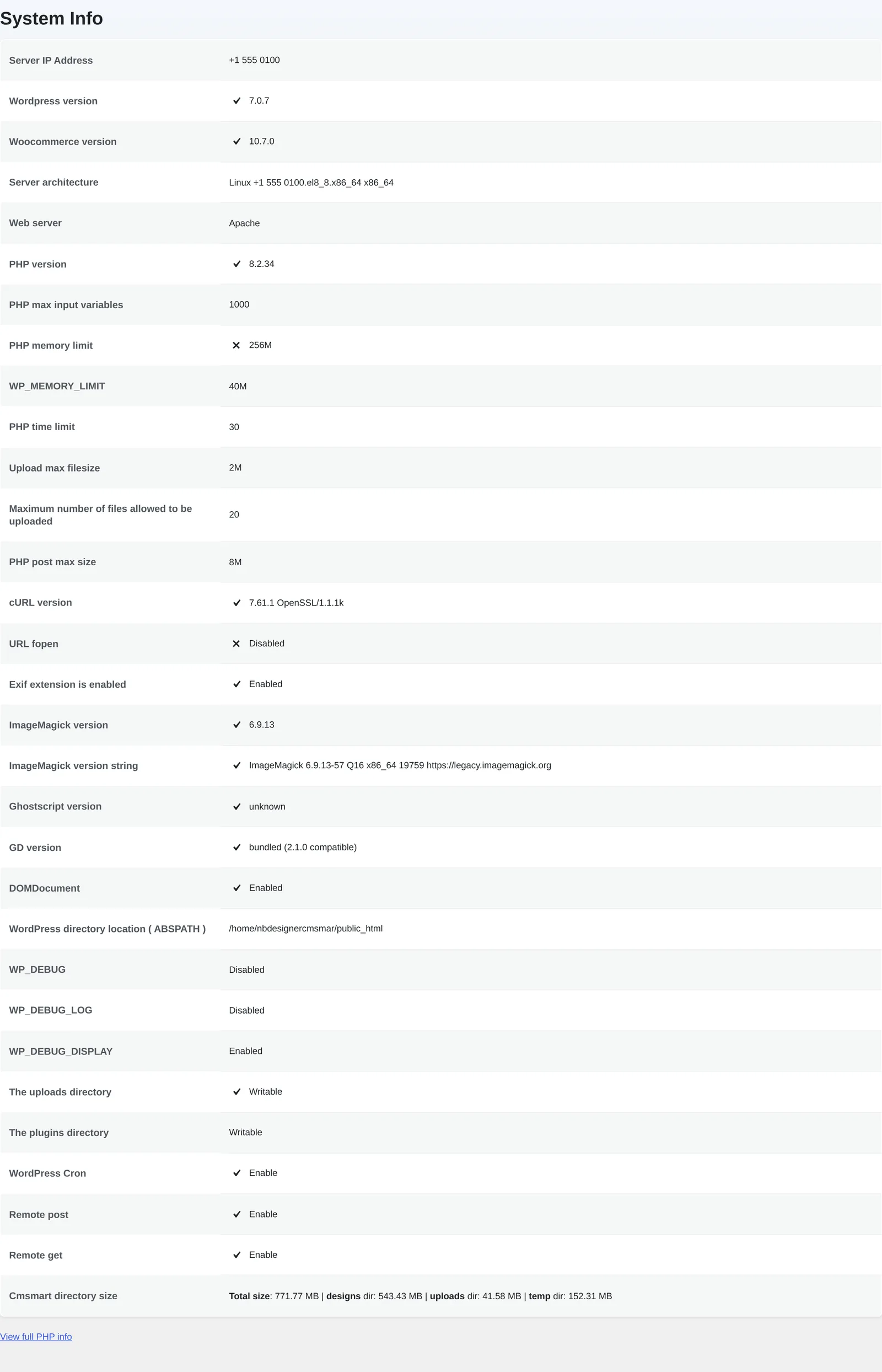

Cmsmart System info screen listing PHP and server settings behind an Overview dashboard notification
Cmsmart Product Designer 2.17.0, WP Admin > Cmsmart > System info — where a Notifications item points when it flags a server setting.

Can Cmsmart build a dashboard beyond what ships today?

The Overview screen covers orders, revenue, clients and AI usage out of the box; when a shop needs press-floor status, a multi-location split, or KPIs synced from an ERP, Cmsmart builds that as custom development on top of the same data the dashboard already reads.

Ideas we build most often once a shop outgrows the stock screen:

  • ERP/MIS-synced production status. "In production" reflects WooCommerce order status, not the real press queue — Cmsmart builds an integration that pulls actual floor status into the same card.
  • Configurable date ranges. A B2B account manager works to a monthly billing cycle, not a rolling 30 days — Cmsmart builds a date-range picker matching the 7/30/90-day pattern already used on the Cmsmart Cloud AI Tools tab.
  • Multi-location or multi-brand dashboards. A shop with two locations needs separate revenue and care queues, not one blended view — Cmsmart builds role-based dashboard scoping as custom development.
  • Scheduled digest emails. Not every owner opens wp-admin daily — Cmsmart builds an email digest of the same stat cards, delivered on a schedule.

Every one of these follows the same delivery path: discovery, solution design, sprints, QA and launch, with support after go-live — see how we run ecommerce development projects.

Plan a custom Cmsmart dashboard

Why work with Cmsmart on your admin reporting and dashboard?

Cmsmart has built and supported the Product Designer plugin and the custom work around it since 2012 as a Netbase JSC division, with 6,300+ client projects and 1,800+ live stores — the same team that built the Overview dashboard is who you would brief for a custom one.

Cmsmart Product Designer (formerly NBDesigner) and the consultancy behind it have operated as Netbase JSC since 2012, with 6,300+ client projects, 4,600+ delivered, and 1,800+ live stores across 80+ countries. Our Trustpilot rating sits at 4.2 from 404 reviews, verified on Trustpilot.

Related chapters in this admin settings guide:

For a wider view of what a web-to-print storefront can look like end to end, see our web-to-print solutions hub, the Cmsmart Product Designer plugin page, and the product designer customization service for what we build around it.

Frequently asked questions about the Cmsmart Product Designer dashboard

Who can see the Cmsmart Overview dashboard?

Anyone with WordPress shop-manager or administrator access, the same capability WooCommerce itself uses to gate its own reports — there is no separate Overview-specific permission.

Does the dashboard slow down a store with a long order history?

No. Cmsmart rebuilt the Overview and Clients queries in version 2.13.3 to scan orders in batches with aggregate SQL instead of loading every order object into memory, specifically to fix stores with a large order history timing out on this screen.

Why does "Orders (30D)" not match the total on the Orders screen?

They measure different windows: the Overview card counts the last 30 days, while the Orders screen opens on your store's all-time total until you apply a filter. Compare them with the same date range selected on both screens.

Can I change the Overview screen's 30-day window to 7 or 90 days?

Not on the Overview screen itself today — that range picker currently exists on the Cmsmart Cloud > AI Tools > Overview tab. A configurable range for the main dashboard is the kind of change Cmsmart builds as custom development, scoped through our project delivery process.
