Print-Ready PDF Plugin for WooCommerce (NBDesigner 2.17)

Applies to Cmsmart Product Designer (NBDesigner) 2.17.0 and later (captured on the live 2.18.0 demo store) · Updated October 2026. This release note has been rewritten as a business case study: every screenshot is from the current Cmsmart Product Designer (NBDesigner) plugin, and every feature named below is verified against the 2.17.0 changelog and today's captures.

In short

  • Cmsmart Product Designer 2.17 certifies a print-ready PDF the moment a buyer finishes designing, so the file production opens always matches the size, color and artwork the customer actually ordered.
  • A cloud renderer builds the file from the same page geometry as the admin's Create PDF button, locks the artwork once it is approved, and shows a plain Ready / Rendering / Failed status with a one-click Regenerate.
  • Getting this running takes an update to 2.17.x, a five-minute check of the Output settings, and one test order; anything beyond the built-in pipeline — ERP routing, gang-sheet imposition, custom ICC profiles — is custom development Cmsmart builds for your store.

What does a print file that doesn't match the order actually cost you?

Cmsmart Product Designer removes the two most common causes of reprints: a print PDF rendered at the product template's size instead of the customer's custom dimensions, and an "approved" design that someone can still quietly edit. Both are fixed at the server, not by a checklist.

Before 2.17, a few failure modes kept showing up in support tickets from print shops and POD stores running the plugin:

  • Custom-size orders rendered at the wrong size. When a buyer chose their own width and height, the automatic render used the product template's size instead, so the PDF looked like the on-screen mockup rather than the file the press needed.
  • Manual proofing by email. Without a server-side approval record, whether the customer actually signed off on this exact file was a question staff answered by searching their inbox.
  • Edits after approval. A design could be changed after an order item was marked approved, so the file that printed wasn't always the one the customer saw.
  • Reorders reusing stale files. A reorder could copy the previous order's PDF and certificate across, so no new render ran and an old file quietly shipped under a new order.
  • No visibility into failed renders. If the cloud render failed, nobody knew until the order reached the press — by which point a rerun means paper, ink and a missed deadline.

Cmsmart insight: most of the reprint conversations we have with print shops trace back to one of two things: a custom-size product whose print PDF quietly reused the template's dimensions, or an "approved" design that a staff member or customer re-opened afterward. Both are server-side problems, not training problems — which is why 2.17 fixes them at the render and the save path instead of adding another checklist.

What would it look like if every order already had its print file ready?

With Cmsmart Product Designer 2.17, the moment a buyer clicks Process, the cloud renderer builds a certified print-ready PDF at the product's real size; once an admin accepts the artwork it is locked, and the order screen simply says Ready, with the file waiting.

Example scenario. A buyer opens a print shop's invitation product at 10pm, designs their card in the browser, and checks out. Overnight, the order moves through the shop's review queue; a staff member opens the order the next morning, sees the artwork approval box already showing the design, accepts it with one click, and the Customer Design box locks it there and then — nobody can quietly resave it afterward. The print-ready PDF status on the same screen already reads Ready, rendered by the cloud renderer. There is no email thread to search, no is-this-the-final-version Slack message. The file the press opens is the file the customer approved.

How does Cmsmart's print-ready PDF plugin for WooCommerce actually work?

Cmsmart Product Designer combines an in-browser design tool, a server-side approval lock and a cloud renderer into one pipeline: design → Process → certified PDF → approval lock → download, with every step visible on the WooCommerce order screen instead of scattered across email and shared drives.

The building blocks, as they exist in the plugin today:

  • Online designer (core). The buyer designs on the product page — templates, text, clipart, photos and uploads — in the same modern editor shown below.
  • Process → certified print file (core, 2.17). Process saves the design as Your artwork and queues a cloud render. For a custom-size product, the render now reads the same page geometry as the admin's Create PDF button, instead of the template's fixed size.
  • Print-ready status (core, 2.17). The order's Create PDF tab shows Ready, Rendering, Failed or Not rendered, who rendered it and when, plus a Regenerate print-ready PDF button for support staff.
  • Approved-artwork lock (core, 2.17). Once the Customer Design box on the order accepts the artwork, saving over that design is refused server-side, whichever link or designer tab the save comes from. Editing a design after ordering generates a new print file and flags the order as changed instead of silently drifting out of sync.
  • Download formats (core). SVG, high-resolution PNG, CMYK JPG with an ICC profile and the print-ready PDF are all available from the order's Design detail screen.
  • Production routing, MIS/ERP hand-off, gang-sheet imposition (custom development). The plugin stops at a certified file per order; what happens after that — pushing it into your MIS, batching several orders onto one imposed sheet — is built for your store, not shipped as a generic default.

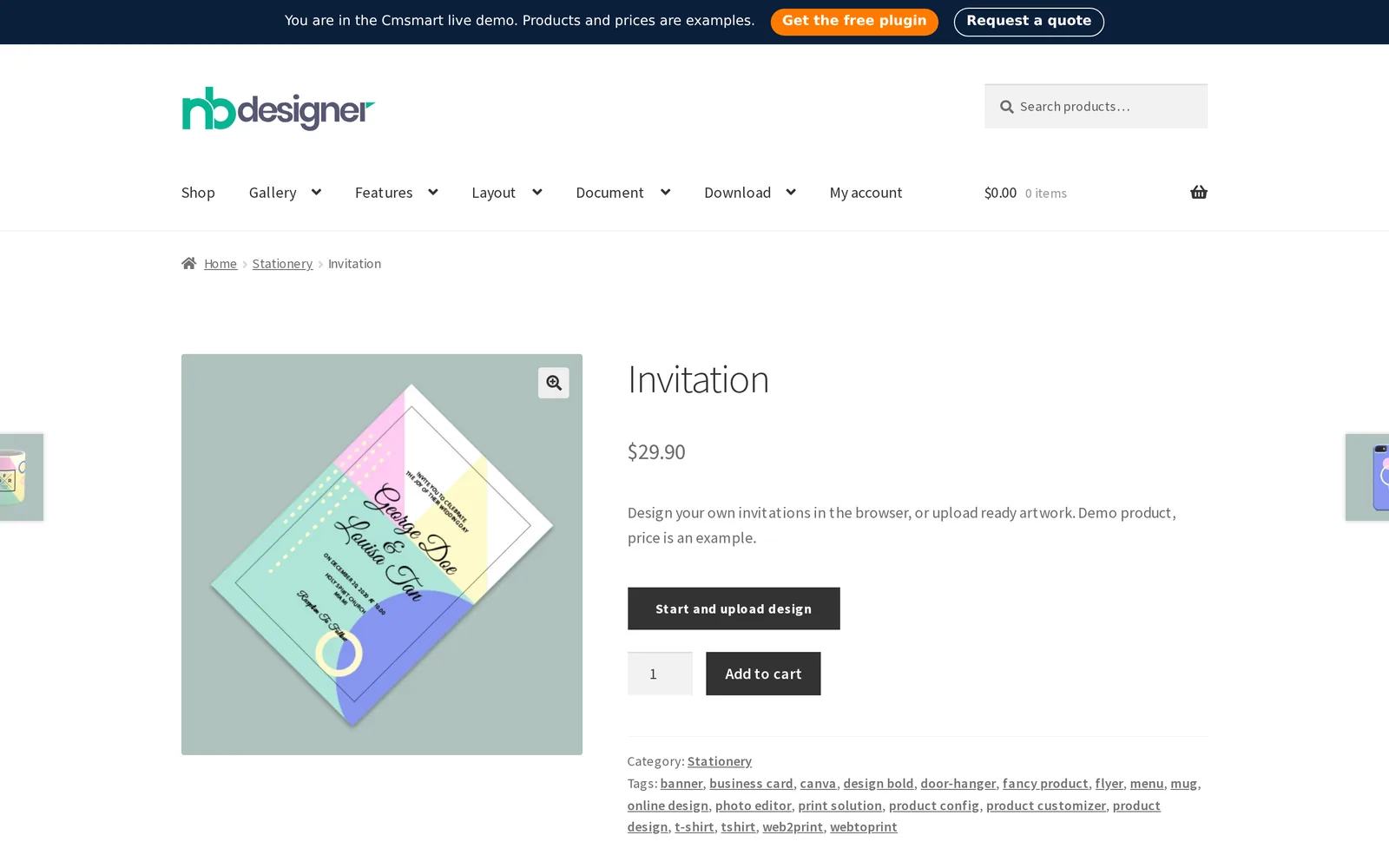

Product page for Cmsmart Product Designer, a print-ready PDF plugin for WooCommerce, with the Start and upload design button
The buyer flow starts on the product page, where "Start and upload design" opens the online designer.

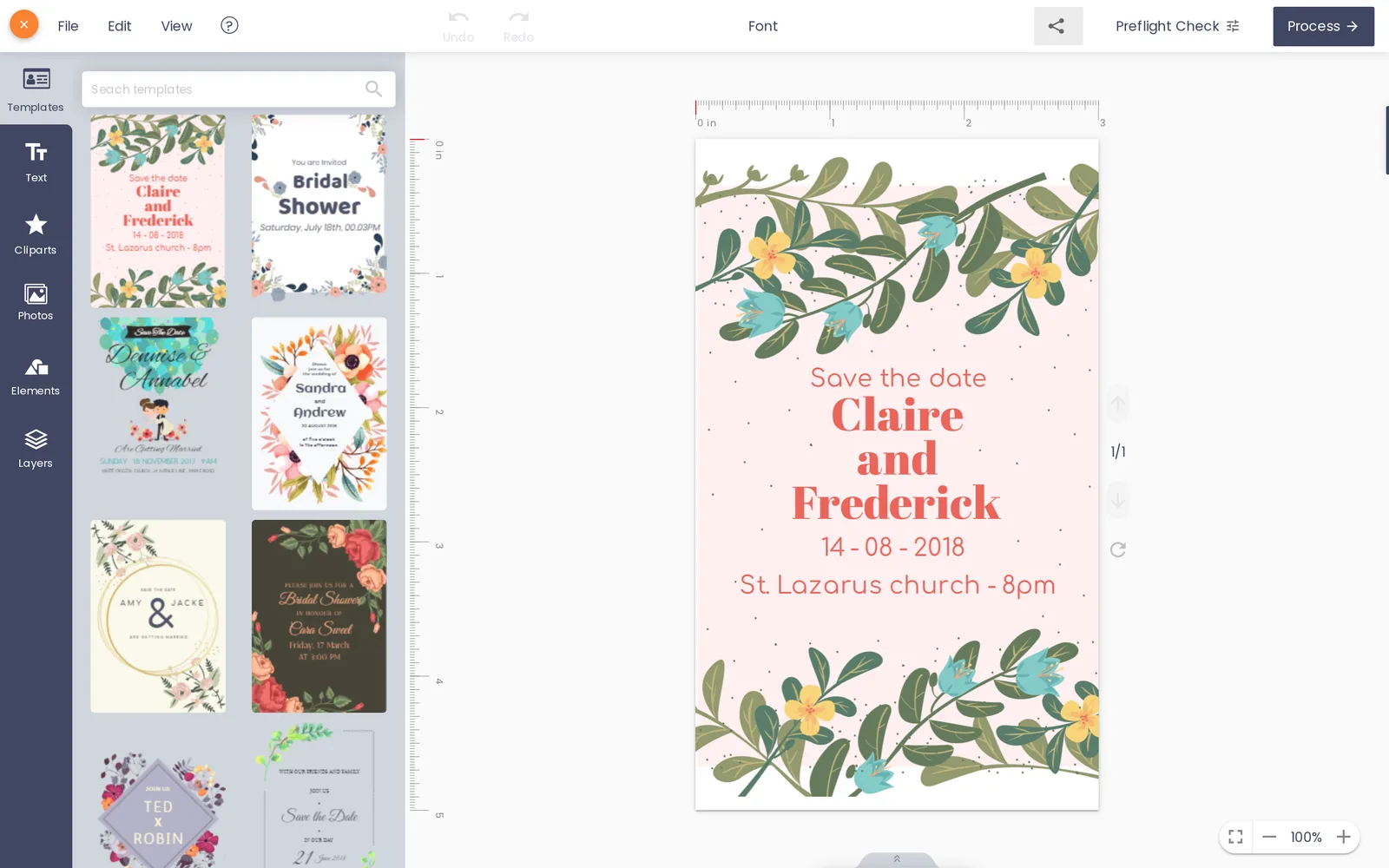

Cmsmart Product Designer online editor with a template open, showing text, cliparts and photos panels
The modern online designer: the same editor that feeds the print-ready PDF renderer once the buyer clicks Process.

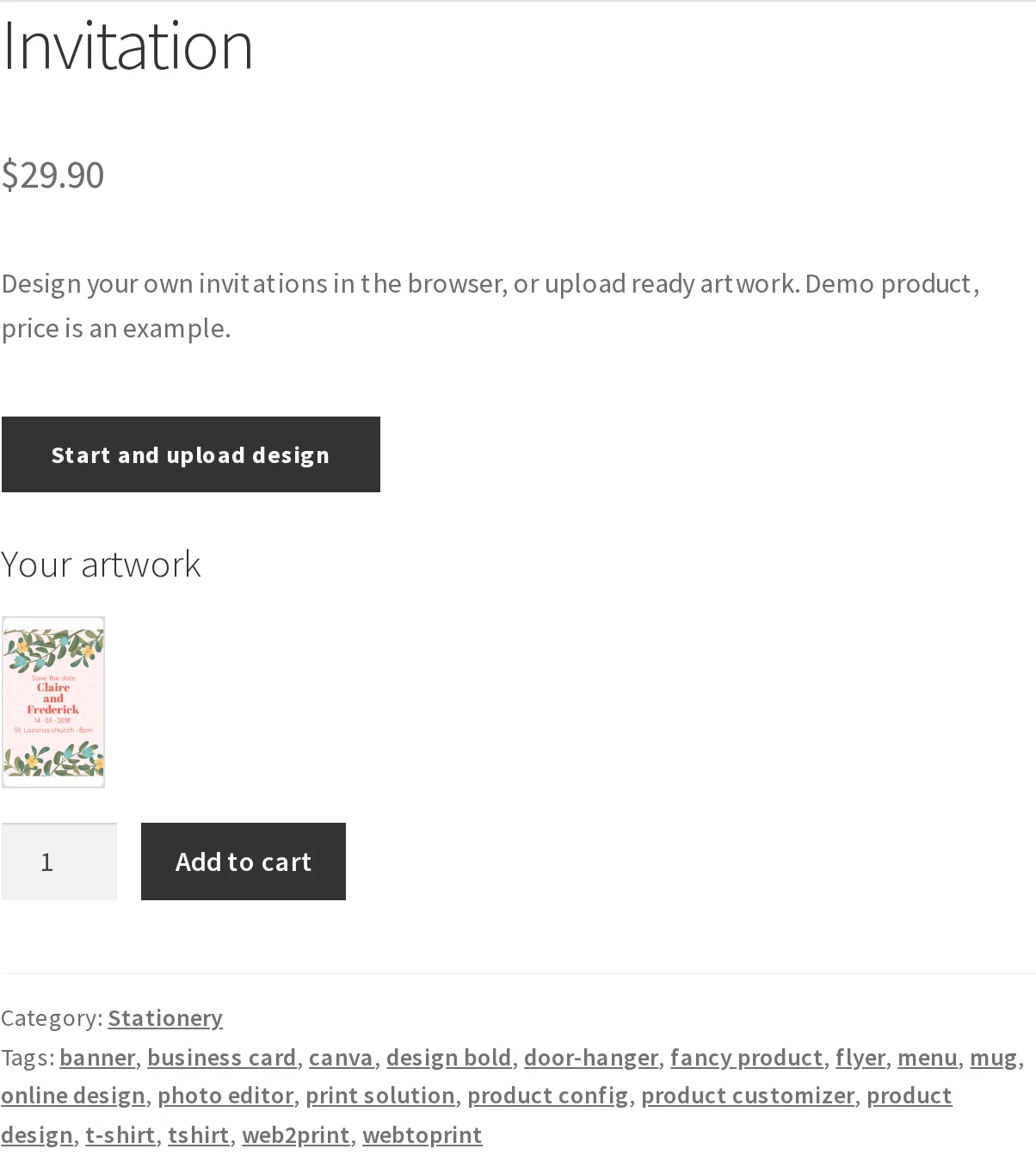

Product page showing Your artwork thumbnail after a customer finishes designing online
After Process, the saved design shows as "Your artwork" next to Add to cart — the same file the cloud renderer certifies.

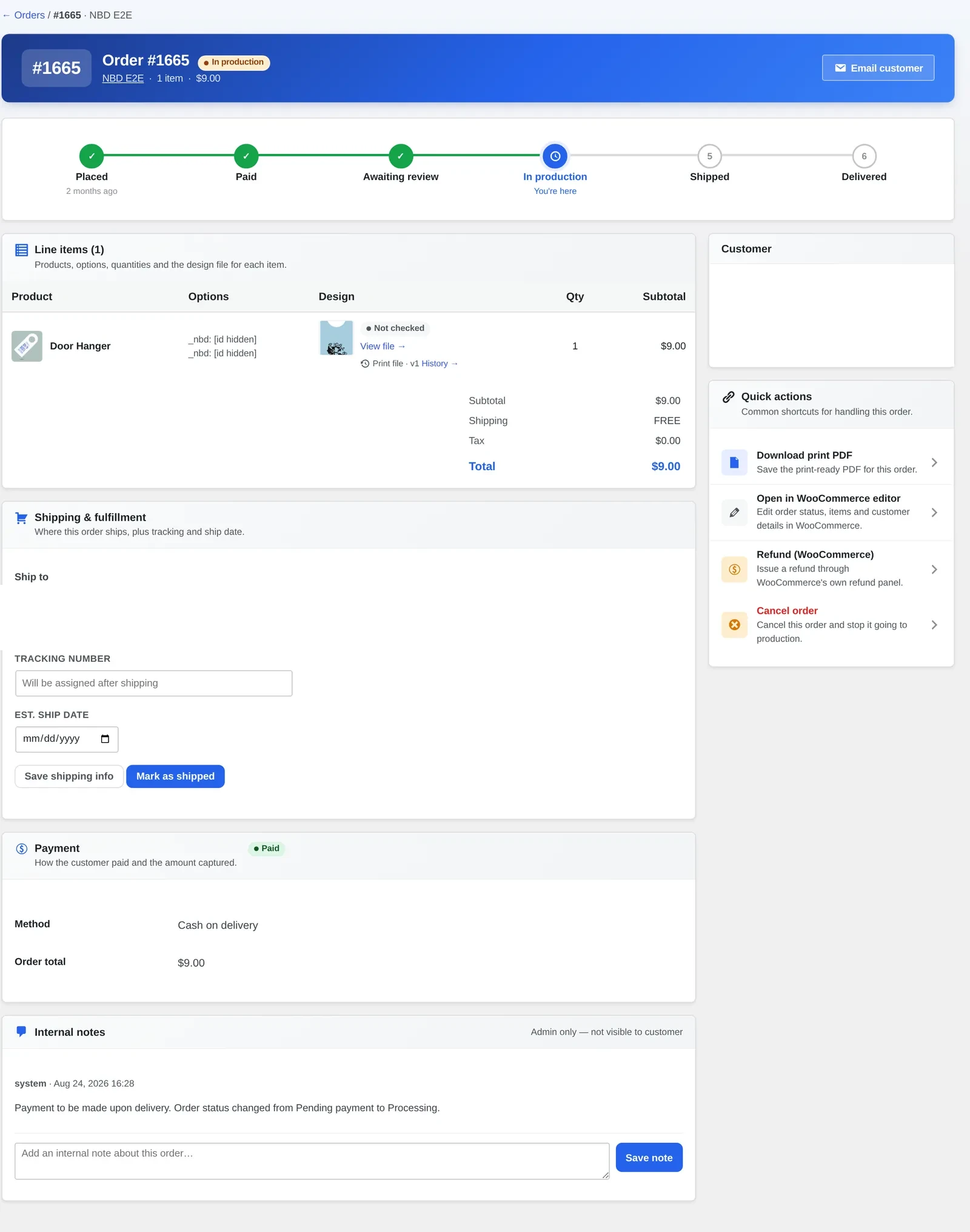

WooCommerce order detail screen with production timeline and a Download print PDF quick action
Order detail: a production timeline and a one-click Download print PDF action for staff.
StepManual / email workflowCmsmart Product Designer 2.17
Building the print fileStaff rebuilds the design in Photoshop or Illustrator after the order comes inCloud renderer certifies a print-ready PDF the moment Process runs
Custom sizesPrint PDF often matches the template, not the size the customer enteredAutomatic render reads the same page geometry as Create PDF, including custom sizes
ProofingProof emailed back and forth; no record of what was actually signed offCustomer Design box approves or declines the artwork directly on the order
After approvalA design can still be quietly re-editedApproved artwork is locked server-side; an edit opens a new print file instead
ReordersOld PDF and certificate get copied onto the new orderReordering starts a fresh print file and queues a new render
Failed rendersNobody notices until the file reaches the pressStatus reads Ready / Rendering / Failed / Not rendered, with Regenerate on demand
Video thumbnail for a Cmsmart demo of the modern WooCommerce product customization and web-to-print UI
Video: Modern WooCommerce product customization and web-to-print UI (Cmsmart on YouTube).

What's the business value of automatic print-ready PDFs?

Cmsmart Product Designer turns "is this file actually print-ready?" from a manual check into a status you can read off the order screen, which shows up in your business as fewer reprints, a shorter order-to-press time and fewer staff hours spent rebuilding files by hand.

BenefitHow it shows up in your businessKPI to track
Fewer reprints from mismatched filesProduction stops rejecting jobs because the PDF doesn't match the size or artwork the customer paid forReprint rate (% of orders reprinted)
Faster order-to-press timeNo proof-by-email thread has to close before a job can startMedian hours from Paid to In production
Safer approvalsAn approved design can't be silently changed and sent to print as something elseApproved-then-changed line items (target: zero)
Staff time backDesign and support staff stop manually rebuilding production files order by orderMinutes per order spent on manual file prep

Rough-cut ROI: orders/month × minutes your team spends manually checking or rebuilding a print file × your loaded hourly staff cost ÷ 60 = monthly staff time automatic print-ready PDFs give back. Add (current reprint rate − expected rate once files can't drift) × orders/month × average reprint cost (paper, ink, press time, shipping) for the avoided-reprint side.

The pressure to get this right is only growing: the global web-to-print market is estimated at roughly USD 27.92 billion in 2026, growing at a 5.43% CAGR through 2031, and Cmsmart Product Designer runs on WooCommerce, which WooCommerce's own published figures put at around 4 million live online stores and 31% of the top 1 million ecommerce sites — a large and still-growing pool of stores that a slow or error-prone proofing step can quietly push to a competitor's checkout.

How do you set up and check Cmsmart's print-ready pipeline after updating to 2.17?

Cmsmart Product Designer's print-ready pipeline is on by default once you update: the practical work is confirming the Output settings match how your shop produces files, then running one test order through design, approval and Create PDF to see the status for yourself.

  1. Update Cmsmart Product Designer (NBDesigner) to 2.17.x from Plugins in wp-admin, and confirm the active version on the plugin row.
  2. Open WooCommerce → Settings → Cmsmart → Output and review the general settings: watermark policy, whether customers may download a password-protected PDF, and whether bleed lines show above or below the content design.
  3. Decide your rendering location under General: cloud rendering is on by default (faster, no server load), or switch to your own server renderer if your host requires it.
  4. Under Output's Synchronize section, set Auto export design to PDF and the order status that should trigger it (Completed, Processing or On Hold) to match your production flow.
  5. If your own code or another plugin reads the legacy pdfs folder, turn on Also save print-ready PDFs in the pdfs folder so Create PDF's output keeps landing there too.
  6. Place one test order on a design-enabled product: open the designer, add text or a photo, and click Process.
  7. In the order's Customer Design box, review the artwork and click Accept, then GO — this is the point the design locks server-side.
  8. Open the order's Create PDF tab and confirm the print-ready PDF status reads Ready, with the renderer and timestamp shown; use Regenerate print-ready PDF if you changed a setting and want a fresh render.
  9. Check Download design for the formats your production team actually needs — SVG, high-resolution PNG, CMYK JPG with ICC profile, or the PDF itself.

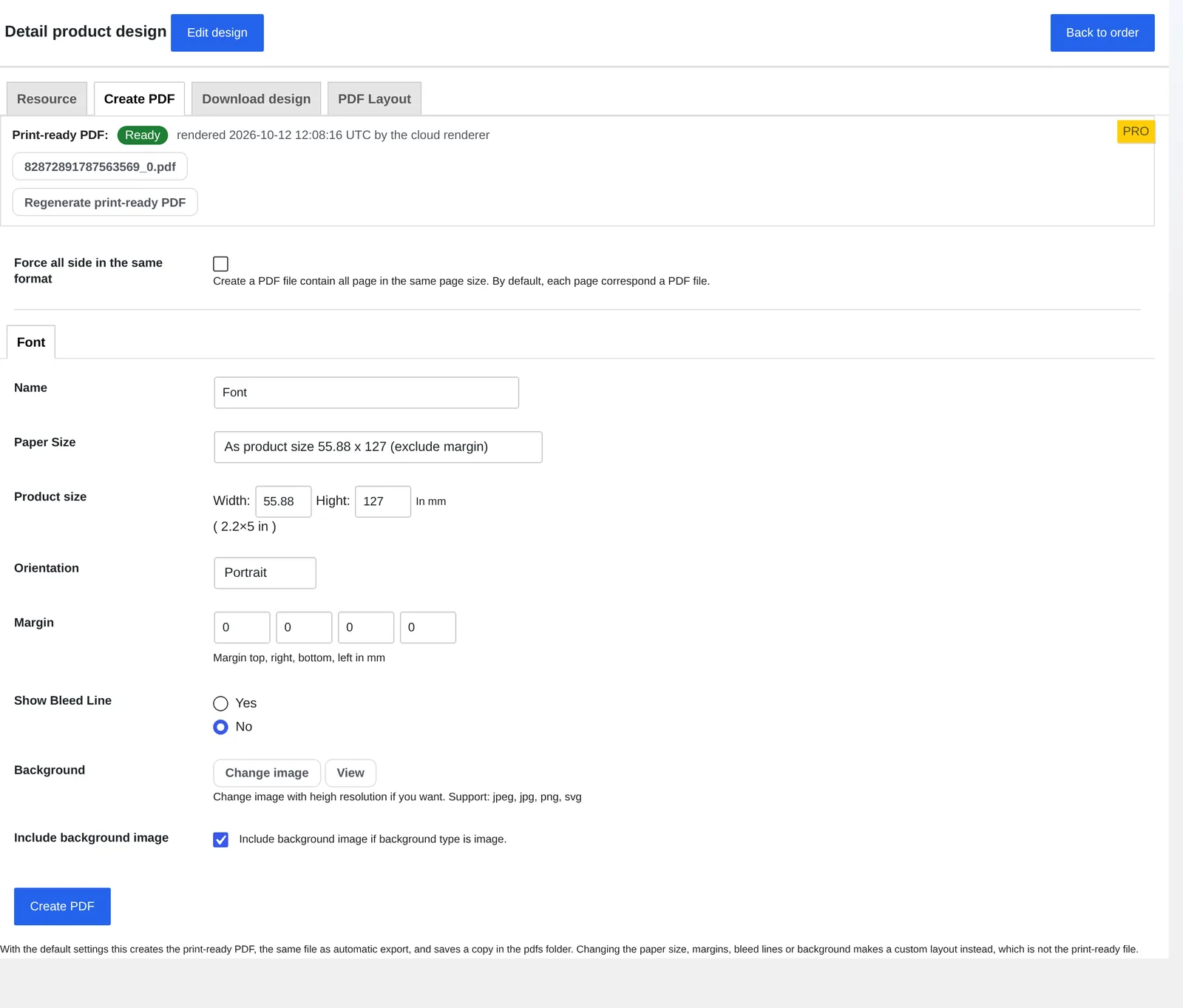

Create PDF tab showing print-ready PDF status, paper size, product size and bleed line settings
Create PDF with the default settings makes the same print-ready file as the automatic export.

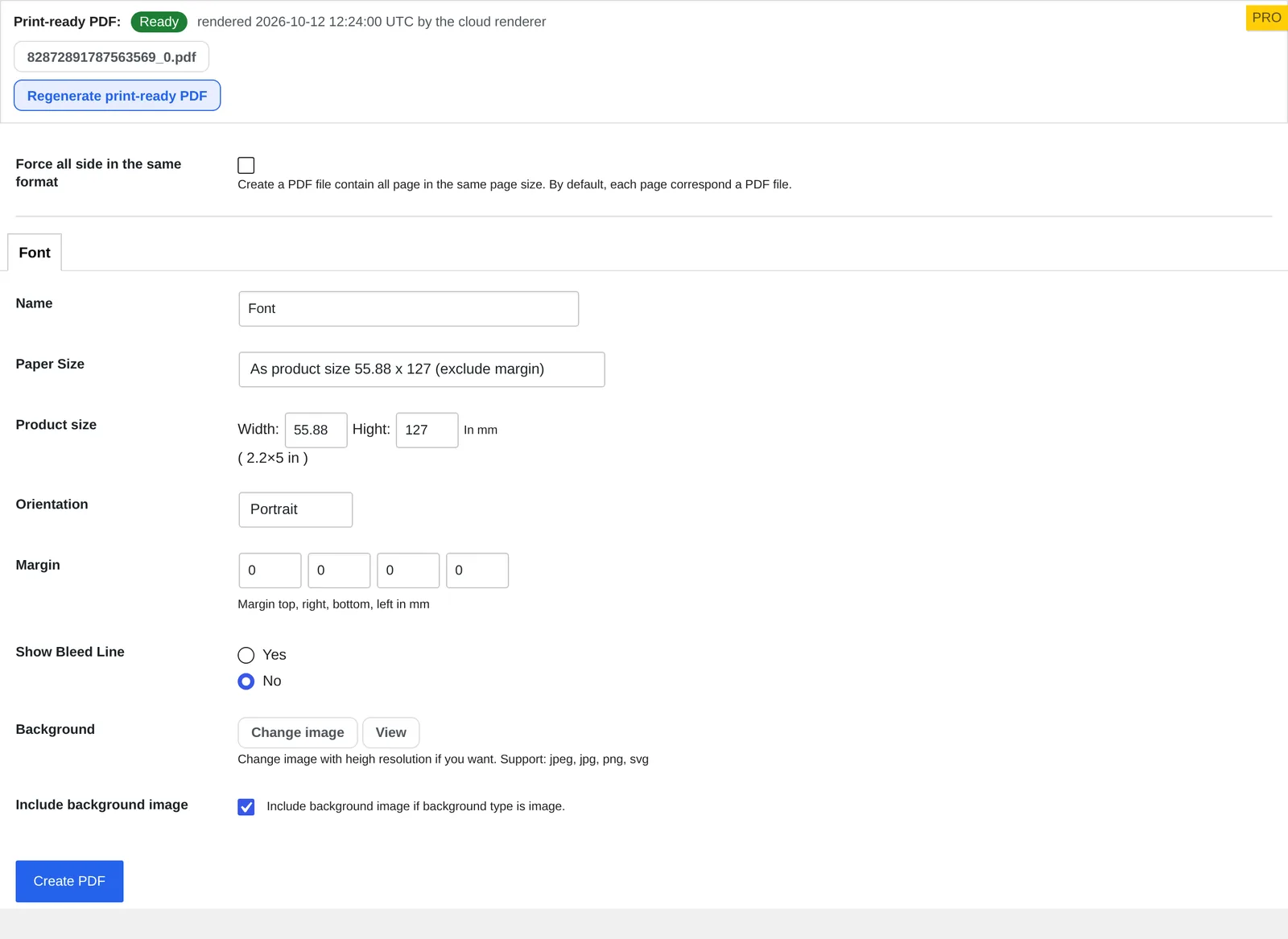

Print-ready PDF status reading Ready, rendered by the cloud renderer, with a Regenerate button
Print-ready status after Regenerate: Ready, rendered by the cloud renderer, with the file name shown.

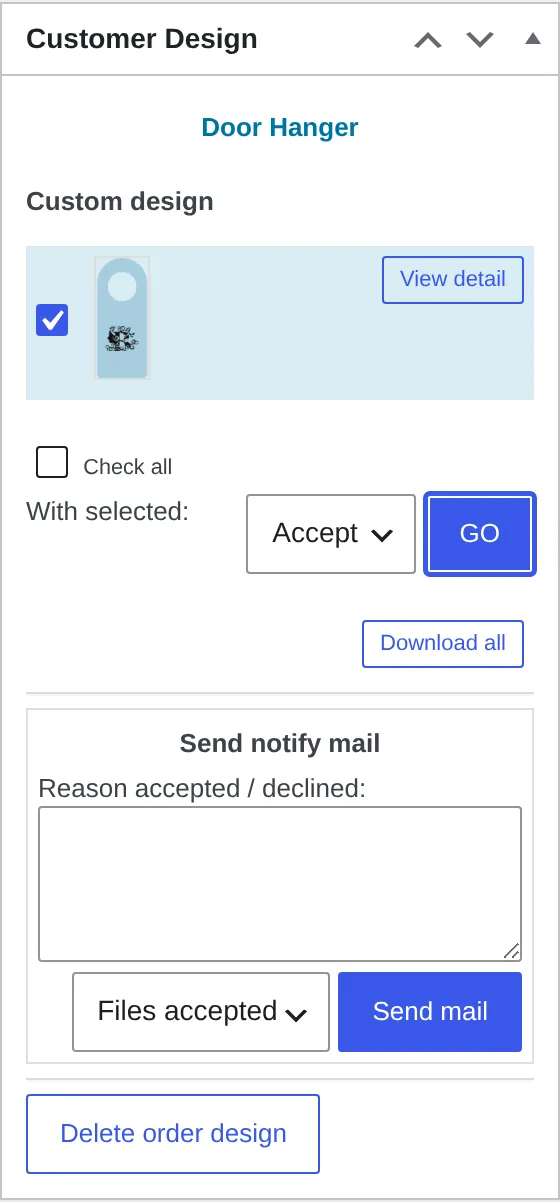

Customer Design approval box with the artwork accepted, checkbox and GO button shown in blue
The Customer Design box after Accept + GO: the artwork is approved, and further saves to it are refused server-side.

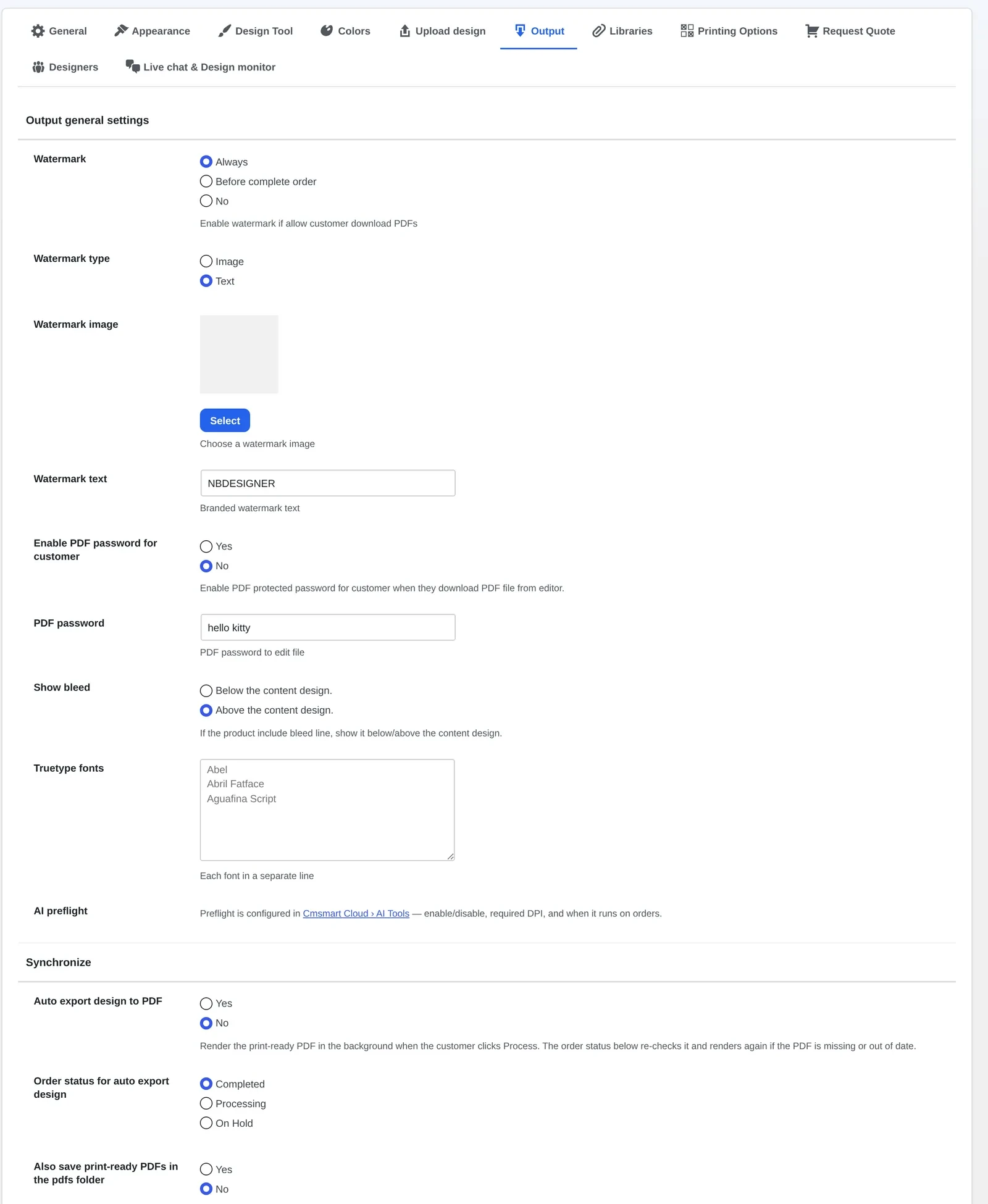

WooCommerce Cmsmart Output settings tab with watermark, bleed and auto-export to PDF options
Output settings: watermark, bleed line placement and the auto-export rule that drives the print-ready pipeline.

If you'd rather talk through your specific product range before touching settings, talk to an ecommerce expert about your setup.

How far can Cmsmart take this with custom development?

The 2.17 pipeline ends at a certified file per order line item; Cmsmart builds the custom development that connects that file to your production floor, your ERP or a batch of several orders at once, for stores that need more than the standard editor ships with.

None of the following are in the core plugin today — they are custom development Cmsmart builds for merchants whose production process needs more than a per-order PDF:

  • ERP / MIS hand-off. Cmsmart builds a connector that pushes each print-ready PDF and its order metadata straight into your MIS or production-floor system the moment it's certified, instead of a staff member opening the order to download it.
  • Gang-sheet imposition across orders. For DTF, sticker or label shops running many small items, Cmsmart builds batch tooling that imposes several customers' certified artwork onto one print-ready sheet.
  • Per-substrate ICC and ink-coverage profiles. Beyond the plugin's standard CMYK/ICC export, Cmsmart builds material-specific color profiles and pre-press ink-coverage reports for shops running multiple presses or substrates.
  • Multi-vendor production routing. For marketplace or multi-site setups, Cmsmart builds routing that sends each certified file to the right print partner automatically, based on product, region or vendor.

Delivery follows the same path for all of it: discovery, solution design, build in sprints, QA against your real product range, launch and ongoing support — see how Cmsmart runs a project on the ecommerce projects page, or read more about product designer customization as a standalone service.

Get a quote for a custom print-ready workflow

Why work with Cmsmart on your print-ready workflow?

Cmsmart has built and supported Cmsmart Product Designer (NBDesigner) since 2012 as a Netbase JSC division, with 6,300+ client projects and 500+ custom development engagements behind the plugin's roadmap — print-ready PDFs that match the order is the latest of those, not a one-off feature.

A few figures, as published: 6,300+ client projects and 4,600+ projects delivered since 2012, 1,800+ live stores running today, clients across 80+ countries, and a 4.2 rating from 404 reviews on Trustpilot.

From a verified five-star Trustpilot review (GB, 2026): "We have had the NB Designer plugin installed for three years and have experienced absolutely no problems during that time. It is wonderful to see their commitment to continuous development, with new features being added frequently to keep the software current and highly capable." — Web Developer, via Trustpilot.

See related tutorials on the same production workflow: print-ready PDF output settings and web-to-print API integrations for WooCommerce print shops, or start from the web-to-print solutions hub.

Frequently asked questions

Do I need to update to 2.17.0 to get automatic print-ready PDFs?

The automatic-export pipeline exists from 2.16.0; 2.17.0 is the update that makes the file match custom sizes correctly, adds the print-ready status with Regenerate, and locks approved artwork on the server. If you're on an older release, updating to 2.17.x is what closes the mismatched-file problem this article is about.

What happens if someone edits a design after the order is approved?

The save is refused server-side with a clear message, whichever link or tab it comes from. Where editing is still allowed, the order is flagged as changed, a declined proof returns to pending review, and a new print-ready render is queued automatically.

Does the cloud renderer cost extra, or can I render locally?

Cloud rendering is on by default and included; General → Render print PDFs in the cloud is now a visible toggle if you'd rather render on your own server instead.

What happens to the print file when a customer reorders?

Reordering no longer copies the old order's PDF and certificate across. It starts a fresh print file and, with automatic export on, queues a new render for the new order — so a reorder can't quietly ship yesterday's file.

Can Cmsmart connect our print-ready PDFs to our own production system?

Yes — that hand-off (MIS/ERP push, batch imposition, multi-vendor routing) is custom development Cmsmart builds for your specific production floor; the core plugin stops at a certified file per order.
